Bench-mounted yoke pipe vise

Bench-mounted yoke pipe vise

Category
  • Certificate: ISO
  • Standard: Refer to QB/T 1558.1
  • Feature: Heavy-duty, manual operated
  • Installation: Secured to the edge and top surface of a workbench
  • Surface: Red painted; customizable

Product Details

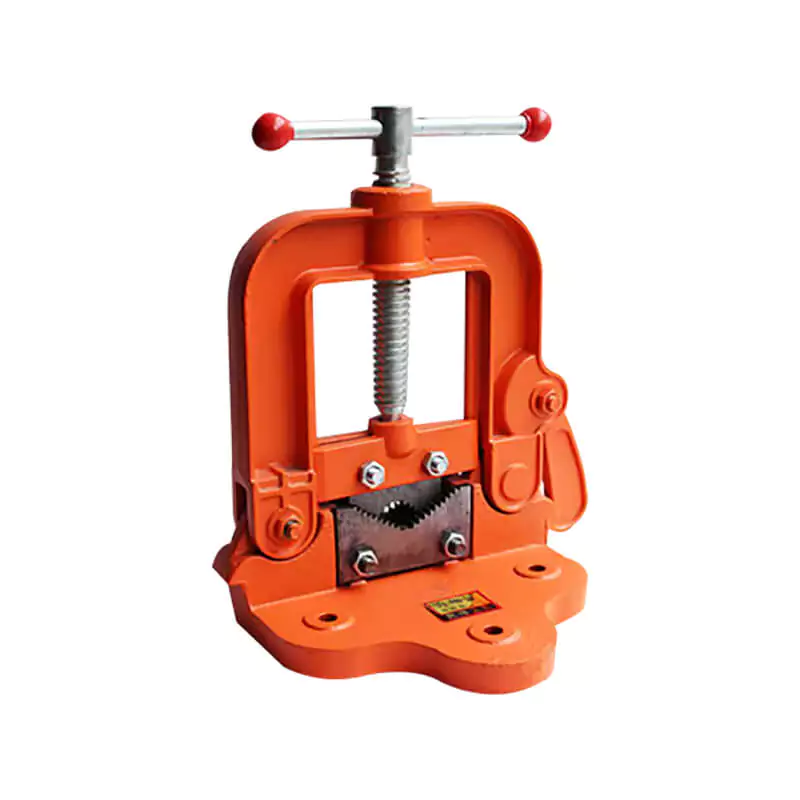

Bench-mounted yoke pipe vise is a heavy-duty, manually operated clamping tool mounted on the edge of a workbench. It is used to securely grip metal or plastic pipes during plumbing and fabrication tasks such as cutting, threading, or assembly. Its superior jaw design prevents pipe slippage and excessive movement, while the robust construction ensures overall stability, operational safety, and precision.

Available size

Recommended pipe size Jaw opening (mm) Dimension ( W x H, mm) Weight (kg) Ref. No.
1/2″ ~ 2-1/2″ / DN15 ~ DN65 10 ~ 90 178 x 220 5.2 P3501 (ISO)
1/2″ ~ 3-1/2″ / DN15 ~ DN90 15 ~ 115 210 x 270 6.4 P3502 (ISO)
1/2″ ~ 5″ / DN15 ~ DN125 15 ~ 165 270 x 325 10.7 P3503 (ISO)
1/2″ ~ 8″ / DN15 ~ DN200 15 ~ 225 390 x 410 17.5 P3504 (ISO)
