Pipe cutting machine from TPMC is designed to cut carbon steel, stainless steel, and cast iron pipes.

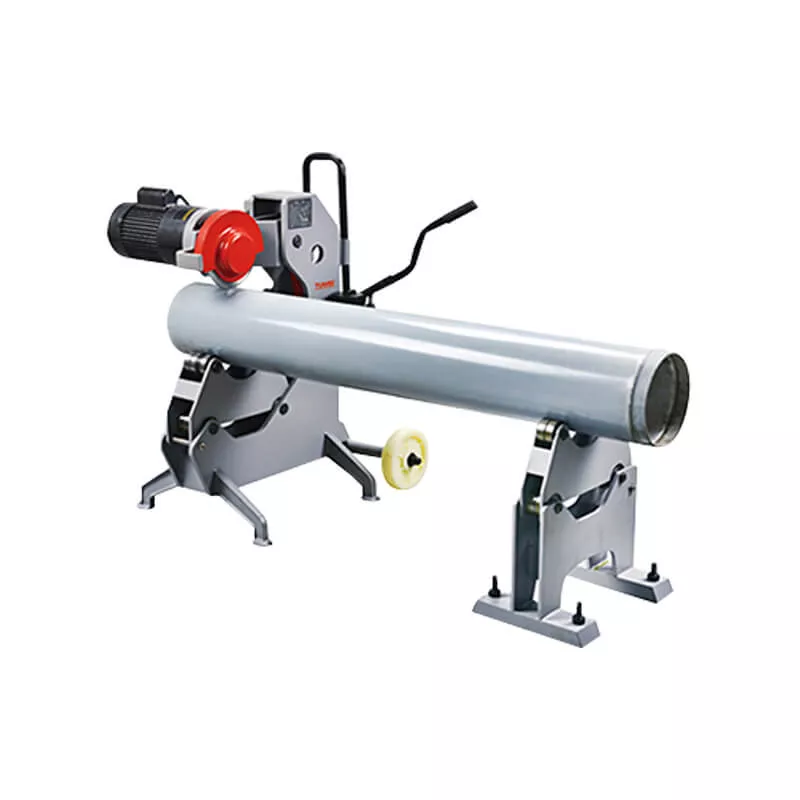

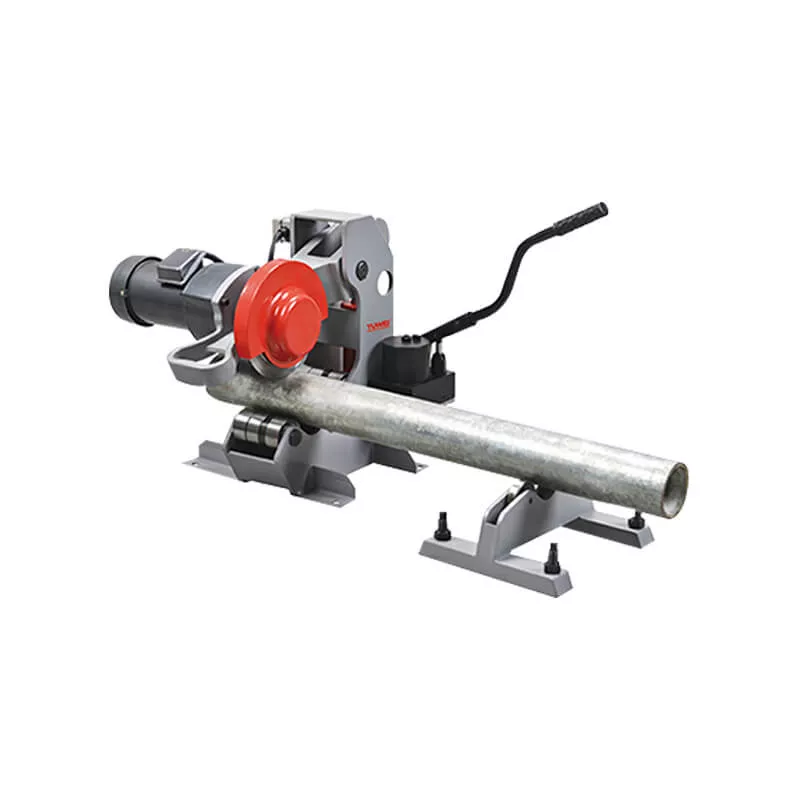

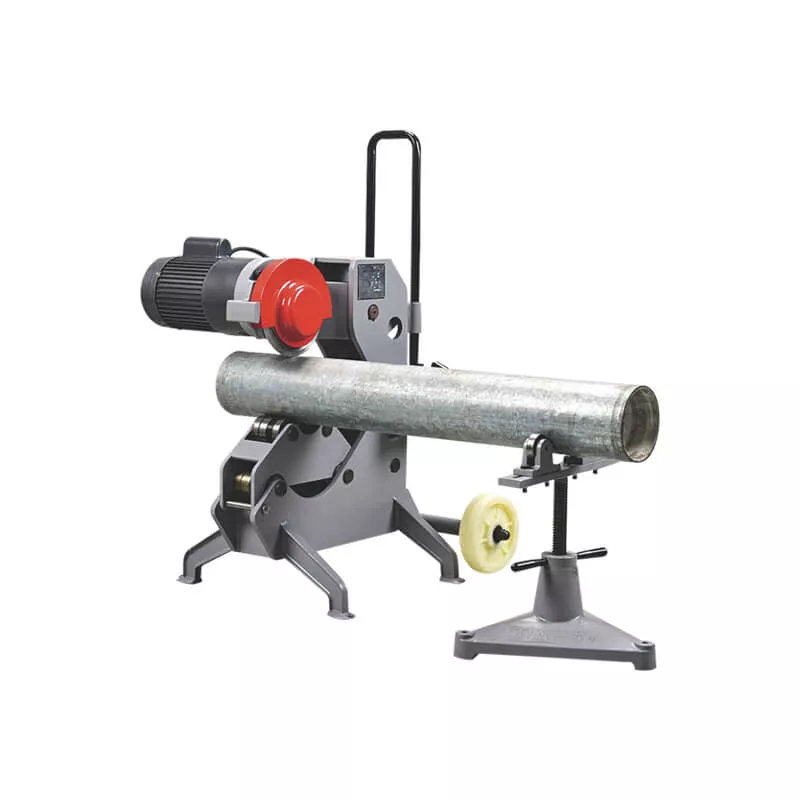

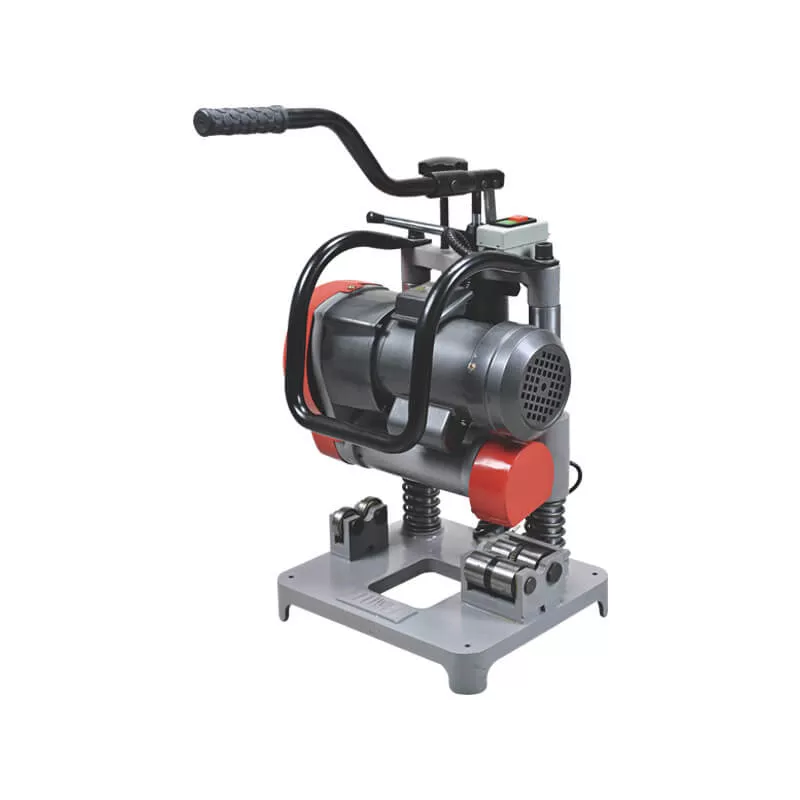

The electric stationary pipe cutting machine is powered by a high-efficiency reduction motor that directly drives the cutter, delivering precise radial feeding via a manual hydraulic system to produce a clean, square cut with minimal power loss.

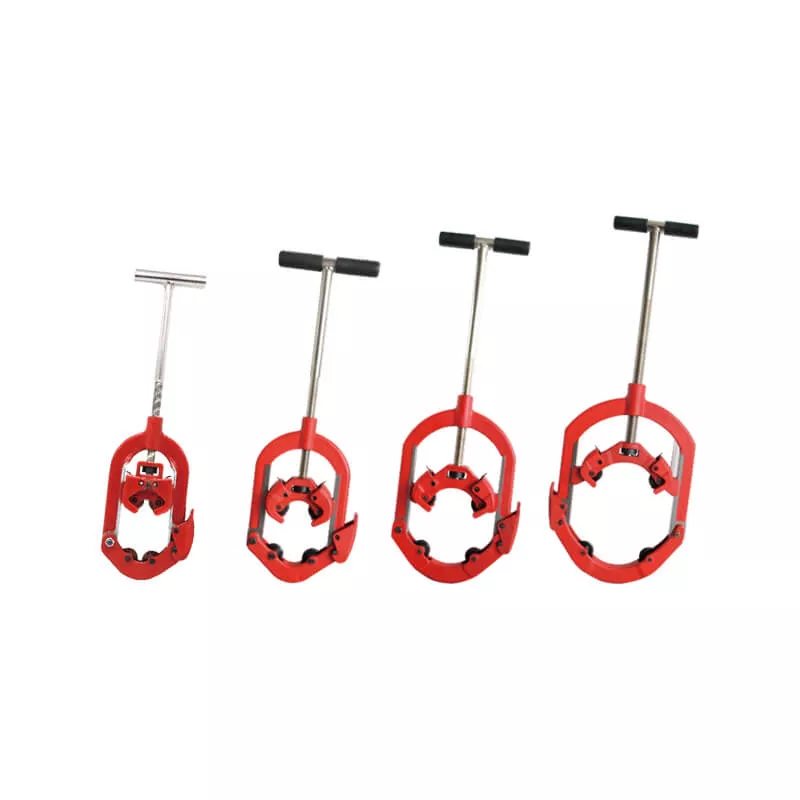

The manual hinged pipe cutter is ideal for tight spaces or jobsites without power. Lightweight and portable, it requires only a small handle swing to cut 1″ to 8″ pipe.
CE certified, our machine features a true cold cutting process and produces no sparks, dust, or metal chips, ensuring maximum safety and site cleanliness.
Available sizes
| Allowed pipe size (NPS) | Pipe thickness | Drive type | Motor | Ref. No. |
|---|---|---|---|---|
| 3/8″ ~ 2″ | Max SCH40 | Electrical stationary | 1P or 3P | P3402 (CE) |
| 2″ ~ 8″ | Max SCH40 | Electrical stationary | 1P or 3P | P3408 (CE) |
| 2″ ~ 12″ | Max SCH40 | Electrical stationary | 1P or 3P | P3412 (CE) |
| 6″ ~ 16″ | Max SCH40 | Electrical stationary | 1P or 3P | P3416 (CE) |
| 1″ ~ 2-1/2″ | Max SCH40 | Manual hinged | – | P3420 (ISO) |
| 2″ ~ 4″ | Max SCH40 | Manual hinged | – | P3424 (ISO) |
| 4″ ~ 6″ | Max SCH40 | Manual hinged | – | P3426 (ISO) |
| 6″ ~ 8″ | Max SCH40 | Manual hinged | – | P3428 (ISO) |
Note:
1. For 1P motors, available in 110/120/220/230/240 V, 50/60 Hz. Supplied with power cord plug (BS / NEMA / CN types available).
2. For 3P motors, available in 220/380/415/440 V, 50/60 Hz.
