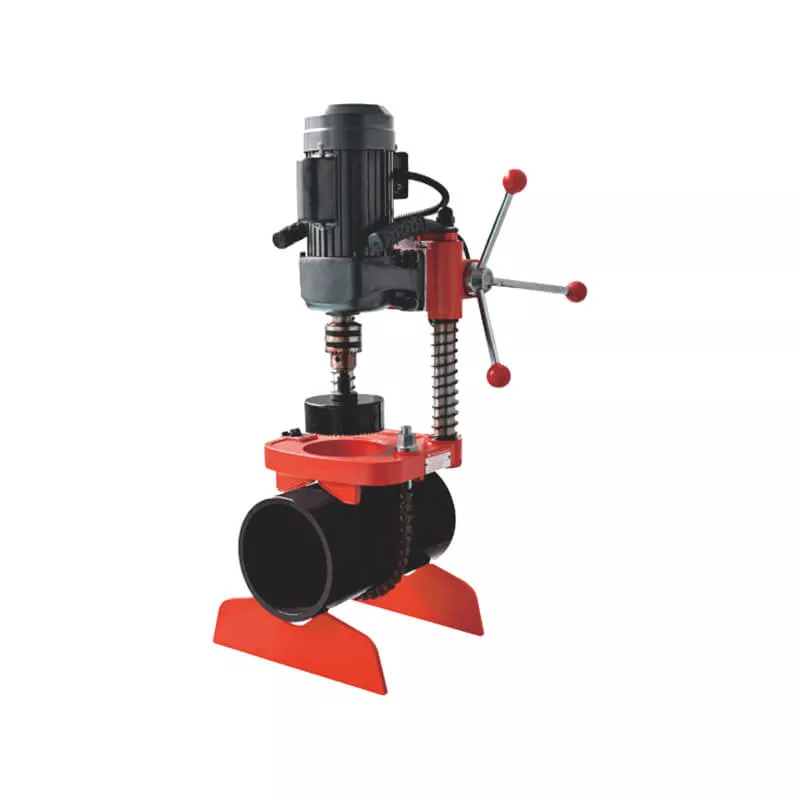

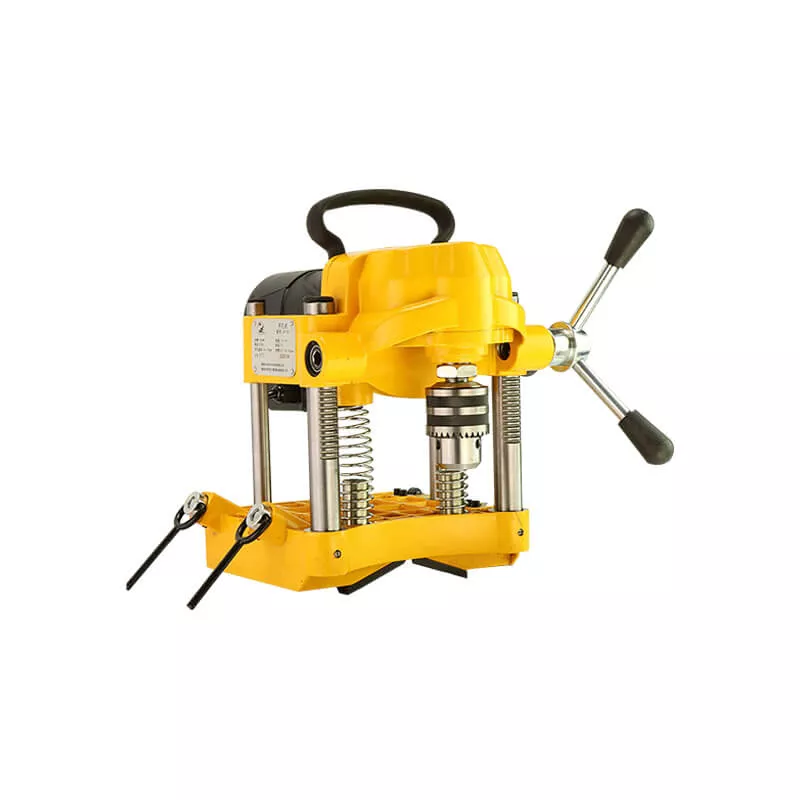

Hole cutting machine from TPMC is designed to cut branch connection holes on carbon steel, stainless steel, cast iron, and copper pipes. The machine is positioned using a V-shaped base for stable alignment, and the feed lever is manually advanced to cut the required hole.
Our machine is CE certified and powered by a high-performance gear reducing motor, delivering reliable operation with low noise.
Available sizes
| Allowed pipe size (NPS) | Pipe thickness | Drilling hole size | Motor | Ref. No. |
|---|---|---|---|---|
| 2″ ~ 8″ (10″) | Max SCH40 | 51 mm (25 ~ 114)* | 1P or 3P | P3208 (CE) |
| 1-1/4″ ~ 12″ | Max SCH40 | 51 mm (25 ~ 152)* | 1P, 110 or 220 VAC | P3212 (CE) |
Note:
1. * Standard accessories are for hole size 51 mm; optional hole size 25 ~ 114 mm, or 25 ~ 152 mm.
2. For 1P motors, available in 110/120/220/230/240 V, 50/60 Hz. Supplied with power cord plug (BS / NEMA / CN types available).
3. For 3P motors, available in 220/380/415/440 V, 50/60 Hz.
