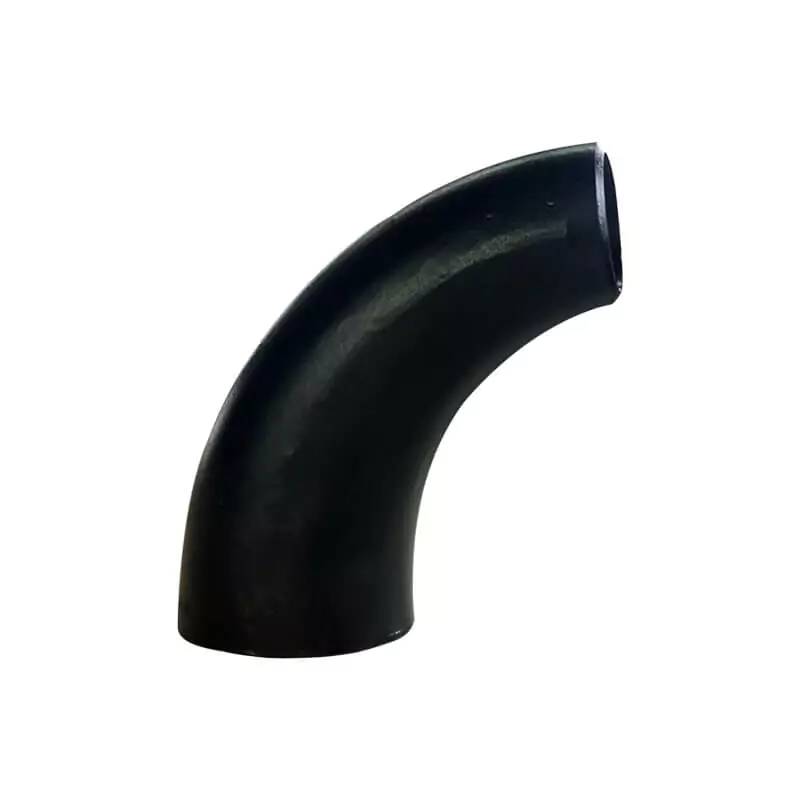

American butt weld 90° reducing elbow (Long radius) is used to connect two pipes by butt welding connection, so to make the pipeline turn 90-degree for changing the fluid flow direction and reducing the flow path from a larger inlet to a smaller outlet.
Available size
| Size | THK Sch10 (mm) | THK Sch40 (mm) | THK Sch80 (mm) | A (mm) | Ref. No. |
|---|---|---|---|---|---|
| 2″ x 1-1/2″ / DN50 x DN40 / 60.3mm x 48.3mm | 2.77 x 2.77 | 3.91 x 3.68 | 5.54 x 5.08 | 76 | N1401 |
| 2″ x 1-1/4″ / DN50 x DN32 / 60.3mm x 42.2mm | 2.77 x 2.77 | 3.91 x 3.56 | 5.54 x 4.85 | 76 | N1402 |
| 2″ x 1″ / DN50 x DN25 / 60.3mm x 33.4mm | 2.77 x 2.77 | 3.91 x 3.38 | 5.54 x 4.55 | 76 | N1403 |
| 2-1/2″ x 2″ / DN65 x DN50 / 73mm x 60.3mm | 3.05 x 2.77 | 5.16 x 3.91 | 7.01 x 5.54 | 95 | N1404 |
| 2-1/2″ x 1-1/2″ / DN65 x DN40 / 73mm x 48.3mm | 3.05 x 2.77 | 5.16 x 3.68 | 7.01 x 5.08 | 95 | N1405 |
| 2-1/2″ x 1-1/4″ / DN65 x DN32 / 73mm x 42.2mm | 3.05 x 2.77 | 5.16 x 3.56 | 7.01 x 4.85 | 95 | N1406 |
| 3″ x 2-1/2″ / DN80 x DN65 / 88.9mm x 73mm | 3.05 x 3.05 | 5.49 x 5.16 | 7.62 x 7.01 | 114 | N1407 |
| 3″ x 2″ / DN80 x DN50 / 88.9mm x 60.3mm | 3.05 x 2.77 | 5.49 x 3.91 | 7.62 x 5.54 | 114 | N1408 |
| 3″ x 1-1/2″ / DN80 x DN40 / 88.9mm x 48.3mm | 3.05 x 2.77 | 5.49 x 3.68 | 7.62 x 5.08 | 114 | N1409 |
| 4″ x 3″ / DN100 x DN80 / 114.3mm x 88.9mm | 3.05 x 3.05 | 6.02 x 5.49 | 8.56 x 7.62 | 152 | N1410 |
| 4″ x 2-1/2″ / DN100 x DN65 / 114.3mm x 73mm | 3.05 x 3.05 | 6.02 x 5.16 | 8.56 x 7.01 | 142 | N1411 |
| 4″ x 2″ / DN100 x DN50 / 114.3mm x 60.3mm | 3.05 x 2.77 | 6.02 x 3.91 | 8.56 x 5.54 | 142 | N1412 |
| 5″ x 4″ / DN125 x DN100 / 141.3mm x 114.3mm | 3.40 x 3.05 | 6.55 x 6.02 | 9.53 x 8.56 | 190 | N1413 |
| 5″ x 3″ / DN125 x DN80 / 141.3mm x 88.9mm | 3.40 x 3.05 | 6.55 x 5.49 | 9.53 x 7.62 | 190 | N1414 |
| 5″ x 2-1/2″ / DN125 x DN65 / 141.3mm x 73mm | 3.40 x 3.05 | 6.55 x 5.16 | 9.53 x 7.01 | 190 | N1415 |
Note: Please download our catalog for more available sizes.
