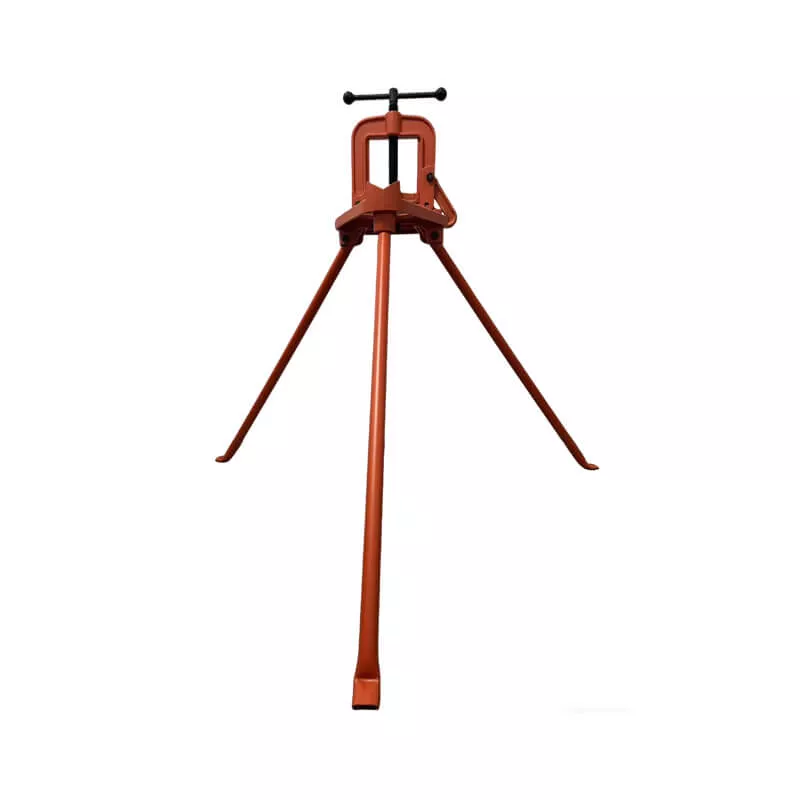

Tripod yoke pipe vise

Tripod yoke pipe vise

Category
  • Certificate: ISO
  • Standard: Refer to QB/T 1558.1
  • Feature: Heavy-duty, manual operated
  • Installation: Portable / self-supporting
  • Surface: Red painted; customizable

Product Details

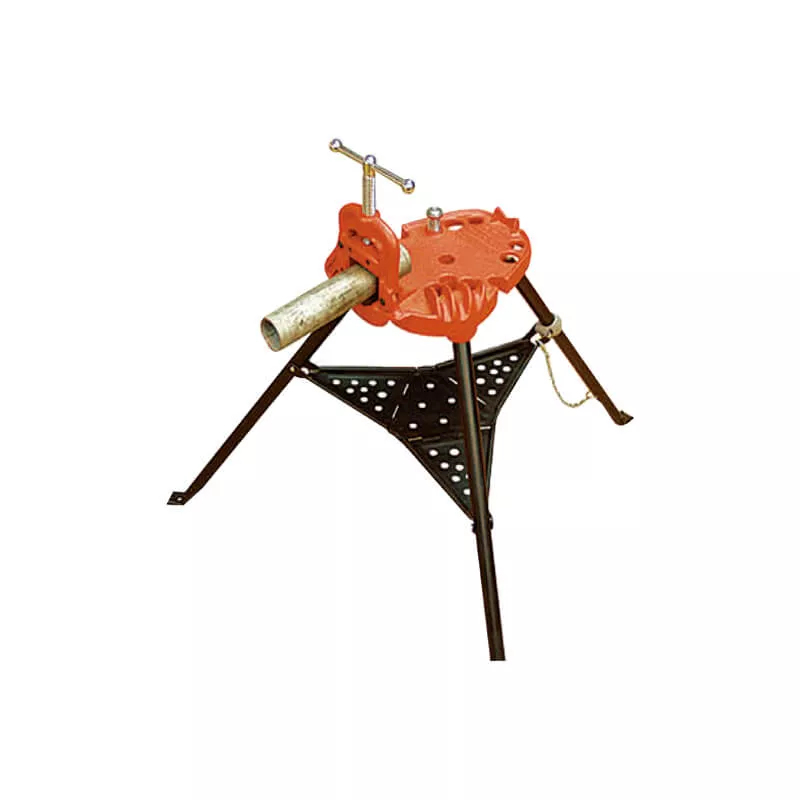

Tripod yoke pipe vise is a heavy-duty, manually operated clamping tool which features integral legs for self-stand, and a tool tray to keep parts secure and within reach. It is used to securely grip metal or plastic pipes during plumbing and fabrication tasks such as cutting, threading, or assembly. Its superior jaw design prevents pipe slippage and excessive movement, while the robust construction ensures overall stability, operational safety, and precision.

Available size

Recommended pipe size Construction Jaw opening (mm) Weight (kg) Ref. No.
1/2″ ~ 2-1/2″ / DN15 ~ DN65 With tripod 10 ~ 90 19 P3601 (ISO)
1/2″ ~ 3-1/2″ / DN15 ~ DN90 With tripod 15 ~ 115 23 P3602 (ISO)
1/2″ ~ 2-1/2″ / DN15 ~ DN65 With tripod + tray 10 ~ 90 21 P3603 (ISO)
