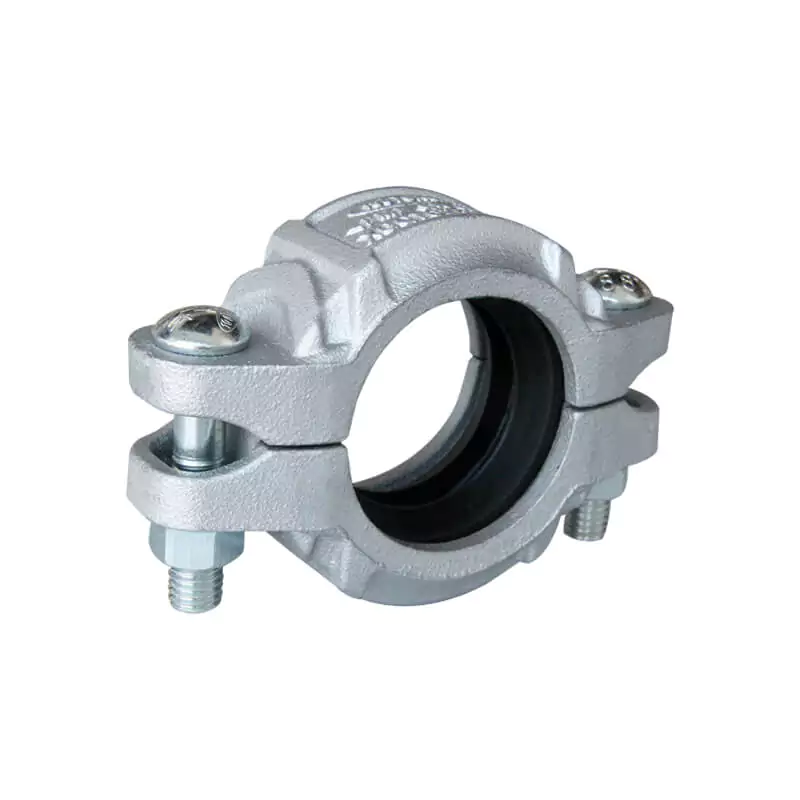

Heavy-duty flexible grooved coupling

Category Grooved couplings

Certificate: UL Listed / FM Approved
Standard: ANSI / UL 213
Housing: Ductile iron ASTM A536, 65-45-12
Bolt & nut: Carbon steel, detail as G92 ~ G96
Gasket: EPDM, nitrile, silicone rubber, etc.
Rated pressure: 500 psi (3.45 MPa)
Surface: Red painting / hot dip galvanized

Download Heavy-duty flexible grooved coupling

Product Details

Grooved coupling includes housing, gasket and fasteners to create a groove leak-tight structure. Heavy-duty flexible grooved coupling allows for controlled linear and angular movement, as well as provides higher working pressure.

Available size

Size	Bolting (n x bolt size), ANSI	Bolting (n x bolt size), EN	Ref. No.
2″ / DN50 / 60.3mm	2 – 1/2″ x 75	2 – M12 x 76	G5404
