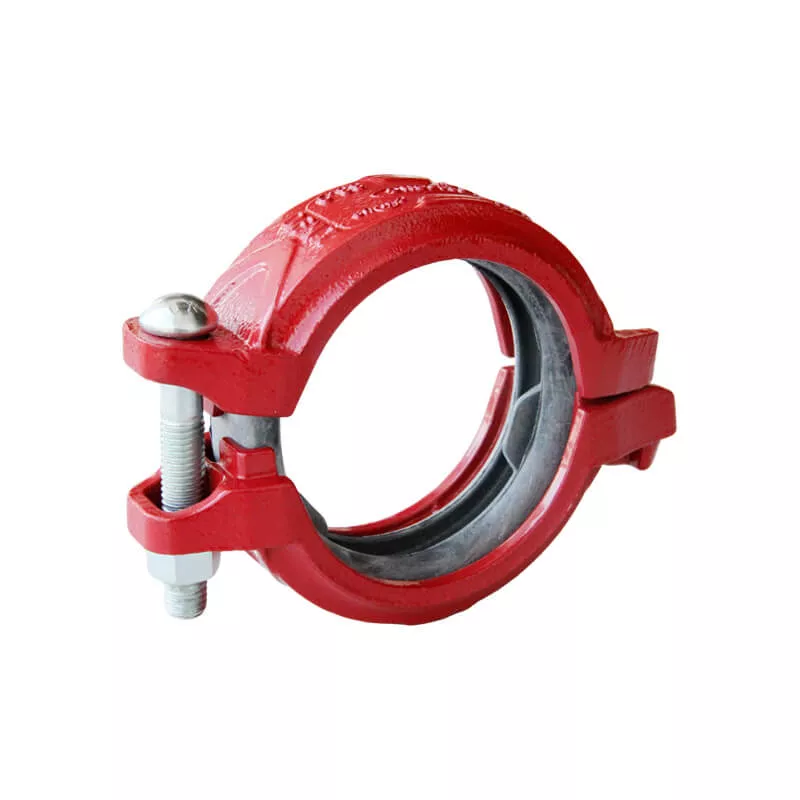

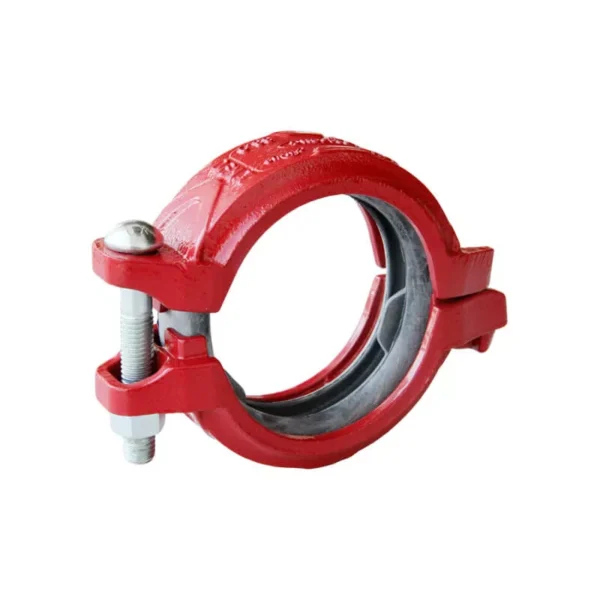

Grooved coupling includes housing, gasket and fasteners to create a groove leak-tight structure. Quikcoup one bolt rigid grooved coupling does not allow for movement through grip teeth in the housing, and it provides quicker installation with only one set of bolt and nut.
Available size (Source 1 with UL/FM)
| Size | Bolting (n x bolt size), ANSI | Bolting (n x bolt size), EN | Ref. No. |
|---|---|---|---|
| 1″ / DN25 / 33.7mm | 1 – 3/8″ x 55 | 1 – M10 x 55 | G5701 |
| 1-1/4″ / DN32 / 42.4mm | 1 – 3/8″ x 60 | 1 – M10 x 60 | G5702 |
| 1-1/2″ / DN40 / 48.3mm | 1 – 3/8″ x 60 | 1 – M10 x 60 | G5703 |
| 2″ / DN50 / 60.3mm | 1 – 3/8″ x 65 | 1 – M10 x 65 | G5704 |
| 2-1/2″ / DN65 / 73.0mm | 1 – 3/8″ x 70 | 1 – M10 x 70 | G5705 |
| 2-1/2″ / DN65 / 76.1mm | 1 – 3/8″ x 70 | 1 – M10 x 70 | G5706 |
| 3″ / DN80 / 88.9mm | 1 – 1/2″ x 80 | 1 – M12 x 80 | G5707 |
| 4″ / DN100 / 114.3mm | 1 – 1/2″ x 80 | 1 – M12 x 80 | G5708 |
| 5″ / DN125 / 139.7mm | 1 – 1/2″ x 85 | 1 – M12 x 85 | G5709 |
| 5″ / DN125 / 141.3mm | 1 – 1/2″ x 85 | 1 – M12 x 85 | G5710 |
| 6″ / DN150 / 165.1mm | 1 – 1/2″ x 90 | 1 – M12 x 90 | G5711 |
| 6″ / DN150 / 168.3mm | 1 – 1/2″ x 90 | 1 – M12 x 90 | G5712 |
