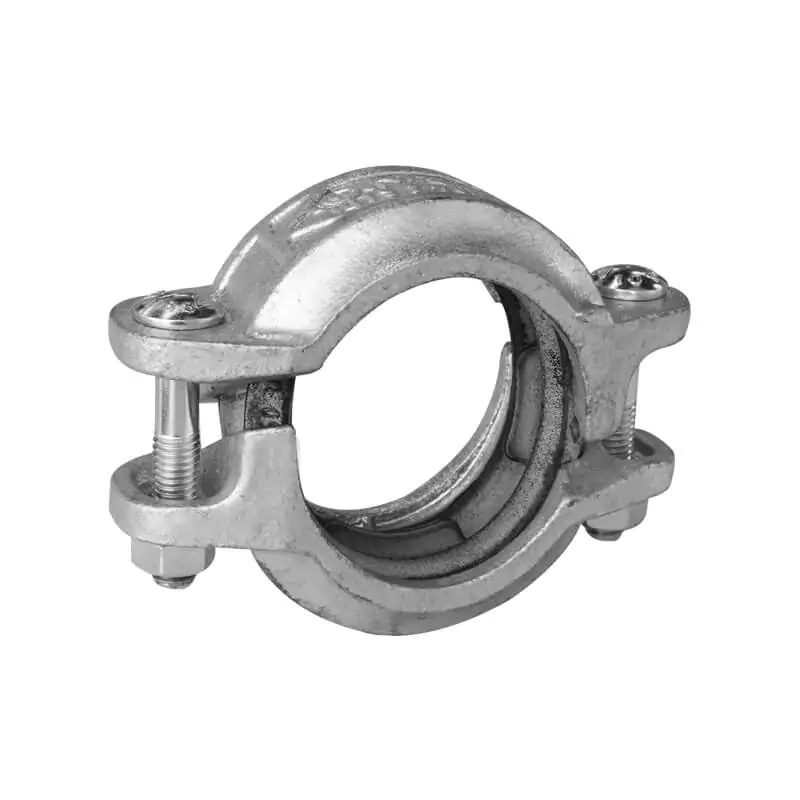

Quick rigid grooved coupling

Category Grooved couplings

Certificate: UL Listed / FM Approved
Standard: ANSI / UL 213
Housing: Ductile iron ASTM A536, 65-45-12
Bolt & nut: Carbon steel, detail as G92 ~ G96
Gasket: EPDM, nitrile, silicone rubber, etc.
Rated pressure: 300 ~ 500 psi
Surface: Red painting / hot dip galvanized

Product Details

Grooved coupling includes housing, gasket and fasteners to create a groove leak-tight structure. Quick rigid grooved coupling does not allow for movement through grip teeth in the housing, and it provides quicker installation.

Available size (Source 1 with UL/FM)

Size	Bolting (n x bolt size), ANSI	Bolting (n x bolt size), EN	Ref. No.
1-1/4″ / DN32 / 42.4mm	2 – 3/8″ x 60	2 – M10 x 57	G5602
1-1/2″ / DN40 / 48.3mm	2 – 3/8″ x 60	2 – M10 x 57	G5603
2″ / DN50 / 60.3mm	2 – 3/8″ x 60	2 – M10 x 57	G5604
2-1/2″ / DN65 / 73mm	2 – 3/8″ x 60	2 – M10 x 57	G5605
2-1/2″ / DN65 / 76.1mm	2 – 3/8″ x 60	2 – M10 x 57	G5606
3″ / DN80 / 88.9mm	2 – 3/8″ x 60	2 – M10 x 63	G5607
4″ / DN100 / 114.3mm	2 – 1/2″ x 65	2 – M12 x 70	G5608
5″ / DN125 / 139.7mm	2 – 1/2″ x 65	2 – M12 x 70	G5609
5″ / DN125 / 141.3mm	2 – 1/2″ x 65	2 – M12 x 70	G5610
6″ / DN150 / 165.1mm	2 – 1/2″ x 80	2 – M12 x 82	G5611
6″ / DN150 / 168.3mm	2 – 1/2″ x 80	2 – M12 x 82	G5612
8″ / DN200 / 219.1mm	2 – 5/8″ x 85	2 – M16 x 89	G5613
10″ / DN250 / 273mm	2 – 7/8″ x 6-1/2″	2 – M22 x 165	G5614
