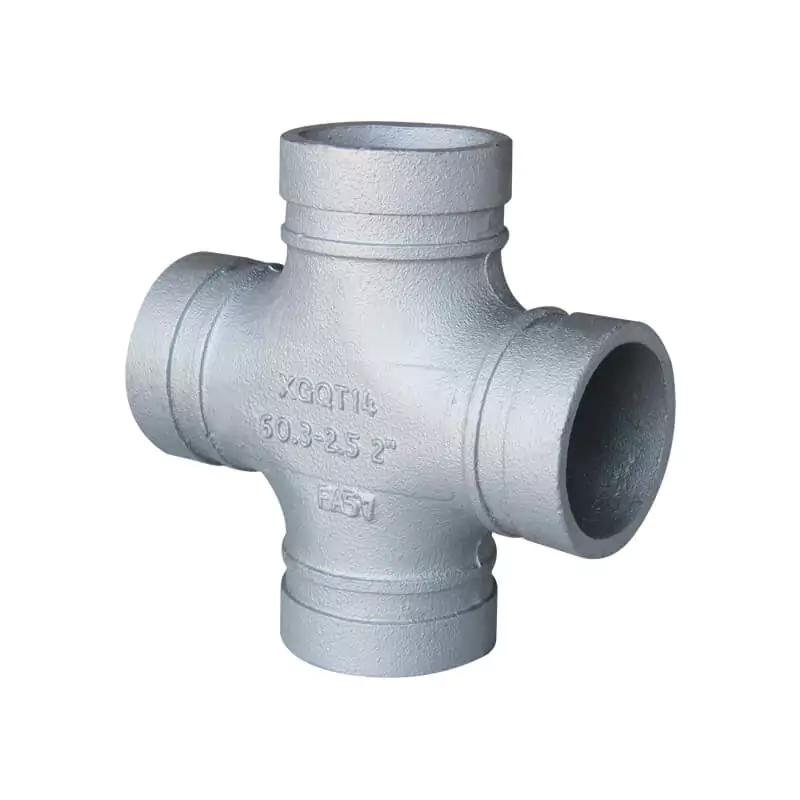

Grooved straight cross (Equal cross) has a cross shape to get its name. The branch outlet is the same size as the main outlet, and it is used to create two branch pipelines to 90 degree direction.
Available size
| Size | Center to end (mm) | Ref. No. |
|---|---|---|
| 1-1/4″ / DN32 / 42.4mm | 70 | G2501 (UL/FM) |
| 1-1/2″ / DN40 / 48.3mm | 70 | G2502 (UL/FM) |
| 2″ / DN50 / 60.3mm | 70 | G2503 (UL/FM) |
| 2-1/2″ / DN65 / 73.0mm | 76 | G2504 (UL/FM) |
| 2-1/2″ / DN65 / 76.1mm | 76 | G2505 (UL/FM) |
| 3″ / DN80 / 88.9mm | 86 | G2506 (UL/FM) |
| 4″ / DN100 / 114.3mm | 101 | G2507 (UL/FM) |
| 5″ / DN125 / 139.7mm | 124 | G2508 (UL/FM) |
| 5″ / DN125 / 141.3mm | 124 | G2509 (UL/FM) |
| 6″ / DN150 / 165.1mm | 140 | G2510 (UL/FM) |
| 6″ / DN150 / 168.3mm | 140 | G2511 (UL/FM) |
| 8″ / DN200 / 219.1mm | 175 | G2512 (UL/FM) |
| 10″ / DN250 / 273.0mm | 215 | G2513 (UL/FM) |
| 12″ / DN300 / 323.9mm | 254 | G2514 (UL/FM) |
