Grooved 90° drainage elbow

Grooved 90° drainage elbow

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Rated pressure: 300 ~ 500 psi
  • Surface: Red painting / hot dip galvanized

Product Details

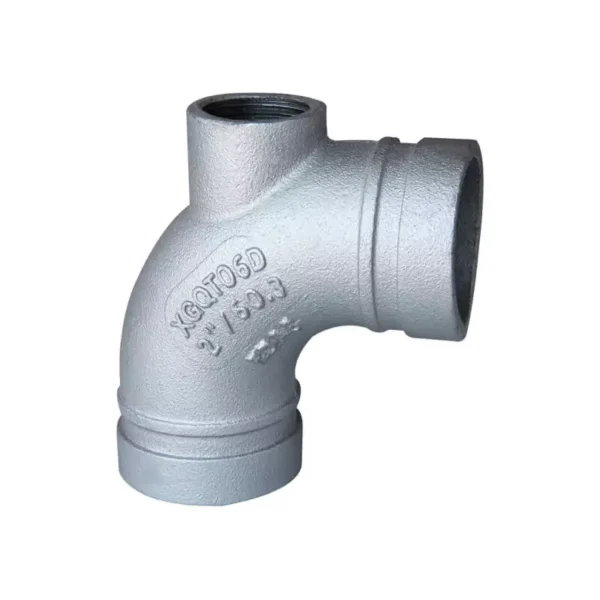

Grooved 90° drainage elbow is used to connect two pipes by groove connection, so to make the pipeline turn 90 degree for changing the fluid flow direction. And it feature an extra drainage outlet.

Available size

Size Center to end, L1 (mm) Center to end, L2 (mm) Center to end, L3 (mm) Ref. No.
2″ / DN50 / 60.3mm 83 65 37.5 G0204 (UL/FM)
2-1/2″ / DN65 / 73.0mm 95 70 43.5 G0205 (UL/FM)
2-1/2″ / DN65 / 76.1mm 95 70 45 G0206 (UL/FM)
3″ / DN80 / 88.9mm 108 70 53 G0207 (UL/FM)
4″ / DN100 / 114.3mm 127 70 66 G0208 (UL/FM)
5″ / DN125 / 139.7mm 140 70 78.5 G0209 (ISO)
6″ / DN150 / 165.1mm 165 70 91 G0211 (UL/FM)
6″ / DN150 / 168.3mm 165 70 92.5 G0212 (UL/FM)
8″ / DN200 / 219.1mm 197 70 116 G0213 (UL/FM)

Ask For A Quick Quote
