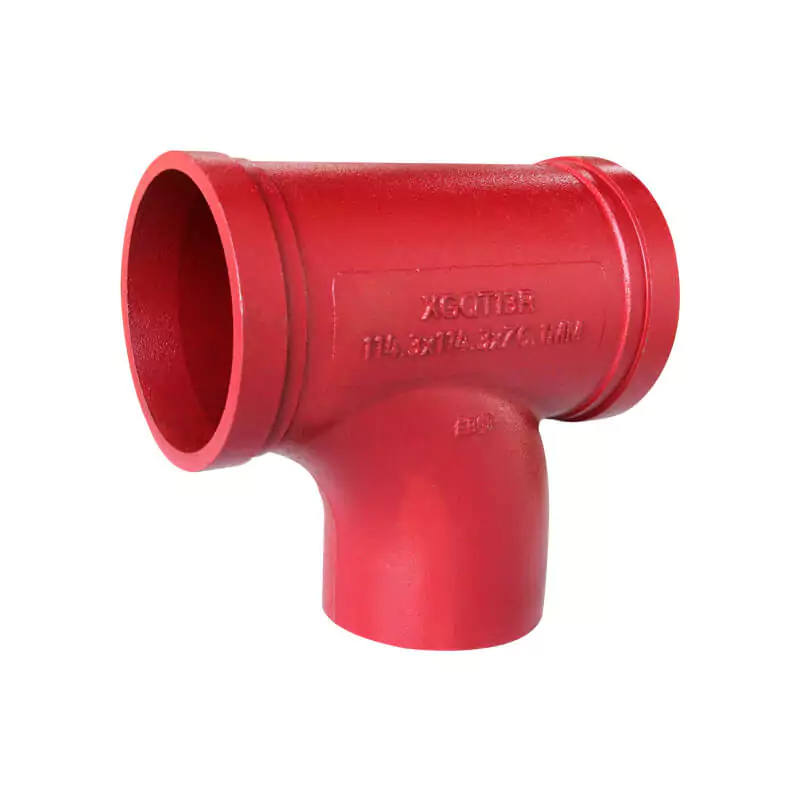

Grooved reducing tee wye

Grooved reducing tee wye

Category
  • Certificate: FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Rated pressure: 300 ~ 500 psi
  • Surface: Black, red painting / hot dip galvanized

Product Details

Grooved reducing tee wye has a Y shape to get its name. The branch outlet has a smaller size than the main outlet, and it is used to create a branch pipeline to 45 degree direction.

Available size

Size (Inch / DN / mm) Center to end (mm), L1 Center to end (mm), L2 Ref. No.
4″ x 4″ x 2-1/2″ / 100 x 100 x 65 / 114.3 x 114.3 x 76.1 96 134.5 G1901 (FM)
