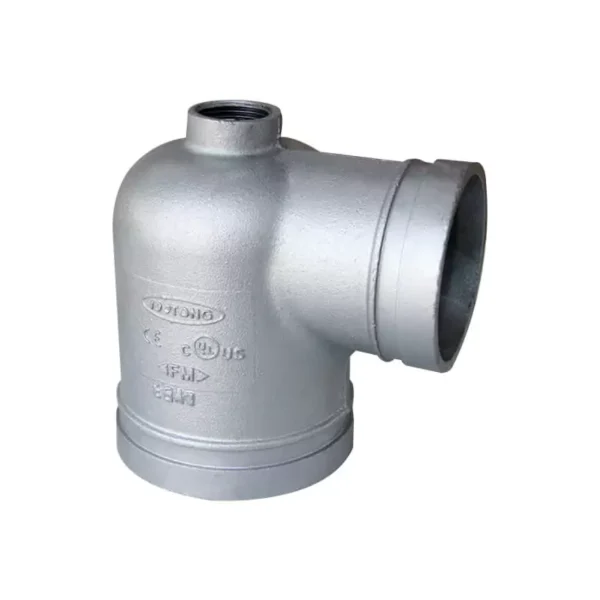

Grooved 90° fire hydrant elbow is used to connect two pipes of different size by grooved connection, so to make the pipeline turn 90 degree for changing the fluid flow direction. And it features an extra threaded outlet size 1″ in the body.
Available size
| Size (Inch / DN / mm) | Center to end (mm), L1 | Center to end (mm), L2 | Threaded outlet | Ref. No. |
|---|---|---|---|---|
| 4″ x 3″ / 100 x 80 / 114.3 x 88.9 | 106 | 106 | 1″, NPT or BSPT | G0301 (UL/FM) |
| 6″ x 3″ / 1050 x 80 / 165.1 x 88.9 | 130.5 | 130.5 | 1″, NPT or BSPT | G0302 (FM) |
