EN / BS butt weld 90° reducing elbow

EN / BS butt weld 90° reducing elbow

  • Certificate: ISO
  • Standard: EN 10253-1 / EN 10253-2 / EN 10253-3
  • Material: Carbon steel S235 / P235TR2 SS equivalent to WP304 / WP316L
  • Type: Long radius, 3D, R=1.5D
  • W. pressure: Equal to same straight pipe
  • Surface: Black painting / hot dip galvanized, Pickling white, etc.

Product Details

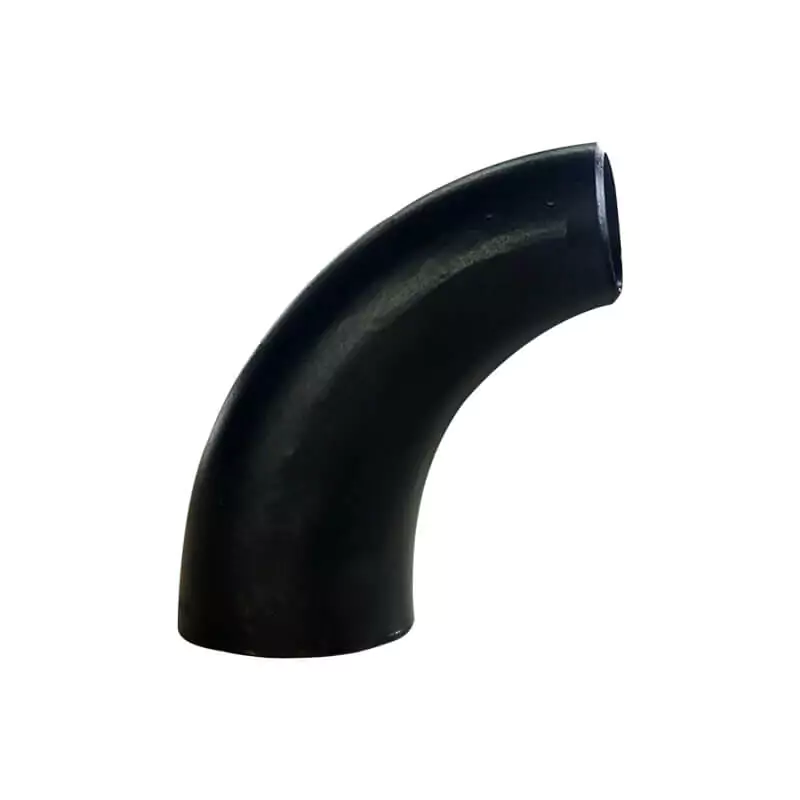

EN / BS butt weld 90° reducing elbow (Long radius) is used to connect two pipes by butt welding connection, so to make the pipeline turn 90-degree for changing the fluid flow direction and reducing the flow path from a larger inlet to a smaller outlet.

Available size

Size A (mm) Ref. No.
2″ x 1-1/2″ / DN50 x DN40 / 60.3mm x 48.3mm 76 NE1101
2″ x 1-1/4″ / DN50 x DN32 / 60.3mm x 42.4mm 76 NE1102
2″x 1″ / DN50 x DN25 / 60.3mm x 33.7mm 76 NE1103
2-1/2″ x 2″ / DN65 x DN50 / 76.1mm x 60.3mm 95 NE1104
2-1/2″ x 1-1/2″ / DN65 x DN40 / 76.1mm x 48.3mm 95 NE1105
2-1/2″ x 1-1/4″ / DN65 x DN32 / 76.1mm x 42.2mm 95 NE1106
3″ x 2-1/2″ / DN80 x DN65 / 88.9mm x 76.1mm 114 NE1107
3″ x 2″ / DN80 x DN50 / 88.9mm x 60.3mm 114 NE1108
3″ x 1-1/2″ / DN80 x DN40 / 88.9mm x 48.3mm 114 NE1109
4″ x 3″ / DN100 x DN80 / 114.3mm x 88.9mm 152 NE1110
4″ x 2-1/2″ / DN100 x DN65 / 114.3mm x 76.1mm 142 NE1111
4″ x 2″ / DN100 x DN50 / 114.3mm x 60.3mm 142 NE1112
5″ x 4″ / DN125 x DN100 / 141.3mm x 114.3mm 190 NE1113
5″ x 3″ / DN125 x DN80 / 141.3mm x 88.9mm 190 NE1114
5″ x 2-1/2″ / DN125 x DN65 / 141.3mm x 76.1mm 190 NE1115

Note:
1. The thickness of above form refers to large end OD, and thickness of small end OD is different.
2. For size DN 150, it is also available with 165.1 mm as per EN 10255.
