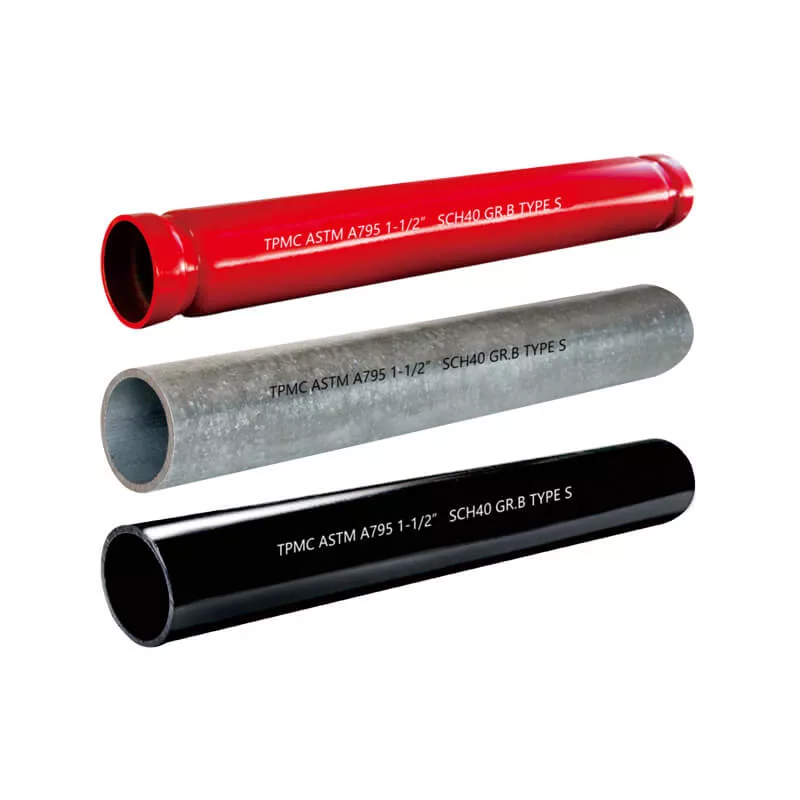

ASTM A795 seamless steel pipe from TPMC is manufactured by piercing solid billets using the advanced PQF process, ensuring a uniform, seamless structure with exceptional strength and reliability.
It features tight dimensional tolerances to ensure excellent compatibility with precision fittings and grooved connections.
Available in SCH10 for cost-effective branch lines and SCH40 for mains, risers, or high-durability needs, our TPMC pipe provides reliable performance in wet, dry, deluge, and preaction fire protection systems.
Available sizes for Schedule 10 pipe (Light-weight)
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa, min) | Ref. No. |
|---|---|---|---|---|
| 3/4″ / DN20 / 26.7 mm | SCH10 / 2.11 mm | 1.28 | 4.8 | P2202-SCH10 (ISO) |
| 1″ / DN25 / 33.4 mm | SCH10 / 2.77 mm | 2.09 | 4.8 | P2203-SCH10 (ISO) |
| 1-1/4″ / DN32 / 42.2 mm | SCH10 / 2.77 mm | 2.69 | 6.9 | P2204-SCH10 (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | SCH10 / 2.77 mm | 3.11 | 6.9 | P2205-SCH10 (ISO) |
| 2″ / DN50 / 60.3 mm | SCH10 / 2.77 mm | 3.93 | 6.9 | P2206-SCH10 (ISO) |
| 2-1/2″ / DN65 / 73.0 mm | SCH10 / 3.05 mm | 5.26 | 6.9 | P2207-SCH10 (ISO) |
| 3″ / DN80 / 88.9 mm | SCH10 / 3.05 mm | 6.46 | 6.9 | P2208-SCH10 (ISO) |
| 4″ / DN100 / 114.3 mm | SCH10 / 3.05 mm | 8.37 | 8.3 | P2209-SCH10 (ISO) |
| 5″ / DN125 / 141.3 mm | SCH10 / 3.40 mm | 11.58 | 8.3 | P2210-SCH10 (ISO) |
| 6″ / DN150 / 168.3 mm | SCH10 / 3.40 mm | 13.85 | 6.9 | P2211-SCH10 (ISO) |
| 8″ / DN200 / 219.1 mm | – / 4.78 mm | 25.26 | 5.5 | P2212-SCHXX (ISO) |
| 10″ / DN250 / 273.0 mm | – / 4.78 mm | 31.62 | 4.8 | P2213-SCHXX (ISO) |
Note: For NPS 8″ and NPS 10″, the nominal wall thickness tabulated in ASTM A795-2021 is 4.78 mm, which differs from ASME B36.10-2022 SCH10 (NPS 8″: 3.76 mm; NPS 10″: 4.19 mm). A795 uses a custom/engineered thickness for these sizes.
Available sizes for Schedule 40 pipe (Standard-weight)
| Outside diameter | Wall thickness | Weight (kg/m) | Test pressure (MPa, min) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | SCH40 / 2.77 mm | 1.27 | 4.8 | P2201-SCH40 (ISO) |
| 3/4″ / DN20 / 26.7 mm | SCH40 / 2.87 mm | 1.69 | 4.8 | P2202-SCH40 (ISO) |
| 1″ / DN25 / 33.4 mm | SCH40 / 3.38 mm | 2.5 | 4.8 | P2203-SCH40 (ISO) |
| 1-1/4″ / DN32 / 42.2 mm | SCH40 / 3.56 mm | 3.39 | 6.9 | P2204-SCH40 (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | SCH40 / 3.68 mm | 4.05 | 6.9 | P2205-SCH40 (ISO) |
| 2″ / DN50 / 60.3 mm | SCH40 / 3.91 mm | 5.45 | 6.9 | P2206-SCH40 (ISO) |
| 2-1/2″ / DN65 / 73.0 mm | SCH40 / 5.16 mm | 8.64 | 6.9 | P2207-SCH40 (ISO) |
| 3″ / DN80 / 88.9 mm | SCH40 / 5.49 mm | 11.29 | 6.9 | P2208-SCH40 (ISO) |
| 4″ / DN100 / 114.3 mm | SCH40 / 6.02 mm | 16.09 | 8.3 | P2209-SCH40 (ISO) |
| 5″ / DN125 / 141.3 mm | SCH40 / 6.55 mm | 21.79 | 8.3 | P2210-SCH40 (ISO) |
| 6″ / DN150 / 168.3 mm | SCH40 / 7.11 mm | 28.29 | 8.3 | P2211-SCH40 (ISO) |
| 8″ / DN200 / 219.1 mm | SCH30 / 7.04 mm | 36.82 | 8.3 | P2212-SCH30 (ISO) |
| 10″ / DN250 / 273.1 mm | SCH30 / 7.80 mm | 51.05 | 6.9 | P2213-SCH30 (ISO) |
Note: For NPS 8″ and NPS 10″, the nominal wall thickness tabulated in ASTM A795-2021 aligns with ASME B36.10-2022 SCH30 (not SCH40: NPS 8″: 8.18 mm; NPS 10″: 9.27 mm).
