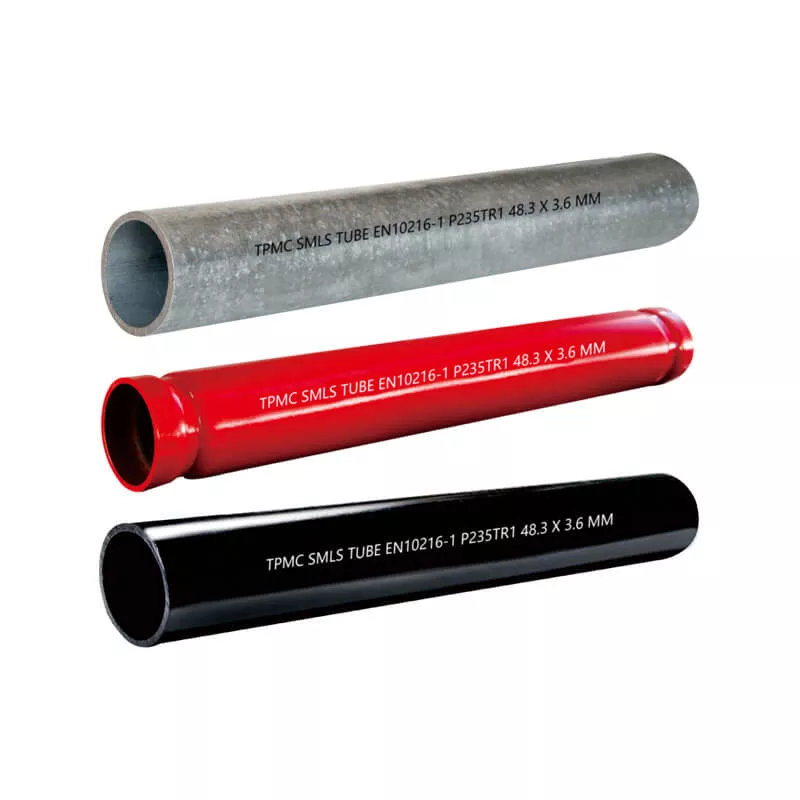

EN 10216-1 seamless steel tube from TPMC is manufactured by piercing solid billets using the advanced PQF process, ensuring a uniform, seamless structure with exceptional strength and reliability.
Designed for pressure applications, the tube is ideal for welding or threading and suitable for conveying fluids such as water, gas, and air at room temperature.
Available sizes for Medium series tube
| Outside diameter | Selected thickness (mm) | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | 2.6 | 1.20 | 7.0 | P2701-M (ISO) |
| 3/4″ / DN20 / 26.9 mm | 2.6 | 1.56 | 7.0 | P2702-M (ISO) |
| 1″ / DN25 / 33.7 mm | 3.2 | 2.41 | 7.0 | P2703-M (ISO) |
| 1-1/4″ / DN32 / 42.4 mm | 3.2 | 3.09 | 7.0 | P2704-M (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | 3.2 | 3.56 | 7.0 | P2705-M (ISO) |
| 2″ / DN50 / 60.3 mm | 3.6 | 5.03 | 7.0 | P2706-M (ISO) |
| 2-1/2″ / DN65 / 76.1 mm | 3.6 | 6.44 | 7.0 | P2707-M (ISO) |
| 3″ / DN80 / 88.9 mm | 4.0 | 8.38 | 7.0 | P2708-M (ISO) |
| 4″ / DN100 / 114.3 mm | 4.5 | 12.19 | 7.0 | P2709-M (ISO) |
| 5″ / DN125 / 139.7 mm | 5.0 | 16.61 | 7.0 | P2710-M (ISO) |
| 6″ / DN150 / 168.3 mm | 5.0 | 20.14 | 7.0 | P2712-M (ISO) |
| 8″ / DN200 / 219.1 mm | 5.6 | 29.49 | 7.0 | P2713-M (ISO) |
| 10″ / DN250 / 273.0 mm | 5.6 | 36.93 | 6.7 | P2714-M (ISO) |
| 12″ / DN300 / 323.9 mm | 5.6 | 43.96 | 5.7 | P2715-M (ISO) |
Note: For more available sizes, please download the complete catalog (PDF).
Available sizes for Heavy series tube
| Outside diameter | Selected thickness (mm) | Weight (kg/m) | Test pressure (MPa) | Ref. No. |
|---|---|---|---|---|
| 1/2″ / DN15 / 21.3 mm | 2.6 | 1.20 | 7.0 | P2701-H (ISO) |
| 3/4″ / DN20 / 26.9 mm | 2.6 | 1.56 | 7.0 | P2702-H (ISO) |
| 1″ / DN25 / 33.7 mm | 4.0 | 2.93 | 7.0 | P2703-H (ISO) |
| 1-1/4″ / DN32 / 42.4 mm | 4.0 | 3.79 | 7.0 | P2704-H (ISO) |
| 1-1/2″ / DN40 / 48.3 mm | 4.0 | 4.37 | 7.0 | P2705-H (ISO) |
| 2″ / DN50 / 60.3 mm | 4.5 | 6.19 | 7.0 | P2706-H (ISO) |
| 2-1/2″ / DN65 / 76.1 mm | 4.5 | 7.95 | 7.0 | P2707-H (ISO) |
| 3″ / DN80 / 88.9 mm | 5.0 | 10.35 | 7.0 | P2708-H (ISO) |
| 4″ / DN100 / 114.3 mm | 5.4 | 14.50 | 7.0 | P2709-H (ISO) |
| 5″ / DN125 / 139.7 mm | 5.4 | 17.89 | 7.0 | P2710-H (ISO) |
| 6″ / DN150 / 168.3 mm | 7.1 | 28.23 | 7.0 | P2712-H (ISO) |
| 8″ / DN200 / 219.1 mm | 8.0 | 41.65 | 7.0 | P2713-H (ISO) |
| 10″ / DN250 / 273.0 mm | 8.8 | 57.34 | 7.0 | P2714-H (ISO) |
| 12″ / DN300 / 323.9 mm | 10.0 | 77.41 | 7.0 | P2715-H (ISO) |
Note: For more available sizes, please download the complete catalog (PDF).
