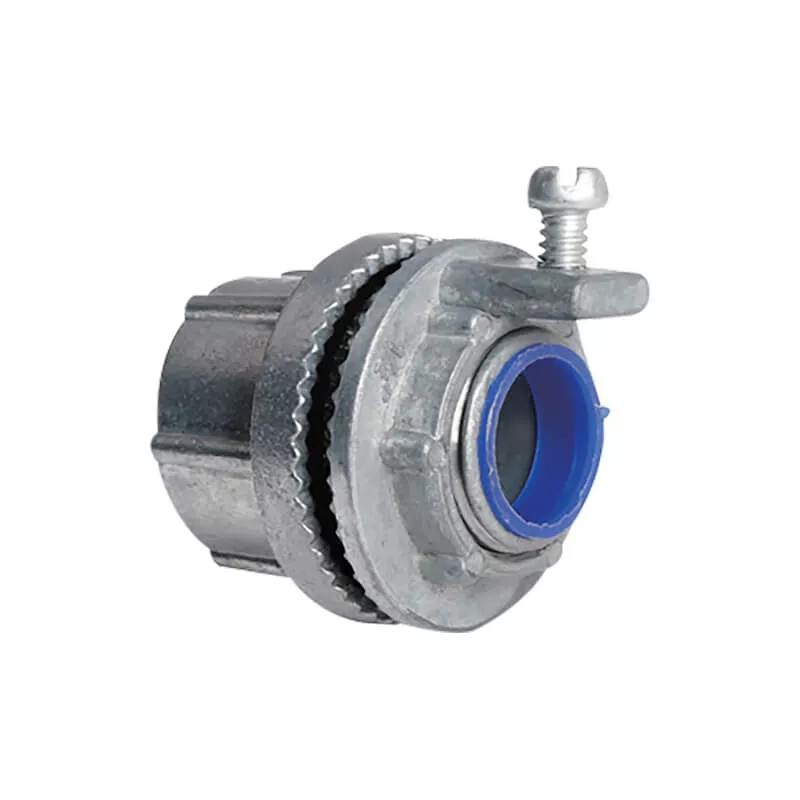

Watertight conduit hub with grounding lug connects RMC or IMC to threadless enclosure openings, forming a reliable seal against water, dust, and oil. It features an embedded sealing locknut for a watertight bond, an insulated throat for wire protection, and an integrated grounding lug for attaching a dedicated grounding conductor, making it the ideal solution for service entrances and outdoor or hazardous locations.
Available size
| Trade size | Material | Connection | Ref. No. |
|---|---|---|---|
| 1/2″ | Zinc | Thread + thread | C3821 (UL) |
| 3/4″ | Zinc | Thread + thread | C3822 (UL) |
| 1″ | Zinc | Thread + thread | C3823 (UL) |
| 1-1/4″ | Zinc | Thread + thread | C3824 (UL) |
| 1-1/2″ | Zinc | Thread + thread | C3825 (UL) |
| 2″ | Zinc | Thread + thread | C3826 (UL) |
| 2-1/2″ | Zinc | Thread + thread | C3827 (UL) |
| 3″ | Zinc | Thread + thread | C3828 (UL) |
| 4″ | Zinc | Thread + thread | C3829 (UL) |
