Roll grooving machine

Category Pipe Machines and Tools

Certificate: CE certified
Standard: EN ISO 12100, EN 60204-1
Capacity: Carbon steel or stainless steel pipe; bare, coated (FBE, painted, galvanized), or plastic lining
Type: Electric stationary (1″ ~ 12″)
Manual (3/4″ ~ 8″)
Surface: Red, white, or custom color

Product Details

Roll grooving machine from TPMC is designed to create consistent, precise grooves at steel pipe ends.

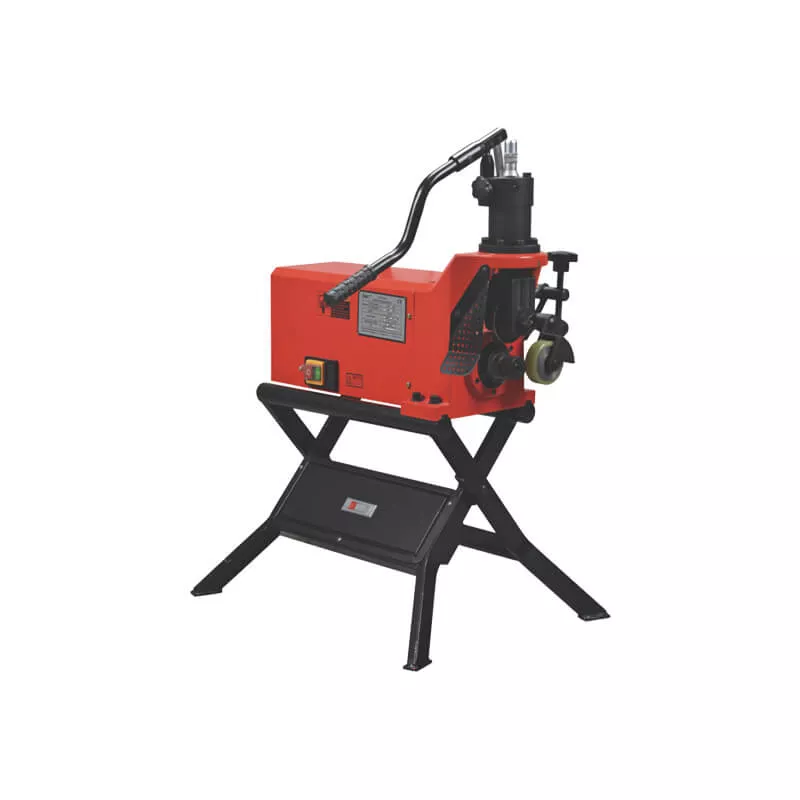

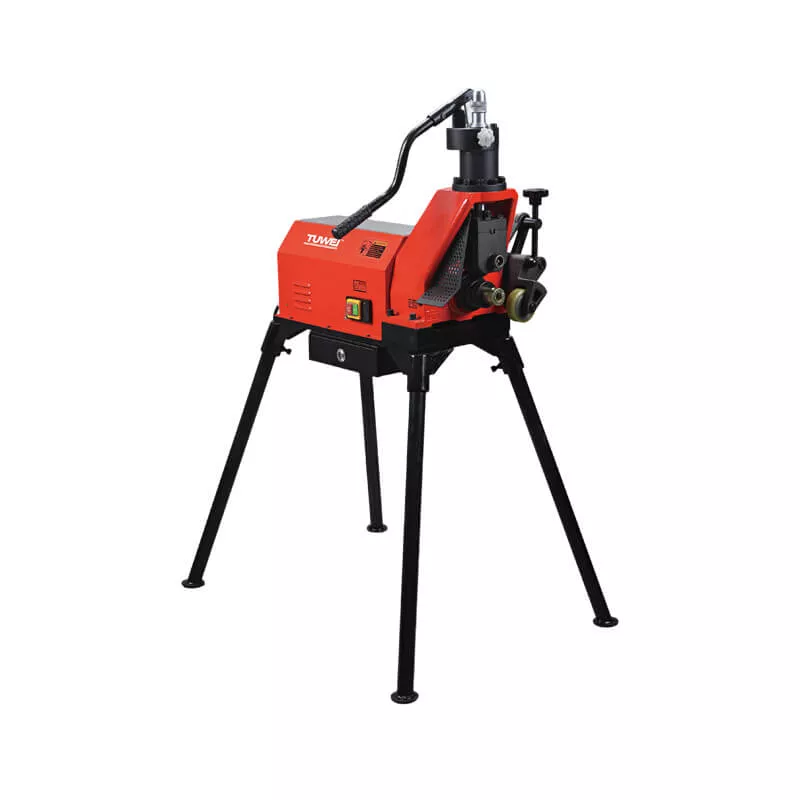

The electric stationary grooving machine uses a gear‑reduction motor to rotate the pipe, while a pinch roller is manually fed radially against the rotating pipe, forming a uniform groove with hydraulic power.
The manual grooving machine is ideal for tight spaces or jobsites without power. Lightweight and portable, it uses a hydraulic mechanism to groove 3/4″ to 8″ pipe.
Both machines are CE certified and feature an integrated hydraulic pump and groove depth limiter, delivering accurate, efficient performance in a compact design.

Available sizes

Allowed pipe size (NPS)	Pipe thickness	Drive type	Motor	Ref. No.
1″ ~ 8″	SCH40 (SCH10)*	Electrical stationary	1P or 3P	P3108 (CE)
2″ ~ 12″	SCH40 (SCH10)*	Electrical stationary	1P or 3P	P3112 (CE)
3/4″ ~ 8″	SCH40	Manual	–	P3120 (CE)

Note:
1. * Standard accessories are for SCH40; SCH10 is optional.
2. For 1P motors, available in 110/120/220/230/240 V, 50/60 Hz. Supplied with power cord plug (BS / NEMA / CN types available).
3. For 3P motors, available in 220/380/415/440 V, 50/60 Hz.
