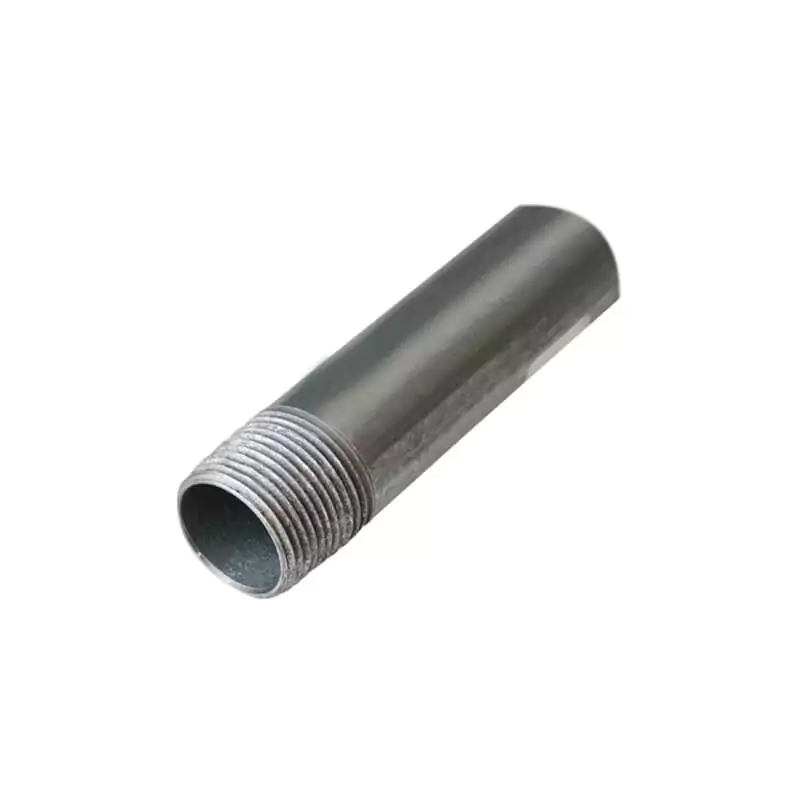

RMC (Rigid Metal Conduit) is a heavy-walled, threaded raceway manufactured from electric resistance welded (ERW) steel. Designed for extreme-duty applications, it provides superior mechanical impact resistance and serves as an effective grounding path.
The conduit features a hot-dip galvanized coating that complies with ASTM A153, providing exceptional corrosion resistance for use in direct burial, chemical immersion, and marine environments.
Available size
| Trade size | OD (mm) | Thickness (mm) | Length (m) | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 21.34 | 2.64 | 3.05 / 10 ft | C1301 (UL) |
| 3/4″ | 26.67 | 2.72 | 3.05 / 10 ft | C1302 (UL) |
| 1″ | 33.40 | 3.20 | 3.05 / 10 ft | C1303 (UL) |
| 1-1/4″ | 42.16 | 3.38 | 3.05 / 10 ft | C1304 (UL) |
| 1-1/2″ | 48.26 | 3.51 | 3.05 / 10 ft | C1305 (UL) |
| 2″ | 60.33 | 3.71 | 3.05 / 10 ft | C1306 (UL) |
| 2-1/2″ | 73.03 | 4.90 | 3.05 / 10 ft | C1307 (UL) |
| 3″ | 88.90 | 5.21 | 3.05 / 10 ft | C1308 (UL) |
| 4″ | 114.30 | 5.72 | 3.05 / 10 ft | C1309 (UL) |
| 5″ | 141.30 | 6.22 | 3.05 / 10 ft | C1310 (UL) |
| 6″ | 168.28 | 6.76 | 3.05 / 10 ft | C1311 (UL) |
Note:
1. OD tolerance: size 1/2″ to 1-1/2″ is ± 0.38 mm; size 2″ to 6″, ± 1%.
2. Length tolerance: 3.05 m (10 ft) ± 6 mm when a straight-tapped conduit coupling is attached.
