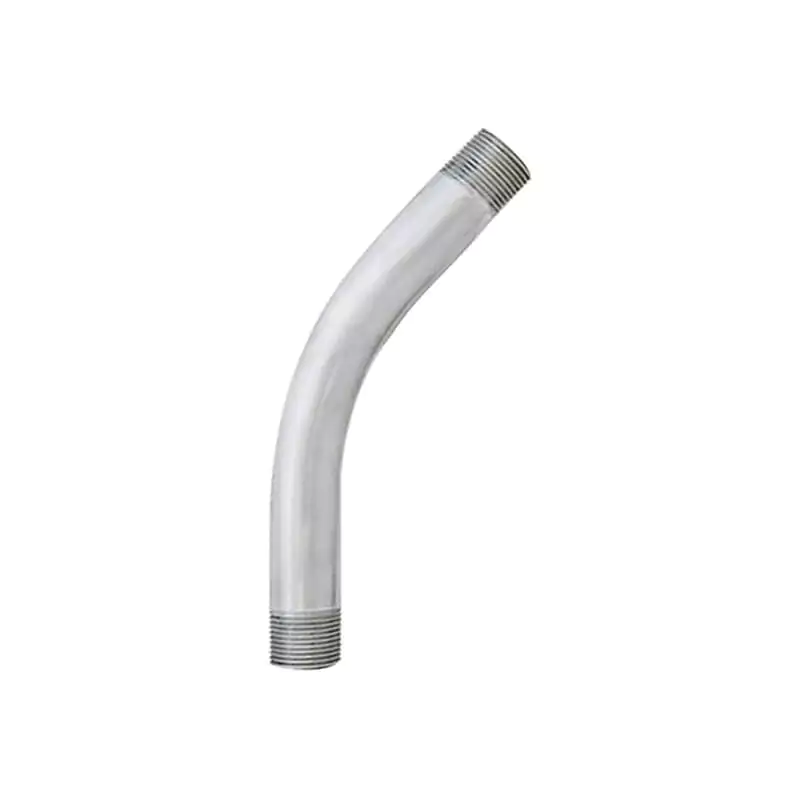

RMC elbow is made from the same rigid, heavy-walled galvanized steel strip as straight RMC, to change the direction of the conduit run. It is used to route electrical wiring around corners or obstacles, follow specific pathways, and maintain continuous protection for wires.
Available size
| Trade size | OD (mm) | Thickness (mm) | Bending angle | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 21.34 | 2.64 | 90° / 45° | C1401 (UL) |
| 3/4″ | 26.67 | 2.72 | 90° / 45° | C1402 (UL) |
| 1″ | 33.40 | 3.20 | 90° / 45° | C1403 (UL) |
| 1-1/4″ | 42.16 | 3.38 | 90° / 45° | C1404 (UL) |
| 1-1/2″ | 48.26 | 3.51 | 90° / 45° | C1405 (UL) |
| 2″ | 60.33 | 3.71 | 90° / 45° | C1406 (UL) |
| 2-1/2″ | 73.03 | 4.90 | 90° / 45° | C1407 (UL) |
| 3″ | 88.90 | 5.21 | 90° / 45° | C1408 (UL) |
| 4″ | 114.30 | 5.72 | 90° / 45° | C1409 (UL) |
| 5″ | 141.30 | 6.22 | 90° / 45° | C1410 (UL) |
| 6″ | 168.28 | 6.76 | 90° / 45° | C1411 (UL) |
Note:
1. The dimension tolerance follows the specification of straight RMC.
2. The elbow shall not be sharper than 90°, and angle tolerance is ± 2°.
