Orifice plate

Orifice plate

  • Certificate: ISO
  • Standard: ISO 5167-2, GB 50084
  • Material: SS304 / SS316L
  • Feature: Simply reduce residual pressure
  • Surface: Bright SS surface

Product Details

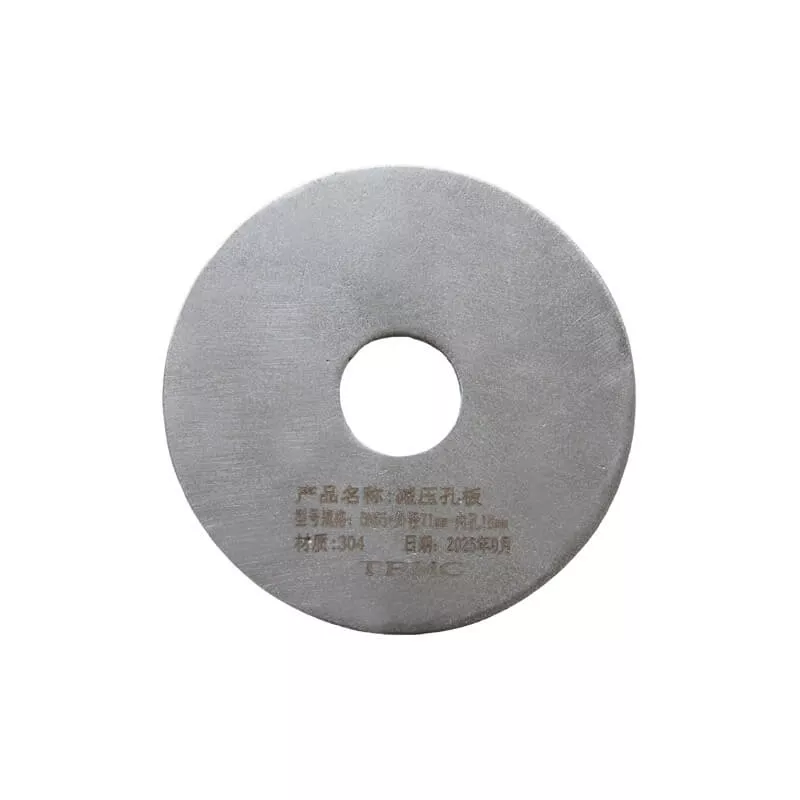

Orifice plate, also known as pressure reducing orifice plate, is a steel plate with circular perforation. When flowing water passes through the orifice plate, due to the local resistance loss, the pressure drop occurs so to meet the needs of the outlet pressure and flow.

Available size

Piping size Orifice (mm) Thickness (mm) Working pressure (bar) Ref. No.
DN 50 12.5 ~ 40 3 16 FE7501
DN 65 12.5 ~ 50 3 16 FE7502
DN 80 12.5 ~ 60 3 16 FE7503
DN 100 12.5 ~ 80 6 16 FE7504
DN 125 12.5 ~ 100 6 16 FE7505
DN 150 15 ~ 120 6 16 FE7506
DN 200 20 ~ 160 9 16 FE7507
DN 250 25 ~ 200 9 16 FE7508

Note:
1. Orifice size is customized.
2. Other thickness is also available.
