DSP dividing breeching

DSP dividing breeching

  • Certificate: ISO
  • Standard: Refer to NF S61-704, NF S61-705
  • Material: Aluminum / copper
  • Feature: Divide the flow and hoseline
  • Surface: Anodized / Red coating

Product Details

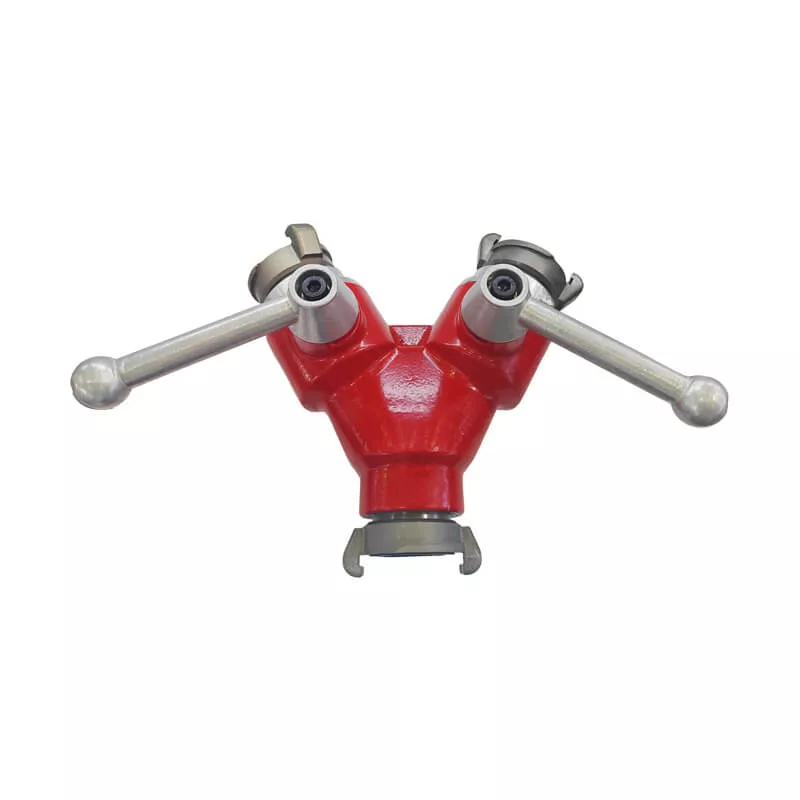

DSP dividing breeching is designed to divide one stream of water into more streams. It is equipped with a DSP inlet and two or three DSP outlets. For outlets, they are available with plain type, or gated type with quarter turn handlers to shut off water individually.

Available size

Size Inlet Outlet Working pressure (bar) Ref. No.
2.5″ DSP 65 (2) DSP 40 16 FE4701
2.5″ DSP 65 (1) DSP 65 x (2) DSP 40 16 FE4702
