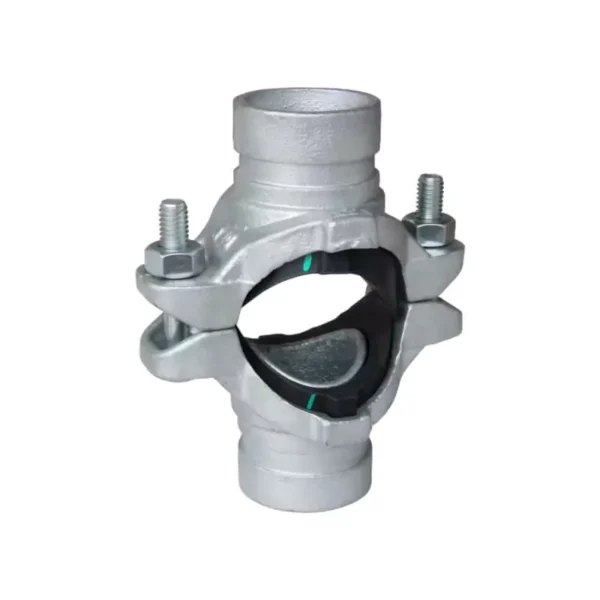

Mechanical cross with grooved branches

Mechanical cross with grooved branches

SKU N/A Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213
  • Housing: Ductile iron ASTM A536, 65-45-12
  • Bolt & nut: Carbon steel, detail as G92 ~ G96
  • Gasket: EPDM, nitrile, silicone rubber, etc.
  • Rated pressure: 300 ~ 500 psi
  • Surface: Red painting / hot dip galvanized

Product Details

Mechanical cross with grooved branches provides two additional grooved outlets in existing pipeline, by connecting the pre-set holes at the main pipe surface.

Available size

Size (Inch / DN / mm) Bolting (n x bolt size), ANSI Bolting (n x bolt size), EN Ref. No.
2″ x 1-1/4″ / 50 x 32 / 60.3 x 42.4 2 – 3/8″ x 55 2 – M10 x 57 G7801 (UL/FM)
2″ x 1-1/2″ / 50 x 40 / 60.3 x 48.3 2 – 3/8″ x 55 2 – M10 x 57 G7802 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 76.1 x 33.7 2 – 1/2″ x 70 2 – M12 x 70 G7803 (ISO)
2-1/2″ x 1-1/4″ / 65 x 32 / 73.0 x 42.4 2 – 1/2″ x 70 2 – M12 x 70 G7804 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 76.1 x 42.4 2 – 1/2″ x 70 2 – M12 x 70 G7805 (UL/FM)
3″ x 1″ / 80 x 25 / 88.9 x 33.7 2 – 1/2″ x 75 2 – M12 x 76 G7806 (ISO)
3″ x 1-1/4″ / 80 x 32 / 88.9 x 42.4 2 – 1/2″ x 75 2 – M12 x 76 G7807 (UL/FM)
3″ x 1-1/2″ / 80 x 40 / 88.9 x 48.3 2 – 1/2″ x 75 2 – M12 x 76 G7808 (UL/FM)
3″ x 2″ / 80 x 50 / 88.9 x 60.3 2 – 1/2″ x 75 2 – M12 x 76 G7809 (FM)
4″ x 1″ / 100 x 25 / 114.3 x 33.7 2 – 1/2″ x 75 2 – M12 x 76 G7810 (ISO)
4″ x 1-1/4″ / 100 x 32 / 114.3 x 42.4 2 – 1/2″ x 75 2 – M12 x 76 G7811 (UL/FM)
4″ x 1-1/2″ / 100 x 40 / 114.3 x 48.3 2 – 1/2″ x 75 2 – M12 x 76 G7812 (UL/FM)
4″ x 2″ / 100 x 50 / 114.3 x 60.3 2 – 1/2″ x 75 2 – M12 x 76 G7813 (UL/FM)
4″ x 2-1/2″ / 100 x 65 / 114.3 x 76.1 2 – 1/2″ x 75 2 – M12 x 76 G7814 (FM)
4″ x 3″ / 100 x 80 / 114.3 x 88.9 2 – 1/2″ x 75 2 – M12 x 76 G7815 (UL/FM)

Note: Please download our catalog for more available sizes.
