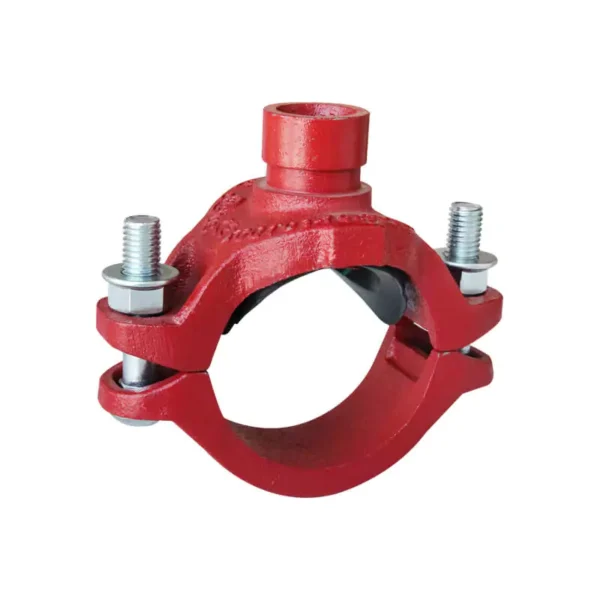

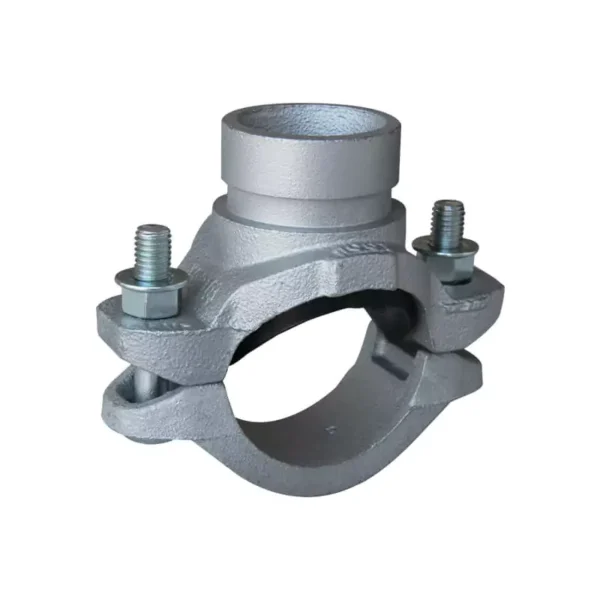

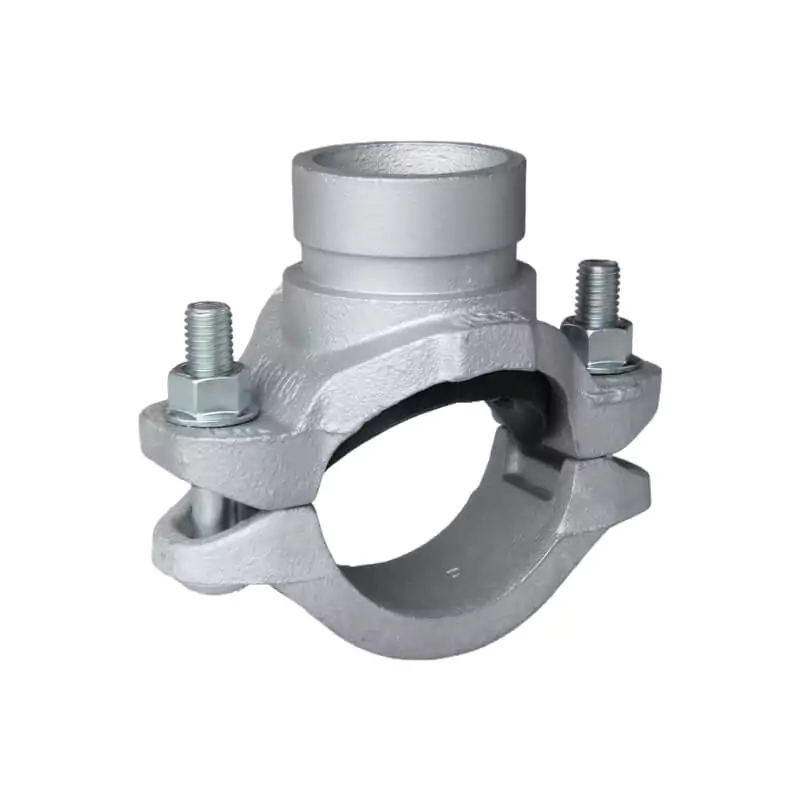

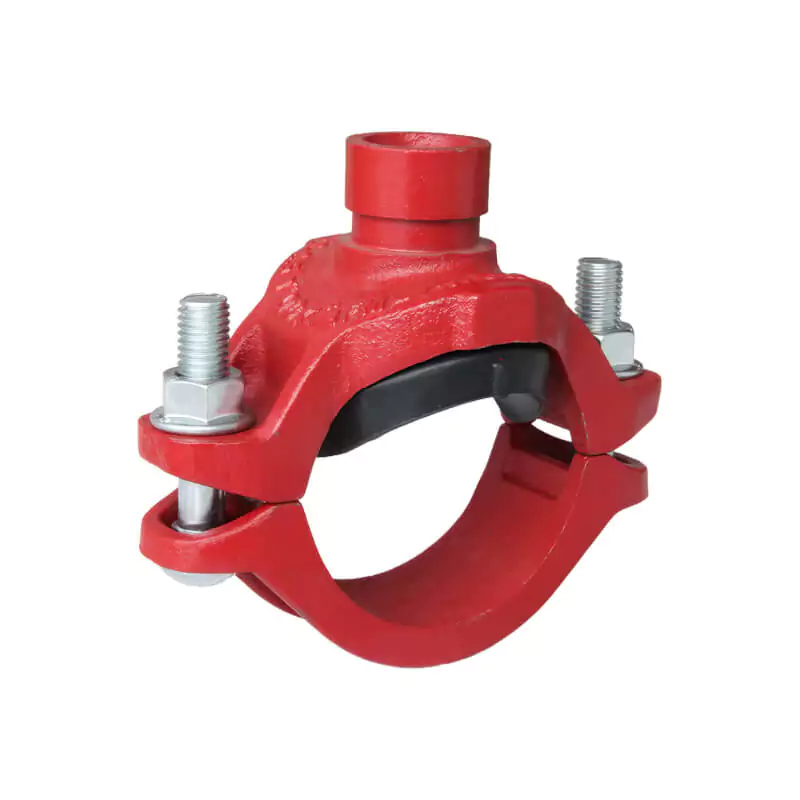

Mechanical tee with grooved branch

Mechanical tee with grooved branch

  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213
  • Housing: Ductile iron ASTM A536, 65-45-12
  • Bolt & nut: Carbon steel, detail as G92 ~ G96
  • Gasket: EPDM, nitrile, silicone rubber, etc.
  • Rated pressure: 300 ~ 500 psi
  • Surface: Red painting / hot dip galvanized

Product Details

Mechanical tee with grooved branch provides an additional grooved outlet in existing pipeline, by connecting the pre-set hole at the main pipe surface.

Available size

Size (Inch / DN / mm) Bolting (n x bolt size), ANSI Bolting (n x bolt size), EN Ref. No.
2″ x 1″ / 50 x 25 / 60.3 x 33.7 2 – 3/8″ x 55 2 – M10 x 57 G7501 (UL/FM)
2″ x 1-1/4″ / 50 x 32 / 60.3 x 42.4 2 – 3/8″ x 55 2 – M10 x 57 G7502 (UL/FM)
2″ x 1-1/2″ / 50 x 40 / 60.3 x 48.3 2 – 3/8″ x 55 2 – M10 x 57 G7503 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 73.0 x 33.7 2 – 1/2″ x 70 2 – M12 x 70 G7504 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 73.0 x 42.4 2 – 1/2″ x 70 2 – M12 x 70 G7505 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 40 / 73.0 x 48.3 2 – 1/2″ x 70 2 – M12 x 70 G7506 (UL/FM)
2-1/2″ x 1″ / 65 x 25 / 76.1 x 33.7 2 – 1/2″ x 70 2 – M12 x 70 G7507 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 32 / 76.1 x 42.4 2 – 1/2″ x 70 2 – M12 x 70 G7508 (UL/FM)
2-1/2″ x 1-1/4″ / 65 x 40 / 76.1 x 48.3 2 – 1/2″ x 70 2 – M12 x 70 G7509 (UL/FM)
3″ x 1″ / 80 x 25 / 88.9 x 33.7 2 – 1/2″ x 75 2 – M12 x 76 G7510 (UL/FM)
3″ x 1-1/4″ / 80 x 32 / 88.9 x 42.4 2 – 1/2″ x 75 2 – M12 x 76 G7511 (UL/FM)
3″ x 1-1/2″ / 80 x 40 / 88.9 x 48.3 2 – 1/2″ x 75 2 – M12 x 76 G7512 (UL/FM)
3″ x 2″ / 80 x 50 / 88.9 x 60.3 2 – 1/2″ x 75 2 – M12 x 76 G7513 (UL/FM)
4″ x 1″ / 100 x 25 / 114.3 x 33.7 2 – 1/2″ x 75 2 – M12 x 76 G7514 (UL/FM)
4″ x 1-1/4″ / 100 x 32 / 114.3 x 42.4 2 – 1/2″ x 75 2 – M12 x 76 G7515 (UL/FM)

Note: Please download our catalog for more available sizes.
