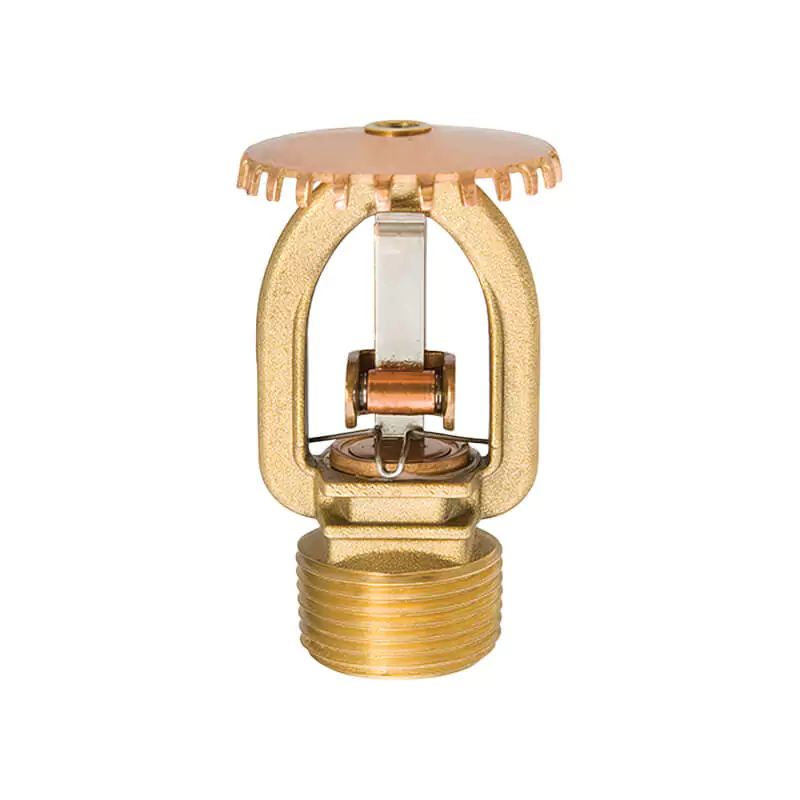

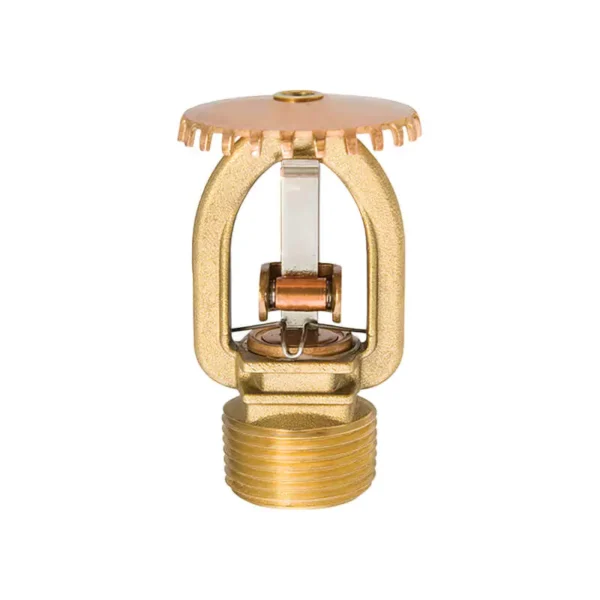

K5.6 standard response upright sprinkler

K5.6 standard response upright sprinkler

  • Certificate: UL Listed / FM Approved
  • Standard: UL 199, NFPA 13
  • Feature: K5.6 (K80), SR, upright
  • W. pressure: 250 / 175 psi
  • T. pressure: 500 psi, factory hydrostatic test
  • O. pressure: Min 7 psi
  • Surface: Rough brass / chrome plated / white painted, etc.

Product Details

K5.6 standard response upright sprinkler is usually used in all hazard occupancies. The deflector is installed above the orifice, and the water spray is directed upwards against the deflector.

Available size (Source 1 with UL/FM)

Type Temperature rating Working pressure (psi) Ref. No.
Upright 135°F (57°C) 250 S0101 (UL/FM)
Upright 155°F (68°C) 250 S0102 (UL/FM)
Upright 175°F (79°C) 250 S0103 (UL/FM)
Upright 200°F (93°C) 250 S0104 (UL/FM)
Upright 286°F (141°C) 250 S0105 (UL/FM)
Upright 360°F (182°C) 250 S0106 (UL/FM)



Available size (Source 2 with UL)

Type Temperature rating Working pressure (psi) Ref. No.
Upright 135°F (57°C) 175 S0121 (UL)
Upright 155°F (68°C) 175 S0122 (UL)
Upright 175°F (79°C)) 175 S0123 (UL)
Upright 200°F (93°C)) 175 S0124 (UL)
Upright 286°F (141°C)) 175 S0125 (UL)
