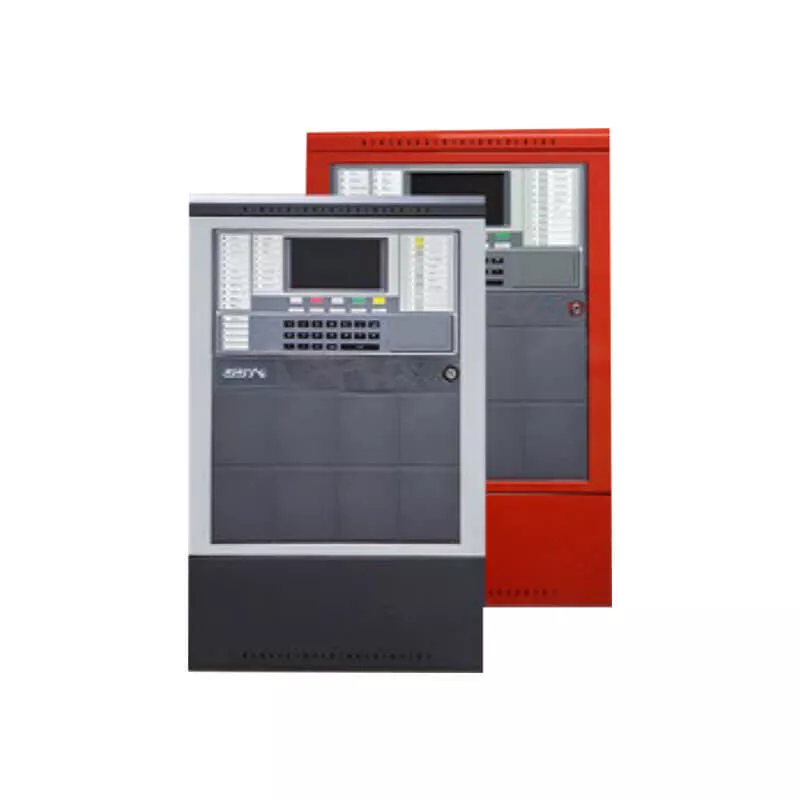

Intelligent addressable fire alarm control panel (FACP) serves as the central control unit in modern fire alarm system. Utilizing loop wiring method where all devices are connected, the panel can identify and monitor each individual device, so to provide early warning of fire detection and fire alarm, and control other linkage fire equipment.
Available size (Source 1 with UL)
| Main input power | Standby battery | SLC loop | Addressable device No. | Ref. No. |
|---|---|---|---|---|
| 120 or 220 VAC | 24 VDC, max 20Ah | 1, class A | Max 240 | A0101 (UL) |
| 120 or 220 VAC | 24 VDC, max 20Ah | 2, class A | Max 480 | A0102 (UL) |
| 120 or 220 VAC | 24 VDC, max 65Ah | 2, class A | Max 484 | A0103 (UL) |
| 120 or 220 VAC | 24 VDC, max 65Ah | 4, class A | Max 968 | A0104 (UL) |
| 120 or 220 VAC | 24 VDC, max 65Ah | 6, class A | Max 1452 | A0105 (UL) |
Note:
1. For main input power, it can be configured to operate at either 120VAC/60Hz or 220VAC/50Hz.
2. For secondary power supply, it is recommended to use rechargeable lead acid battery which needs to be purchased separately.
Available size (Source 2 with UL/FM)
| Main input power | Standby battery | SLC loop | Addressable device No. | Ref. No. |
|---|---|---|---|---|
| 120 or 240 VAC | 24 VDC, max 42Ah | 1, class A/B/X | Max 240 | A0111 (UL/FM) |
| 120 or 240 VAC | 24 VDC, max 42Ah | 3, class A/B/X | Max 720 | A0112 (UL/FM) |
| 120 or 240 VAC | 24 VDC, max 65Ah | 4, class A/B/X | Max 960 | A0113 (UL/FM) |
| 120 or 240 VAC | 24 VDC, max 65Ah | 6, class A/B/X | Max 1440 | A0114 (UL/FM) |
| 120 or 240 VAC | 24 VDC, max 65Ah | 8, class A/B/X | Max 1920 | A0115 (UL/FM) |
Note:
1. For main input power, it can be configured to operate at either 120VAC/60Hz or 240VAC/50Hz.
2. For standby battery, it is recommended to use rechargeable lead acid battery which needs to be purchased separately.
