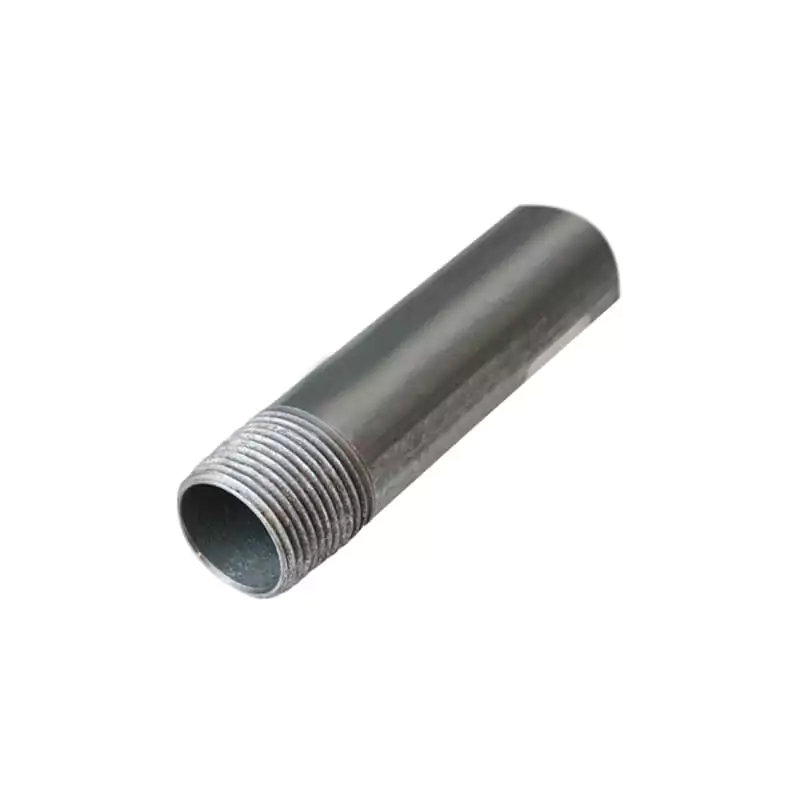

IMC (Intermediate Metal Conduit) is a rigid, medium-walled, threaded raceway manufactured from electric resistance welded (ERW) steel. Serving as a balanced alternative to metallic conduit, it is 25 ~ 40% lighter than RMC and exhibits 20% higher crush resistance than EMT.
Available size
| Trade size | OD (mm) | Thickness (mm) | Length (m) | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 20.57 ~ 20.83 | 1.79 ~ 2.16 | 3.05 / 10 ft | C1601 (UL) |
| 3/4″ | 26.01 ~ 26.26 | 1.90 ~ 2.29 | 3.05 / 10 ft | C1602 (UL) |
| 1″ | 32.64 ~ 32.89 | 2.16 ~ 2.54 | 3.05 / 10 ft | C1603 (UL) |
| 1-1/4″ | 41.40 ~ 41.78 | 2.16 ~ 2.67 | 3.05 / 10 ft | C1604 (UL) |
| 1-1/2″ | 47.62 ~ 48.01 | 2.29 ~ 2.79 | 3.05 / 10 ft | C1605 (UL) |
| 2″ | 59.74 ~ 60.12 | 2.41 ~ 2.92 | 3.05 / 10 ft | C1606 (UL) |
| 2-1/2″ | 72.31 ~ 72.82 | 3.56 ~ 4.06 | 3.05 / 10 ft | C1607 (UL) |
| 3″ | 88.04 ~ 88.54 | 3.56 ~ 4.06 | 3.05 / 10 ft | C1608 (UL) |
| 4″ | 113.18 ~ 113.69 | 3.56 ~ 4.06 | 3.05 / 10 ft | C1609 (UL) |
Note: Length tolerance: 3.05 m (10 ft) ± 6 mm when a standard coupling is attached.
