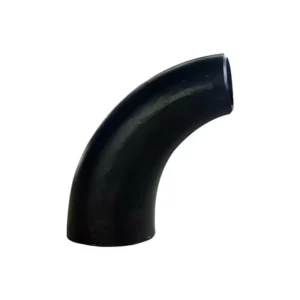

EN / BS butt weld 90° elbow (Long radius)

EN / BS butt weld 90° elbow (Long radius)

  • Certificate: ISO
  • Standard: EN 10253-1 / EN 10253-2 / EN 10253-3
  • Material: Carbon steel S235 / P235TR2
    SS equivalent to WP304 / WP316L
  • Type: Long radius, 3D, R=1.5D
  • W. pressure: Equal to same straight pipe
  • Surface: Black painting / hot dip galvanized,
    Pickling white, etc.

Product Details

EN / BS butt weld 90° elbow (Long radius) is used to connect two pipes by butt welding connection, so to make the pipeline turn 90-degree for changing the fluid flow direction.

Available size

Size R (mm) Ref. No.
1/2″ / DN15 / 21.3mm 38 NE0101
3/4″ / DN20 / 26.9mm 38 NE0102
1″ / DN25 / 33.7mm 38 NE0103
1-1/4″ / DN32 / 42.4mm 48 NE0104
1-1/2″ / DN40 / 48.3mm 57 NE0105
2″ / DN50 / 60.3mm 76 NE0106
2-1/2″ / DN65 / 76.1mm 95 NE0107
3″ / DN80 / 88.9mm 114 NE0108
4″ / DN100 / 114.3mm 152 NE0109
5″ / DN125 / 139.7mm 190 NE0110
6″ / DN150 / 165.1 / 168.3mm 229 NE0111
8″ / DN200 / 219.1mm 305 NE0112
10″ / DN250 / 273.0mm 381 NE0113
12″ / DN300 / 323.9mm 457 NE0114
14″ / DN350 / 355.6mm 533 NE0115
16″ / DN400 / 406.4mm 610 NE0116
18″ / DN450 / 457.0mm 686 NE0117
20″ / DN500 / 508.0mm 762 NE0118
24″ / DN600 / 610.0mm 914 NE0119

Ask For A Quick Quote
