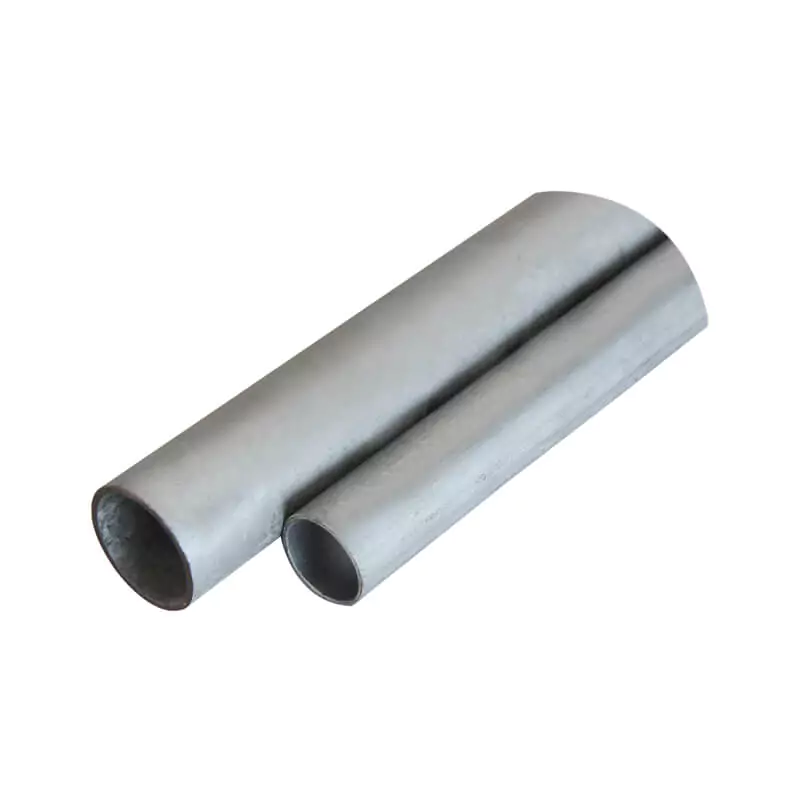

EMT (Electrical Metallic Tubing) is a rigid, thin-walled, unthreaded raceway manufactured from electric resistance welded (ERW) steel. As a cost-effective and lightweight raceway, it provides reliable mechanical protection to exposed electrical wiring in commercial and light-industrial applications.
Available size
| Trade size | OD (mm) | Thickness (mm) | Length (m) | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 17.93 | 1.07 | 3.05 / 10 ft | C1101 (UL) |
| 3/4″ | 23.42 | 1.24 | 3.05 / 10 ft | C1102 (UL) |
| 1″ | 29.54 | 1.45 | 3.05 / 10 ft | C1103 (UL) |
| 1-1/4″ | 38.35 | 1.65 | 3.05 / 10 ft | C1104 (UL) |
| 1-1/2″ | 44.20 | 1.65 | 3.05 / 10 ft | C1105 (UL) |
| 2″ | 55.80 | 1.65 | 3.05 / 10 ft | C1106 (UL) |
| 2-1/2″ | 73.03 | 1.83 | 3.05 / 10 ft | C1107 (UL) |
| 3″ | 88.90 | 1.83 | 3.05 / 10 ft | C1108 (UL) |
| 4″ | 114.30 | 2.11 | 3.05 / 10 ft | C1109 (UL) |
Note:
1. OD tolerance: size 1/2″ to 2″ is ± 0.13 mm; size 2-1/2″ is ± 0.25 mm; size 3″ is ± 0.38 mm; size 4″ is ± 0.50 mm.
2. Length tolerance: 3.05 m (10 ft) ± 6 mm.
