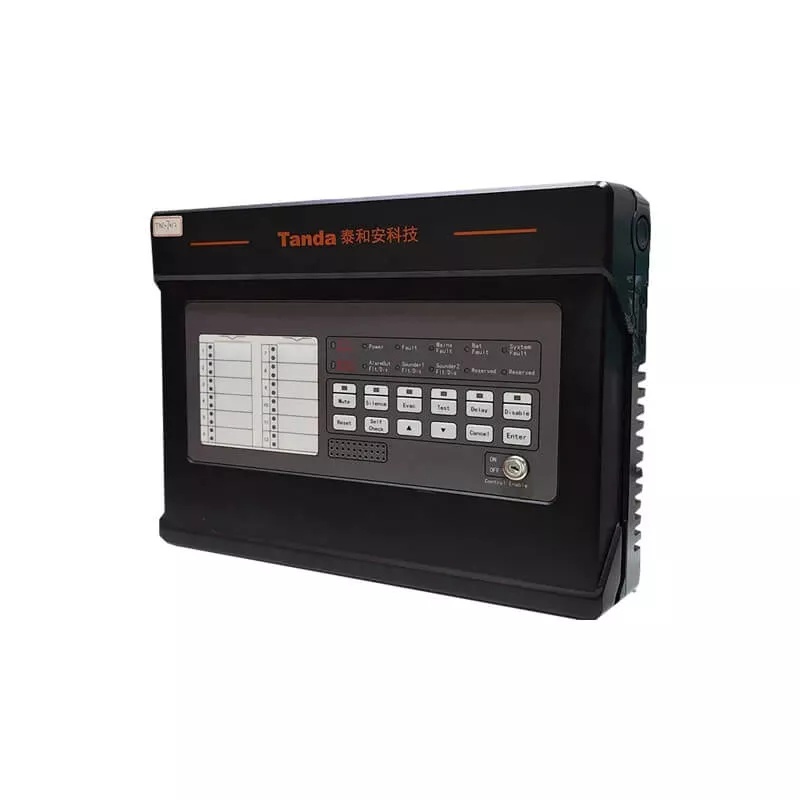

Conventional fire alarm control panel operates through predefined detection zones rather than individually device. When an initiating device is activated, it triggers a change in the circuit’s electrical state, and a signal is transmitted to the control panel which then identifies the affected zone and initiates predefined alarm protocols.
Available size
| Main input power | Standby battery | Zone No. (Partition) |
Zone device No. | Ref. No. |
|---|---|---|---|---|
| 100 to 240 VAC, 50 Hz | 24V, max 7.2Ah | 1 | Max 30 | AE5101 (CE) |
| 100 to 240 VAC, 50 Hz | 24V, max 7.2Ah | 2 | Max 60 | AE5102 (CE) |
| 100 to 240 VAC, 50 Hz | 24V, max 7.2Ah | 4 | Max 120 | AE5103 (CE) |
| 100 to 240 VAC, 50 Hz | 24V, max 7.2Ah | 8 | Max 240 | AE5104 (CE) |
| 100 to 240 VAC, 50 Hz | 24V, max 7.2Ah | 12 | Max 360 | AE5105 (CE) |
Note: For standby battery, it is recommended to use rechargeable lead acid battery which needs to be purchased separately.
