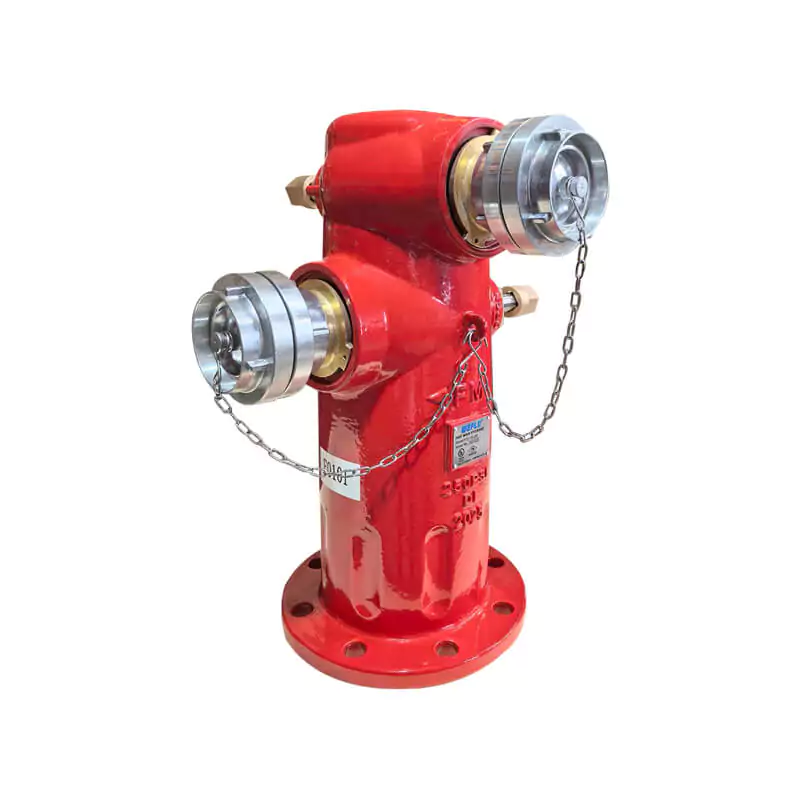

Wet barrel fire hydrant is used in areas where the climate is mild and no danger of freezing weather. It has outlets equipped with an individual valve and the hydrant interior always has pressurized water.
Available size (Source 1 with UL/FM)
| Inlet size | Way of outlet | Hose outlet | Pumper outlet | Monitor flange | Ref. No. |
|---|---|---|---|---|---|
| 6″ | 2-way | (2) 2-1/2″ NH | / | / | F0101 (UL/FM) |
| 6″ | 2-way | (2) 2-1/2″ NH | / | 3″ or 4″ | F0102 (UL/FM)* |
| 6″ | 2-way | (1) 2-1/2″ NH | (1) 4″ NH | / | F0103 (UL/FM) |
| 6″ | 2-way | (1) 2-1/2″ NH | (1) 4″ NH | 3″ or 4″ | F0104 (UL/FM)* |
| 6″ | 2-way | (1) 2-1/2″ NH | (1) 4-1/2″ NH | / | F0105 (UL) |
| 6″ | 2-way | (1) 2-1/2″ NH | (1) 4-1/2″ NH | 3″ or 4″ | F0106 (UL) |
| 6″ | 2-way | (1) 2-1/2″ NH | (1) 5″ Storz | / | F0107 (UL) |
| 6″ | 2-way | (1) 2-1/2″ NH | (1) 5″ Storz | 3″ or 4″ | F0108 (UL) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4″ NH | / | F0109 (UL/FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4″ NH | 3″ or 4″ | F0110 (UL/FM)* |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4-1/2″ NH | / | F0111 (UL/FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4-1/2″ NH | 3″ or 4″ | F0112 (UL/FM)* |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 5″ NH | / | F0113 (FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 5″ NH | 4″ | F0114 (FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 5″ Storz | / | F0115 (UL/FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 5″ Storz | 3″ or 4″ | F0116 (UL/FM)* |
Note:
1. The inlet base flange is available with ANSI B16.1 Class 125.
2. It may incorporate a 3″ or 4″ monitor flange (ASME B16.1 Class 125) on the top of the hydrant, so to connect additional fire monitor.
3. * For fire hydrant with 3″ monitor flange, it is only UL listed, no UL/FM.
4. It is equipped with an exclusive fire hydrant wrench, see TPMC Ref. No. F6853.
Available size (Source 2 with UL/FM)
| Inlet size | Way of outlet | Hose outlet | Pumper outlet | Monitor flange | Ref. No. |
|---|---|---|---|---|---|
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4″ NH | / | F0131 (UL) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4″ NH | 4″ | F0132 (UL) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4-1/2″ NH | / | F0133 (UL/FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4-1/2″ NH | 4″ | F0134 (UL) |
Note:
1. The inlet base flange is available with ANSI B16.5 Class 150, or EN 1092 PN 16 (BS 4504 / DIN 2501, PN 16).
2. It may incorporate a 4″ monitor flange (ASTM B16.5 Class 150 / DIN 2501, PN16), so to connect additional fire monitor.
3. It is equipped with an exclusive fire hydrant wrench, See TPMC Ref. No. F6851.
Available size (Source 3 with UL/FM)
| Inlet size | Way of outlet | Hose outlet | Pumper outlet | Monitor flange | Ref. No. |
|---|---|---|---|---|---|
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4-1/2″ NH | / | F0141 (UL/FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 4″ NH | / | F0142 (UL/FM) |
| 6″ | 3-way | (2) 2-1/2″ NH | (1) 5″ NH | / | F0143 (UL/FM) |
Note:
1. The inlet base flange is available with ANSI B16.42 Class 150.
2. The hose outlet and pump outlet are available with British standard threaded nozzles.
3. It is equipped with an exclusive fire hydrant wrench, See TPMC Ref. No. F6851.
