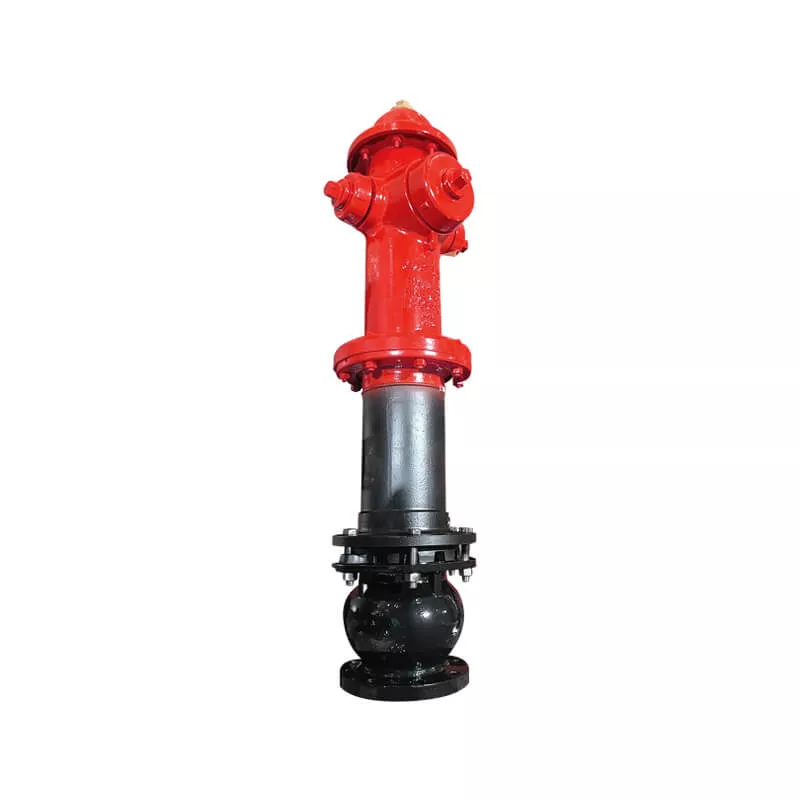

American dry barrel fire hydrant

American dry barrel fire hydrant

  • Certificate: UL Listed / FM Approved
  • Standard: UL 246, FM1511, AWWA C502
  • Connection: Base flange as B16.1 Class 125, B16.5 Class 150, EN1092-2 PN16, or mechanical joint (MJ) as AWWA C111/A21.11
  • Bury length: Standardized 3′ (914 mm), available with 1′ ~ 7′ (305 mm ~ 2134 mm)
  • W. pressure: 250 psi
  • Temperature: -10°C to 82°C
  • Surface: Red powder coating (RAL 3000) + black bituminous

Product Details

Dry barrel fire hydrant gets its name from the fact that water is drained from the barrel when not in use. It is intended for use in all climates including those where freezing occurs. A single main valve is in the base for hydrant fully open or closed.

Available size (Source 1 with UL/FM)

Inlet size Way of outlet Hose outlet Pumper outlet Flanged monitor elbow Ref. No.
6″ 2-way (2) 2-1/2″ NH / / F0201 (UL/FM)
6″ 2-way (2) 2-1/2″ NH / 3″ or 4″ F0202 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 4″ NH / F0203 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 4″ NH 3″ or 4″ F0204 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 4-1/2″ NH / F0205 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 4-1/2″ NH 3″ or 4″ F0206 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 5″ NH / F0207 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 5″ NH 3″ or 4″ F0208 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 5″ Storz / F0209 (UL/FM)
6″ 3-way (2) 2-1/2″ NH (1) 5″ Storz 3″ or 4″ F0210 (UL/FM)
6″ 4-way (4) 2-1/2″ NH / / F0211 (UL/FM)
6″ 4-way (4) 2-1/2″ NH / 3″ or 4″ F0212 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 4″ NH / F0213 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 4″ NH 3″ or 4″ F0214 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 4-1/2″ NH / F0215 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 4-1/2″ NH 3″ or 4″ F0216 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 5″ NH / F0217 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 5″ NH 3″ or 4″ F0218 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 5″ Storz / F0219 (UL/FM)
6″ 4-way (3) 2-1/2″ NH (1) 5″ Storz 3″ or 4″ F0220 (UL/FM)
6″ 4-way (2) 2-1/2″ NH (2) 4″ NH / F0221 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 4″ NH 3″ or 4″ F0222 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 4-1/2″ NH / F0223 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 4-1/2″ NH 3″ or 4″ F0224 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 5″ NH / F0225 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 5″ NH 3″ or 4″ F0226 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 5″ Storz / F0227 (UL)
6″ 4-way (2) 2-1/2″ NH (2) 5″ Storz 3″ or 4″ F0228 (UL)

Note:

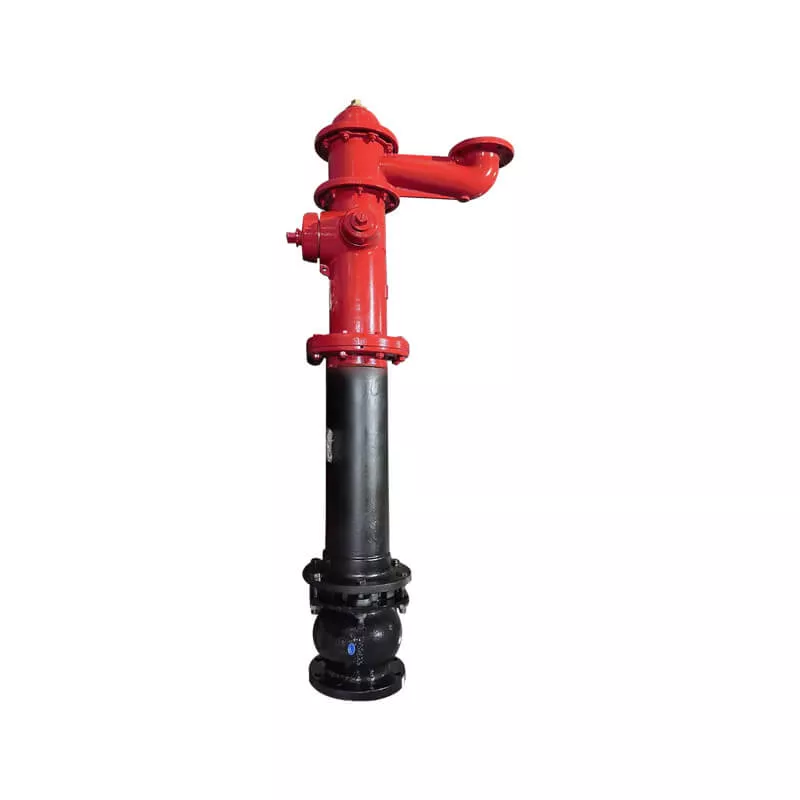

1. It may incorporate a 3″ or 4″ flanged monitor elbow (ASME B16.1 Class 125), so to connect additional fire monitor.
2. Traffic type (With breakable flange) breaks cleanly upon impact to protect the remainder of the hydrant from damage.
3. It is equipped with an exclusive fire hydrant wrench, see TPMC Ref. No. F6853.



Available size (Source 2 with UL/FM)

Inlet size Way of outlet Hose outlet Pumper outlet Flanged monitor elbow Ref. No.
6″ 3-way (2) 2-1/2″ NH (1) 4-1/2″ NH / F0231 (UL/FM)

Note:
1. The inlet base flange is available with ANSI B16.5 Class 150, or EN 1092 PN 16 (BS 4504 / DIN 2501, PN 16).
2. Traffic type (With breakable flange) breaks cleanly upon impact to protect the remainder of the hydrant from damage.
3. It is equipped with an exclusive fire hydrant wrench, See TPMC Ref. No. F6852.
