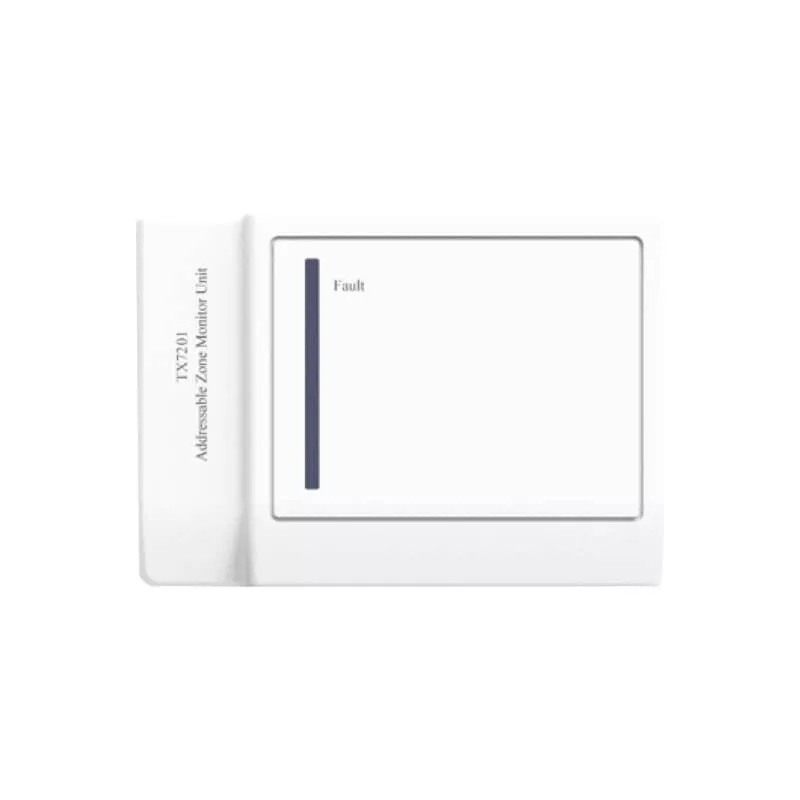

Addressable zone monitor module integrates a zone of conventional devices into an intelligent addressable loop. When any connected device activates, the module transmits signal to the control panel and displays the specific address.
Available size
| Operating voltage | Standby current | Monitor capacity | EOL resistor | Ref. No. |
|---|---|---|---|---|
| 24 VDC | ≤ 1.3 mA, loop | Max 16 devices | 5.1 kΩ | AE2301 (ISO) |
Note: When external Power Supply Unit (PSU) is wired, the device can provide output control to monitor reflective beam smoke detector, see AE14.
