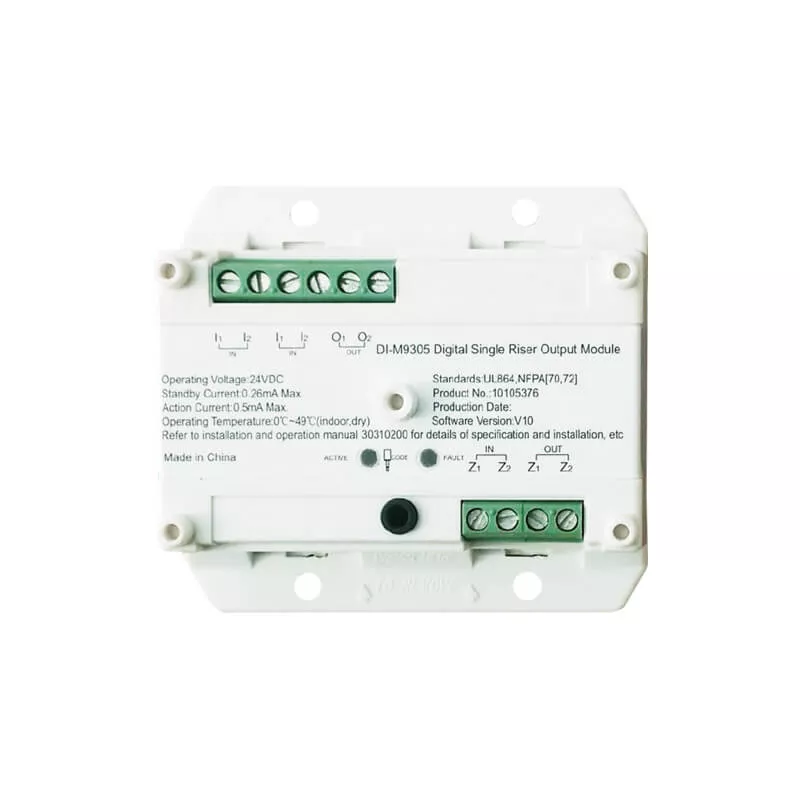

Addressable single riser output module (NFPA 72) - UL Listed

Addressable single riser output module (NFPA 72)

Addressable single riser output module (NFPA 72)

Addressable single riser output module (NFPA 72)

Category Fire alarm system and linkage control (NFPA 72)

Certificate: UL Listed
Standard: UL 864, NFPA 72, NFPA 70
Feature: LED indicator, active output relay
Material: ABS housing, white
Temperature: 0°C to 49°C
Humidity: 0% to 93%, non-condensing
Installation: DIN-rail or surface mounting

Download Addressable single riser output module (NFPA 72)

Product Details

Addressable single riser output module is dedicated to one riser or zone operation to simplify wiring. It receives command from the FACP to control the power on or off, so to trigger connected fire safety equipment.

Available size

Operating voltage	Standby current	Input power	Output reply	Ref. No.
24 VDC	≤ 0.26 mA, loop	Max 30 VDC	2A @ 30 VDC	A2301 (UL)
