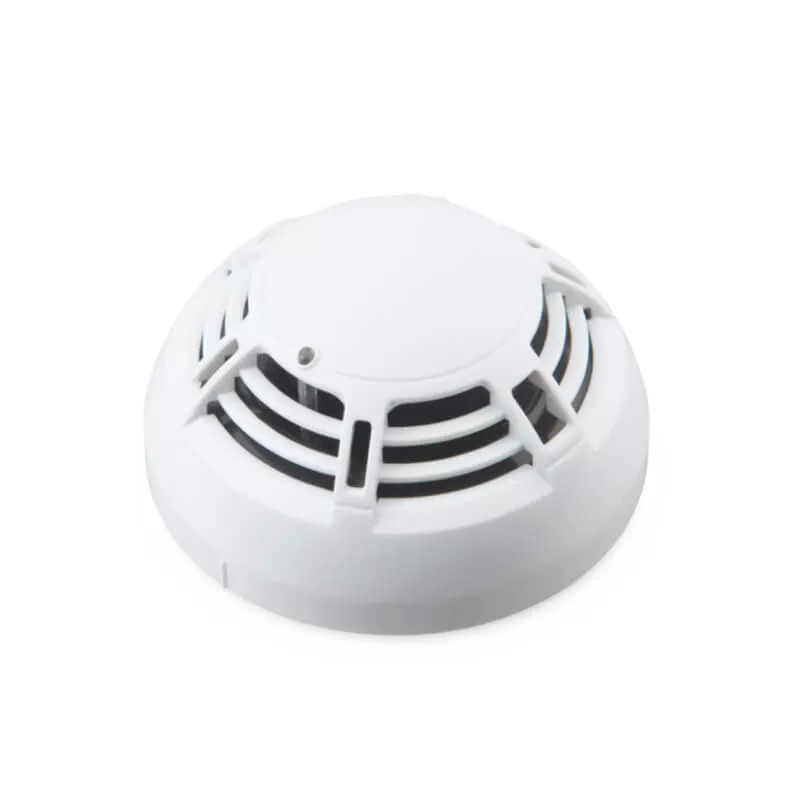

Addressable multi-sensor detector (Smoke and heat detector) is a loop-connected fire detection device. Integrating an infrared photoelectric chamber and a thermistor sensor, it monitors both smoke and heat for fire warning.
Available size
| Operating voltage | Standby current | Smoke sensitivity lever | Heat detection class | Ref. No. |
|---|---|---|---|---|
| 24 VDC | ≤ 0.6 mA | As per standard | A2R | AE1301 (LPCB) |
Note: For heat detection class A2R, it means that the response temperature of the detector is min 54°C to max 70°C, with a rate-of-rise characteristic.
