Addressable manual call point (NFPA 72)

Category Fire alarm system and linkage control (NFPA 72)

Certificate: UL Listed
Standard: UL 38, NFPA 72, NFPA 70
Feature: Addressable, LED indicator, special key to reset
Material: ABS cover, red and white
Temperature: -10°C to 50°C
Humidity: 0% to 95%, non-condensing
Installation: Surface or recessed mounting

Download Addressable manual call point (NFPA 72)

Product Details

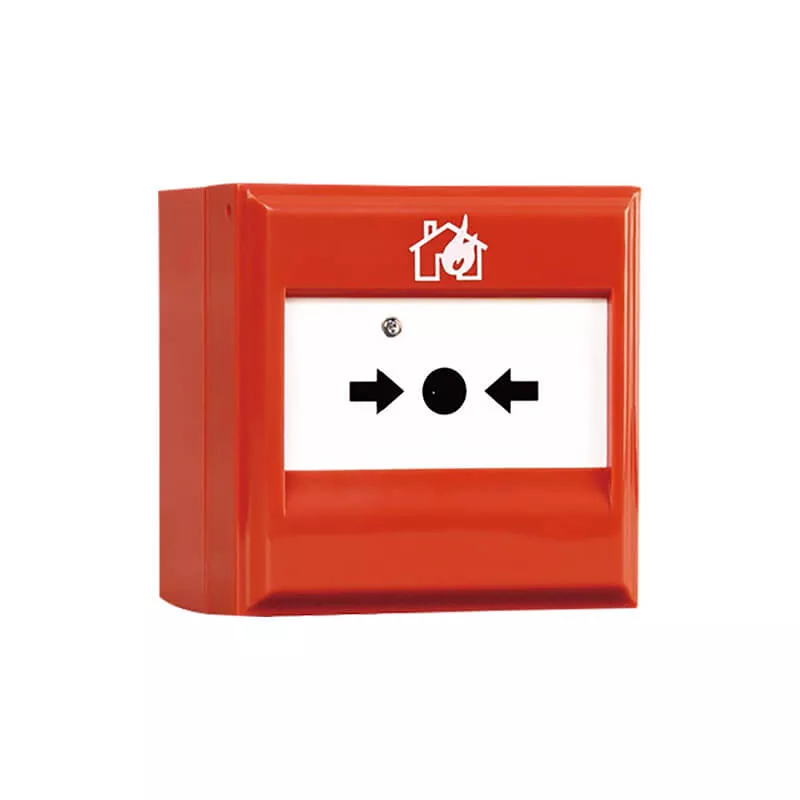

Addressable manual call point incorporates a resettable non-breakable glass in the front face for simple and safe use. It is designed to send alarm signal to control panel when it is pressed manually.

Available size

Operating voltage	Standby current	Manual activation	FIRE marking	Ref. No.
24 VDC	≤ 0.6 mA	Press, single action	/	A1501 (UL)

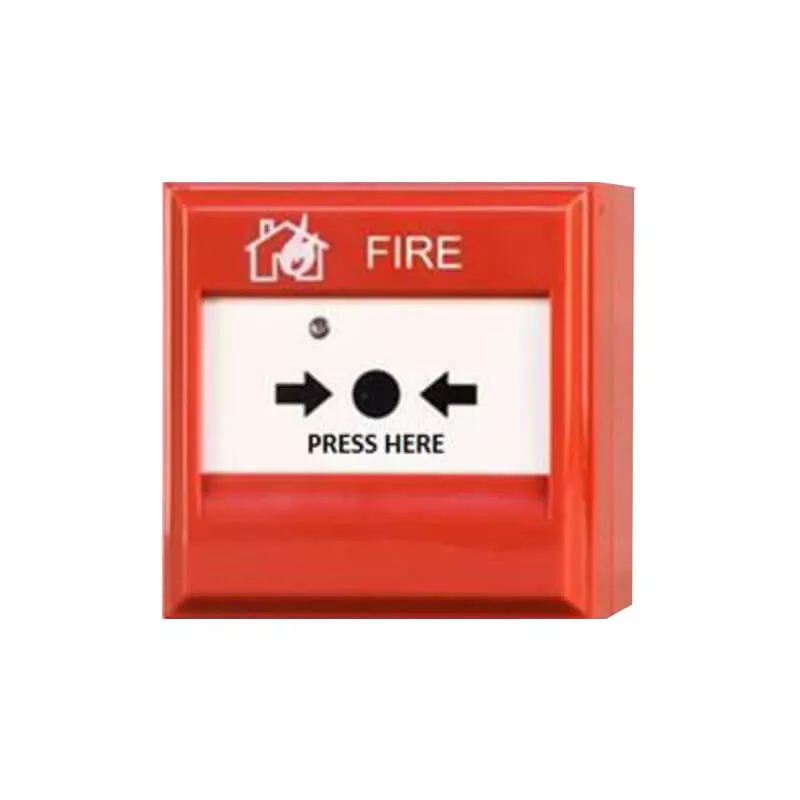

24 VDC	≤ 0.6 mA	Press, single action	Yes	A1502 (UL)
