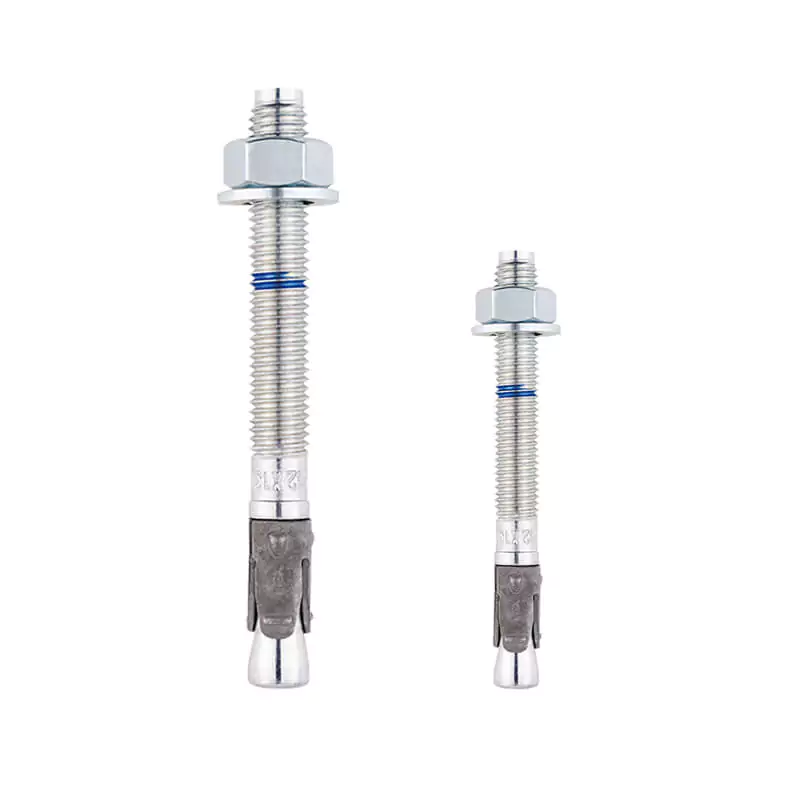

Wedge anchor is a high-strength mechanical expansion anchor designed for concrete and masonry. It consists of a threaded stud with a conical wedge and expansion clip at the base. Tightening the nut pulls the wedge into the clip, forcing it to expand against the hole wall and creating a secure mechanical interlock with excellent tensile and shear load capacity. It is ideal for pipe hangers, sway braces, and other critical structural attachments.
Available size (Imperial)
| Nominal anchor diameter | Length (L, inch) | Allowable load in concrete (lbs) | Compatible pipe size | Ref. No. |
|---|---|---|---|---|
| 3/8″ | 3″ ~ 7″ | 1460 | Up to 4″ / Up to DN100 | P7602 (UL/FM) |
| 1/2″ | 3″ ~ 7″ | 2513 | 5″ to 8″ / DN125 to DN200 | P7603 (UL/FM) |
| 5/8″ | 4″ ~ 10″ | 4216 | 10″ and 12″ / DN250 and DN300 | P7604 (UL/FM) |
| 3/4″ | 4″ ~ 10″ | 5456 | 10″ and 12″ / DN250 and DN300 | P7605 (UL/FM) |
Note: The tension is based on carbon steel material in 2500 psi uncracked concrete.
Available size (Metric)
| Nominal anchor diameter | Length (L, mm) | Max rec. tension in concrete (kN) | Compatible pipe size | Ref. No. |
|---|---|---|---|---|
| M10 | 90 ~ 185 | 8.6 | Up to 4″ / Up to DN100 | P7622 (CE) |
| M12 | 100 ~ 255 | 13.3 | 5″ to 8″ / DN125 to DN200 | P7623 (CE) |
| M16 | 145 ~ 250 | 16.2 | 10″ and 12″ / DN250 and DN300 | P7624 (CE) |
| M20 | 170 ~ 200 | 23.4 | 10″ and 12″ / DN250 and DN300 | P7625 (CE) |
Note: The tension is based on carbon steel material in uncracked concrete.
