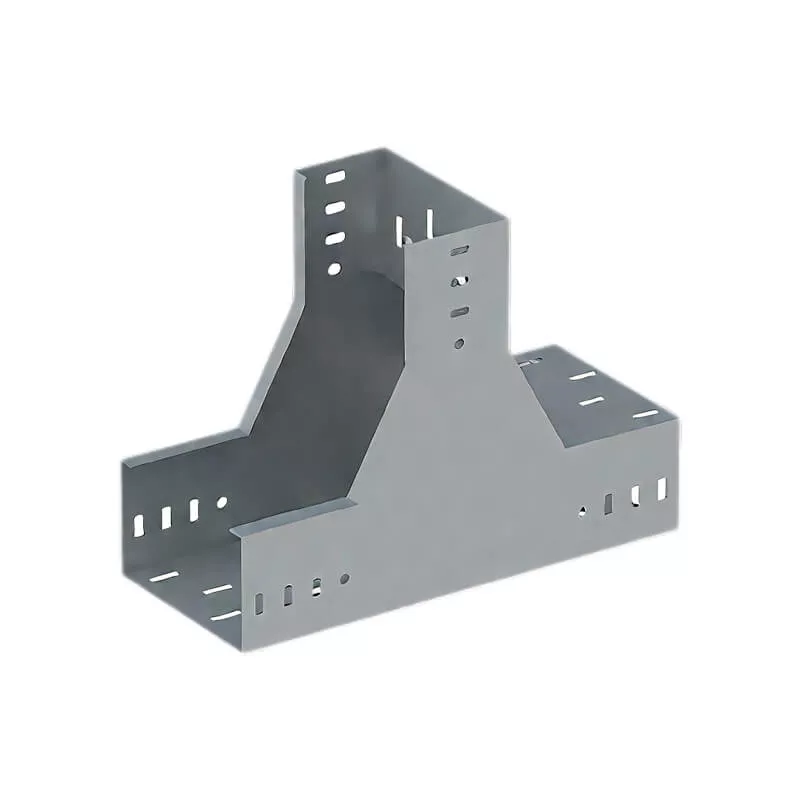

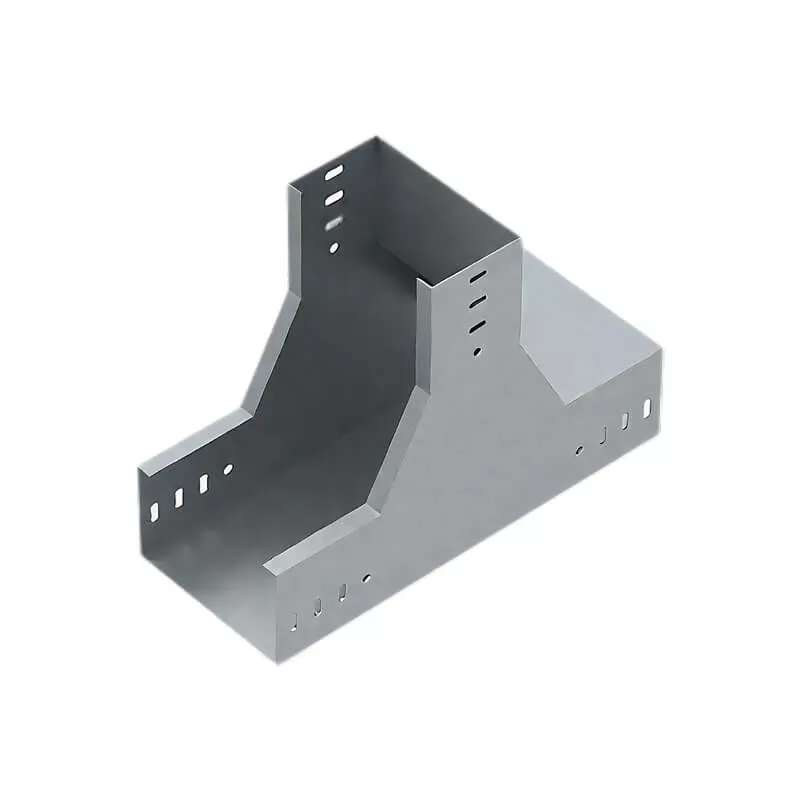

Vertical tee up connects three straight sections of channel cable tray, forming a smooth 90-degree branch in the inside vertical direction (rising transition). This rigid fitting maintains the structural integrity and load capacity of the cable tray system while facilitating cable routing around corners, obstacles, or layout requirements. It ensures reliable support and protection for power, data, and control cables across commercial, industrial, and infrastructure applications.
Available size
| Size | Width (mm) | Height (mm) | Bend radius (mm) | Ref. No. |
|---|---|---|---|---|
| 50 x 50 | 50 | 50 | 100 | C8801 (ISO) |
| 75 x 50 | 75 | 50 | 150 | C8802 (ISO) |
| 75 x 75 | 75 | 75 | 150 | C8803 (ISO) |
| 100 x 50 | 100 | 50 | 150 | C8804 (ISO) |
| 100 x 75 | 100 | 75 | 150 | C8805 (ISO) |
| 100 x 100 | 100 | 100 | 150 | C8806 (ISO) |
| 150 x 50 | 150 | 50 | 150 | C8807 (ISO) |
| 150 x 75 | 150 | 75 | 150 | C8808 (ISO) |
| 150 x 100 | 150 | 100 | 150 | C8809 (ISO) |
| 150 x 150 | 150 | 150 | 150 | C8810 (ISO) |
| 200 x 50 | 200 | 50 | 150 | C8811 (ISO) |
| 200 x 75 | 200 | 75 | 150 | C8812 (ISO) |
| 200 x 100 | 200 | 100 | 150 | C8813 (ISO) |
| 200 x 150 | 200 | 150 | 150 | C8814 (ISO) |
| 200 x 200 | 200 | 200 | 150 | C8815 (ISO) |
Note: Please download our catalog for more available sizes.
