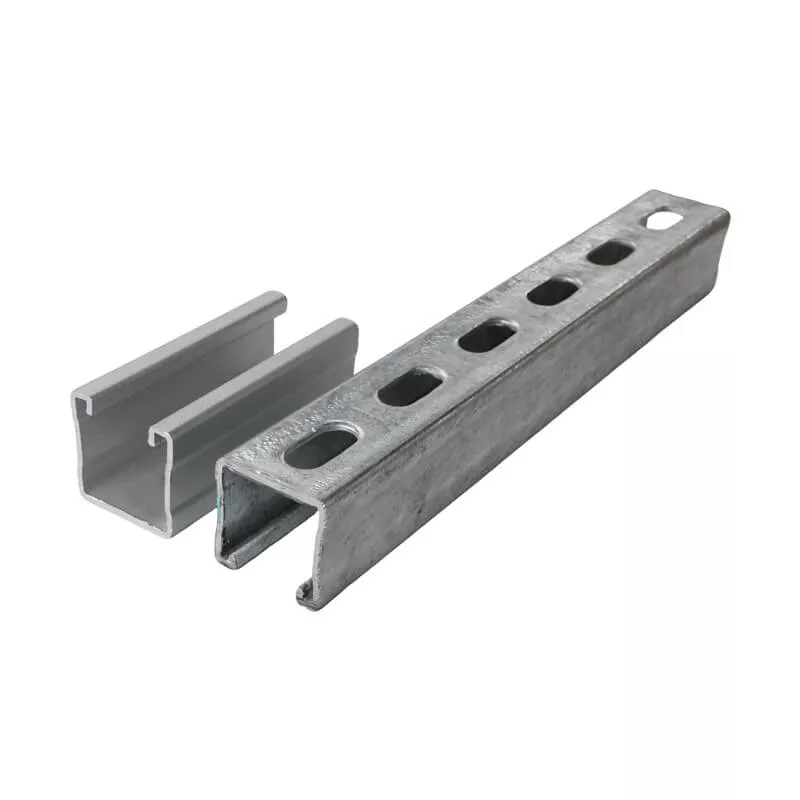

Strut channel is a modular framing system designed to support and mount mechanical and electrical components like piping, conduit, and cable trays. Precision cold-formed from carbon steel, stainless steel, or aluminum, it features a U-shaped profile with inward-curving lips that provide superior rigidity. These lips securely engage spring nuts for fast and weld-free assembly. The system supports easy on-site adjustments, full reusability, and delivers a reliable, cost-effective solution.
Available size
| Type | Back pattern | Dimension (W x H), inch | Dimension (W x H), mm | Ref. No. |
|---|---|---|---|---|
| Single | Solid | 1-5/8″ x 1-5/8″ | 41 x 41 | C9601 (UL) |
| Single | Slotted | 1-5/8″ x 1-5/8″ | 41 x 41 | C9602 (UL) |
| Back-to-back | Solid | 1-5/8″ x 3-1/4″ | 41 x 82 | C9603 (ISO) |
| Back-to-back | Slotted | 1-5/8″ x 3-1/4″ | 41 x 82 | C9604 (ISO) |
| Single | Solid | 1-5/8″ x 13/16″ | 41 x 21 | C9605 (UL) |
| Single | Slotted | 1-5/8″ x 13/16″ | 41 x 21 | C9606 (UL) |
| Back-to-back | Solid | 1-5/8″ x 1-5/8″ | 41 x 41 | C9607 (ISO) |
| Back-to-back | Slotted | 1-5/8″ x 1-5/8″ | 41 x 41 | C9608 (ISO) |
Note: For slotted strut channel, the typical slot dimensions are A x B = 1-1/8″ (29 mm) long x 9/16″ (14 mm) wide, with a center-to-center spacing C = 2″ (51 mm).
