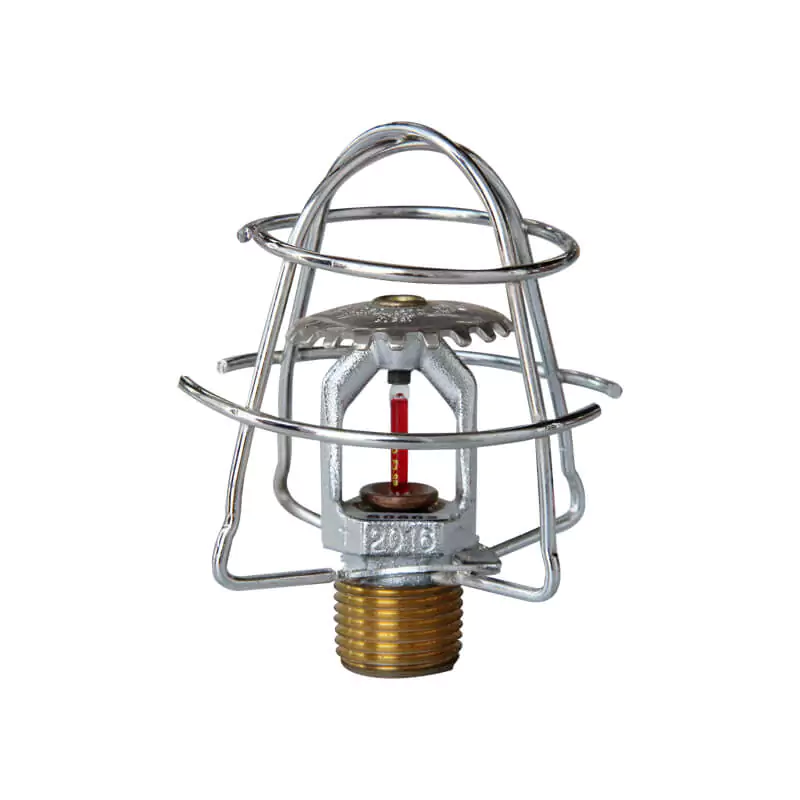

Sprinkler guard and shield is used with special fire sprinklers that may be located in areas that make them susceptible to mechanical or physical damage. And shield is for use in storage racks or beneath grated mezzanine, or other areas requiring the fire sprinklers to be shielded from possible discharge from fire sprinklers above.
|Type||Structure||Sprinkler capacity||Ref. No.|
|Sprinkler guard||Steel wire||K5.6||S9701 (UL/FM)|
|Sprinkler guard||Steel wire||K8.0 / K11.2||S9702 (UL/FM)|
|Sprinkler guard||Steel wire||K22.4 / K25.2||S9703 (FM)|
|Sprinkler guard and shield||Steel wire + plate||K5.6||S9704 (UL/FM)|
|Sprinkler guard and shield||Steel wire + plate||K8.0 / K11.2||S9705 (UL/FM)|
