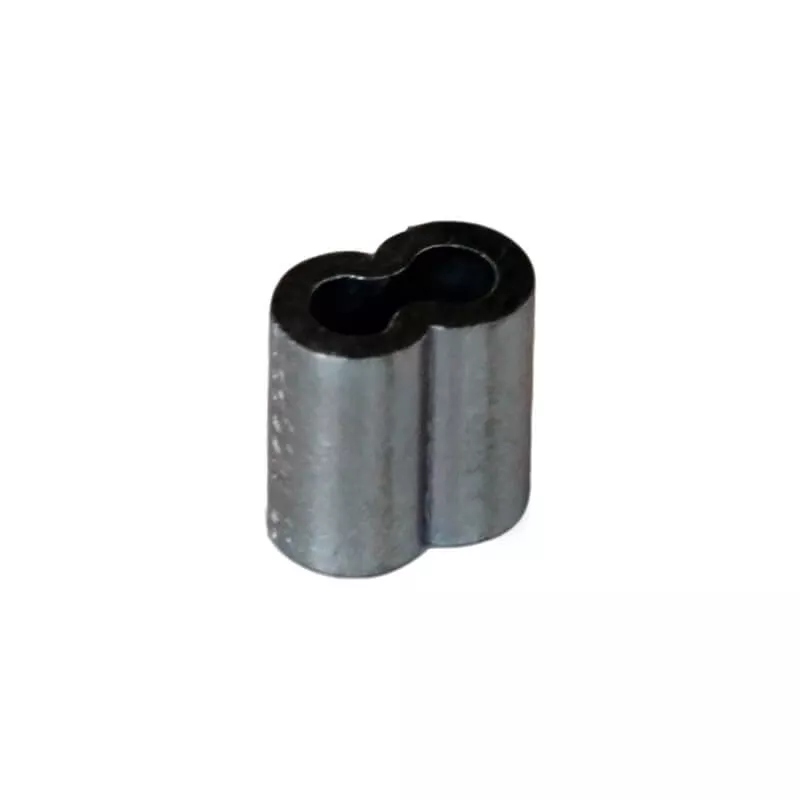

Seismic oval swaging sleeve from TPMC is a critical component for non-rigid seismic sway brace systems. This sleeve features an oval cross-section that allows two cable segments to sit side by side, enabling secure loop termination.
Using a manual swaging tool, the sleeve is compressed—permanently deforming around the wire rope strands to create a high-strength mechanical lock that withstands tension forces during seismic events or other dynamic building movements.
Available sizes
| For cable size | Material | Color | Manual swaging tool | Ref. No. |
|---|---|---|---|---|
| 3/32″ (2.4 mm) | Copper | Bright zinc | Steel | P7701 (ISO) |
| 1/8″ (3.2 mm) | Copper | Bright zinc | Steel | P7702 (ISO) |
| 3/16″ (4.8 mm) | Copper | Bright zinc | Steel | P7703 (ISO) |
Note:
1. Compatible with a manual swaging tool (sold separately).
2. For 3/32″ and 1/8″ cable: two (2) side-by-side swages are required. For 3/16″ cable, three (3) side-by-side swages are required.
