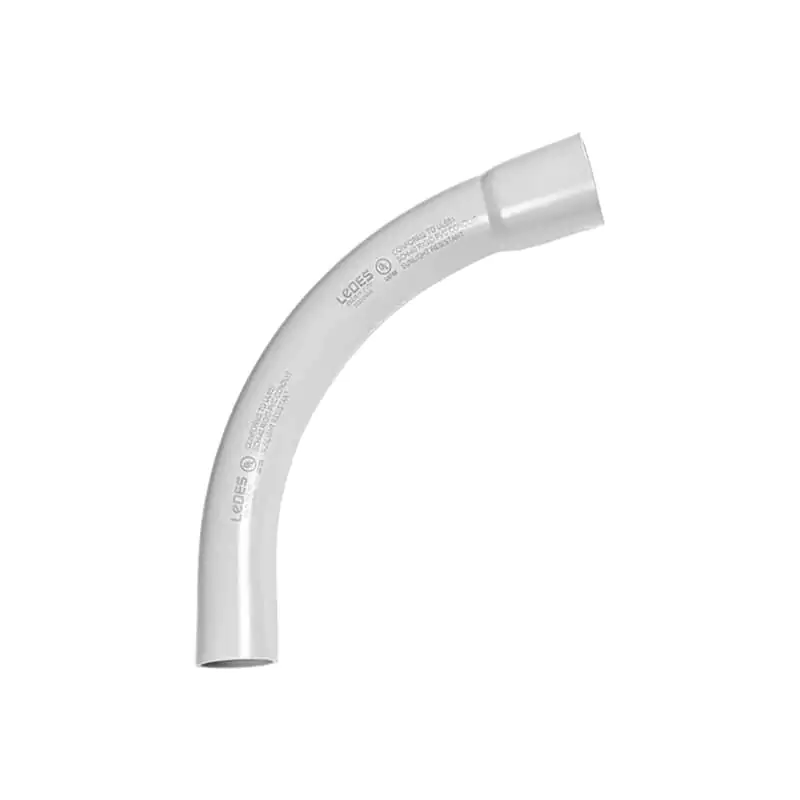

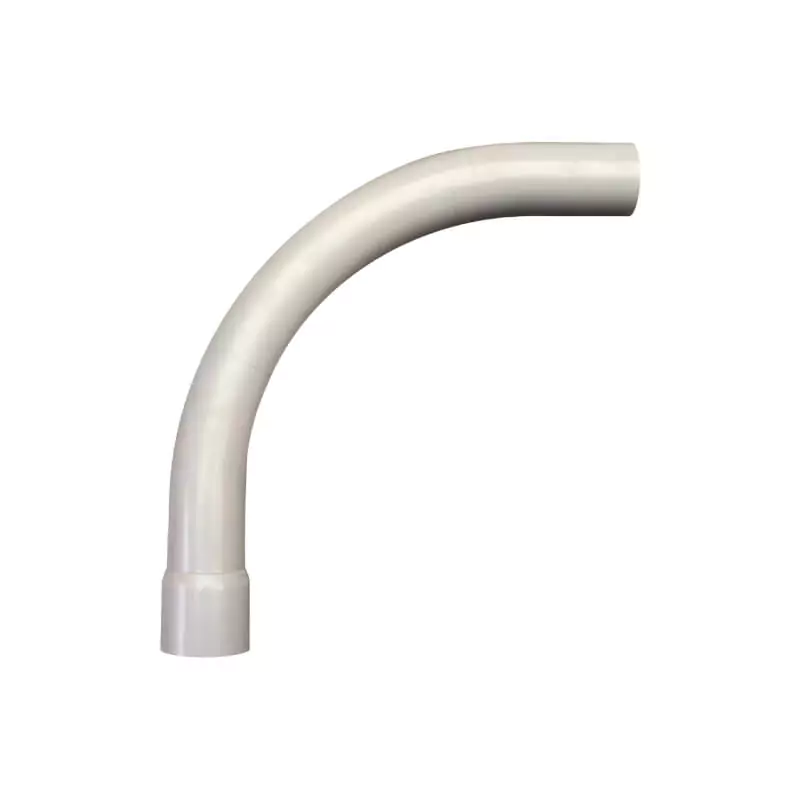

Rigid PVC conduit elbow is made from the same material as rigid PVC conduit, to change the direction of the conduit run. It is used to route electrical wiring around corners or obstacles, follow specific pathways, and maintain continuous protection for wires.
Available size (Schedule 40)
| Trade size | OD (mm) | Thickness (mm) | Bending angle | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 21.34 | 2.77 | 90° / 45° | C2201 (UL) |
| 3/4″ | 26.67 | 2.87 | 90° / 45° | C2202 (UL) |
| 1″ | 33.40 | 3.38 | 90° / 45° | C2203 (UL) |
| 1-1/4″ | 42.16 | 3.56 | 90° / 45° | C2204 (UL) |
| 1-1/2″ | 48.26 | 3.68 | 90° / 45° | C2205 (UL) |
| 2″ | 60.33 | 3.91 | 90° / 45° | C2206 (UL) |
| 2-1/2″ | 73.03 | 5.16 | 90° / 45° | C2207 (UL) |
| 3″ | 88.90 | 5.49 | 90° / 45° | C2208 (UL) |
| 4″ | 114.30 | 6.02 | 90° / 45° | C2209 (UL) |
| 5″ | 141.30 | 6.55 | 90° / 45° | C2210 (UL) |
| 6″ | 168.28 | 7.11 | 90° / 45° | C2211 (UL) |
Available size (Schedule 80)
| Trade size | OD (mm) | Thickness (mm) | Bending angle | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 21.34 | 3.73 | 90° / 45° | C2221 (UL) |
| 3/4″ | 26.67 | 3.91 | 90° / 45° | C2222 (UL) |
| 1″ | 33.40 | 4.55 | 90° / 45° | C2223 (UL) |
| 1-1/4″ | 42.16 | 4.85 | 90° / 45° | C2224 (UL) |
| 1-1/2″ | 48.26 | 5.08 | 90° / 45° | C2225 (UL) |
| 2″ | 60.33 | 5.54 | 90° / 45° | C2226 (UL) |
| 2-1/2″ | 73.03 | 7.01 | 90° / 45° | C2227 (UL) |
| 3″ | 88.90 | 7.62 | 90° / 45° | C2228 (UL) |
| 4″ | 114.30 | 8.56 | 90° / 45° | C2229 (UL) |
| 5″ | 141.30 | 9.53 | 90° / 45° | C2230 (UL) |
| 6″ | 168.28 | 10.97 | 90° / 45° | C2231 (UL) |
