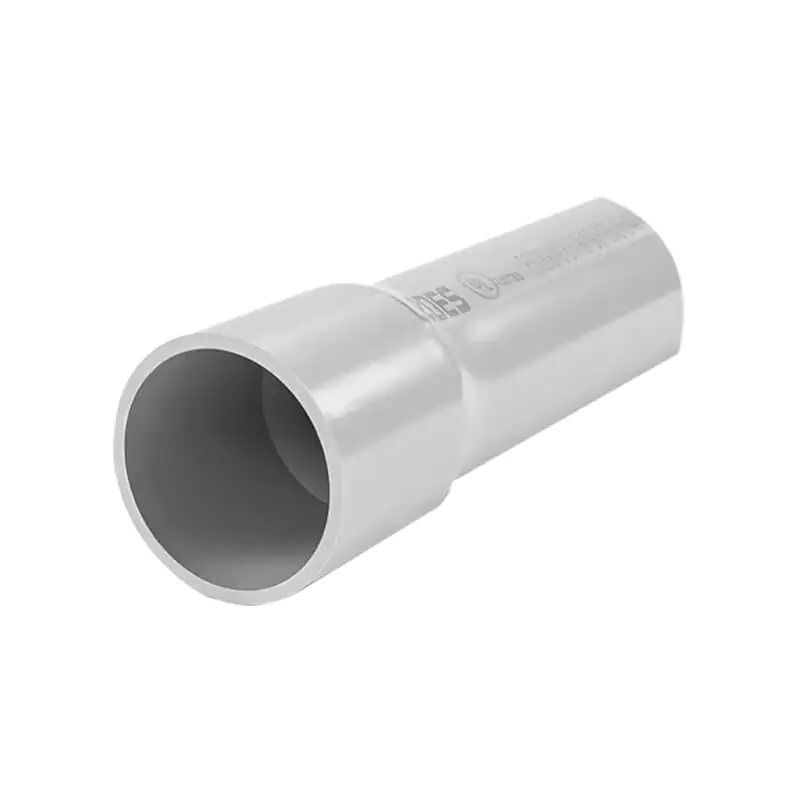

Rigid PVC conduit is a nonmetallic raceway for protecting electrical wires in demanding underground or aboveground installations. Compared to metallic alternatives, rigid PVC conduit offers superior corrosion resistance, excellent electrical insulation, and significantly lighter weight which simplifies handling and installation.
Available size (Schedule 40)
| Trade size | OD (mm) | Thickness Schedule 40 (mm) | Length (ft) | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 21.34 | 2.77 | 10 / 20 | C2101 (UL) |
| 3/4″ | 26.67 | 2.87 | 10 / 20 | C2102 (UL) |
| 1″ | 33.40 | 3.38 | 10 / 20 | C2103 (UL) |
| 1-1/4″ | 42.16 | 3.56 | 10 / 20 | C2104 (UL) |
| 1-1/2″ | 48.26 | 3.68 | 10 / 20 | C2105 (UL) |
| 2″ | 60.33 | 3.91 | 10 / 20 | C2106 (UL) |
| 2-1/2″ | 73.03 | 5.16 | 10 / 20 | C2107 (UL) |
| 3″ | 88.90 | 5.49 | 10 / 20 | C2108 (UL) |
| 4″ | 114.30 | 6.02 | 10 / 20 | C2109 (UL) |
| 5″ | 141.30 | 6.55 | 10 / 20 | C2110 (UL) |
| 6″ | 168.28 | 7.11 | 10 / 20 | C2111 (UL) |
Available size (Schedule 80)
| Trade size | OD (mm) | Thickness Schedule 80 (mm) | Length (ft) | Ref. No. |
|---|---|---|---|---|
| 1/2″ | 21.34 | 3.73 | 10 / 20 | C2121 (UL) |
| 3/4″ | 26.67 | 3.91 | 10 / 20 | C2122 (UL) |
| 1″ | 33.40 | 4.55 | 10 / 20 | C2123 (UL) |
| 1-1/4″ | 42.16 | 4.85 | 10 / 20 | C2124 (UL) |
| 1-1/2″ | 48.26 | 5.08 | 10 / 20 | C2125 (UL) |
| 2″ | 60.33 | 5.54 | 10 / 20 | C2126 (UL) |
| 2-1/2″ | 73.03 | 7.01 | 10 / 20 | C2127 (UL) |
| 3″ | 88.90 | 7.62 | 10 / 20 | C2128 (UL) |
| 4″ | 114.30 | 8.56 | 10 / 20 | C2129 (UL) |
| 5″ | 141.30 | 9.53 | 10 / 20 | C2130 (UL) |
| 6″ | 168.28 | 10.97 | 10 / 20 | C2131 (UL) |
