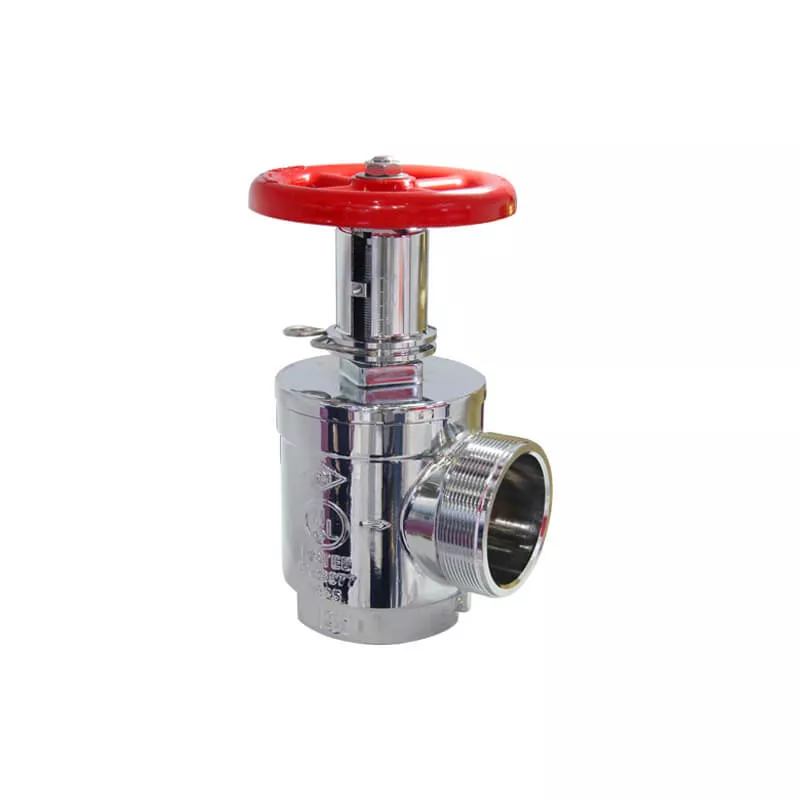

Pressure restricting angle valve (Spring clip)

Pressure restricting angle valve (Spring clip)

  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 1468
  • Function: FDC outlet, or hose rack assembly
  • W. pressure: Max inlet 175 psi
  • Surface: Rough / polished / chrome plated

Product Details

Pressure restricting angle valve (Spring clip) is shut off valve, as well as field adjustable flow throttling valve, designed to reduce downstream water pressure under flowing condition. It is equipped with spring clip to control flow and pressure, and the spring clip can be removed for full flow.

Available size

Size Pattern Outlet Ref. No.
1-1/2″ Angle 1-1/2″ NH, M F3201
1-1/2″ Angle 1-1/2″ NPT, F F3202
2-1/2″ Angle 2-1/2″ NH, M F3203
2-1/2″ Angle 2-1/2″ NPT, F F3204

Note:
1. 1-1/2″ valve settings range from 1 to 15, used to restrict outlet residual pressure 65 ~ 100 psi at 100 gpm for Class II system.
2. 2-1/2″ valve settings range from 1 to 20, used to restrict outlet residual pressure 100 ~ 175 psi at 250 gpm for Class I and Class III systems.
3. The working pressure is 175 psi by UL listed, and 300 psi by FM approved.
