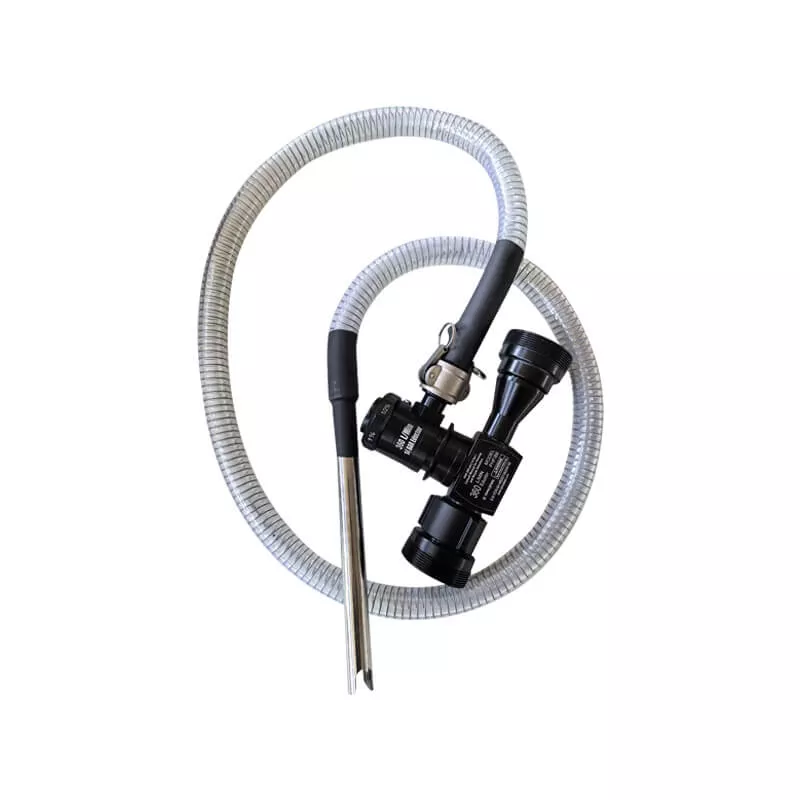

Portable inline inductor introduces a metered flow of foam concentrate into a pressurized water stream. It is used in the manual firefighting operation to provide a simple and reliable method of proportioning in constant flow applications.
Available size (Source 1 with FM)
| Size | Connection | Material | Flow (gpm) | Ref. No. |
|---|---|---|---|---|
| 2-1/2″ | BS336 | SS / bronze | 59 | B1001 (FM) |
| 2-1/2″ | BS336 | SS / bronze | 59 | B1002 (FM) |
| 2-1/2″ | BS336 | SS / bronze | 119 | B1003 (FM)* |
| 2-1/2″ | BS336 | SS / bronze | 119 | B1004 (FM) |
Note: *For Ref No. B1003, it is FM at foam concentrate AFFF 3%, and ISO at foam concentrate AR-AFFF 3×3%.
Available size (Source 2 with UL)
| Size | Connection | Material | Flow (gpm) | Ref. No. |
|---|---|---|---|---|
| 2-1/2″ | BS336 | AL / bronze | 35 ~ 55 | B1021 (UL) |
| 2-1/2″ | BS336 | AL / bronze | 35 ~ 55 | B1022 (UL) |
| 2-1/2″ | BS336 | AL / bronze | 70 ~ 109 | B1023 (UL) |
| 2-1/2″ | BS336 | AL / bronze | 70 ~ 109 | B1024 (ISO) |
| 2-1/2″ | BS336 | AL / bronze | 238 @ 145psi | B1025 (ISO) |
Available size (Source 3 with ISO)
| Size | Connection | Material | Flow (gpm) | Ref. No. |
|---|---|---|---|---|
| 1-1/2″ | BS336 / Storz / NH | AL / brass | 60 | B1031 (ISO) |
| 1-1/2″ | BS336 / Storz / NH | AL / brass | 95 | B1032 (ISO) |
| 1-1/2″ | BS336 / Storz / NH | AL / brass | 125 | B1033 (ISO) |
| 2-1/2″ x 1-1/2″ | BS336 / Storz / NH | AL / brass | 60 | B1034 (ISO) |
| 2-1/2″ x 1-1/2″ | BS336 / Storz / NH | AL / brass | 95 | B1035 (ISO) |
| 2-1/2″ x 1-1/2″ | BS336 / Storz / NH | AL / brass | 125 | B1036 (ISO) |
| 2-1/2″ | BS336 / Storz / NH | AL / brass | 60 | B1037 (ISO) |
| 2-1/2″ | BS336 / Storz / NH | AL / brass | 95 | B1038 (ISO) |
| 2-1/2″ | BS336 / Storz / NH | AL / brass | 125 | B1039 (ISO) |
| 2-1/2″ | BS336 / Storz / NH | AL / brass | 150 | B1040 (ISO) |
| 2-1/2″ | BS336 / Storz / NH | AL / brass | 200 | B1041 (ISO) |
| 2-1/2″ | BS336 / Storz / NH | AL / brass | 250 | B1042 (ISO) |
Note:
1. It contains an easy read metering dial with adjustable settings 0.25% to 6%.
2. For Ref No. B1031 to B1036, it is also available with a control handle allowing the operator to easily change from foam to water line without shutting down.
