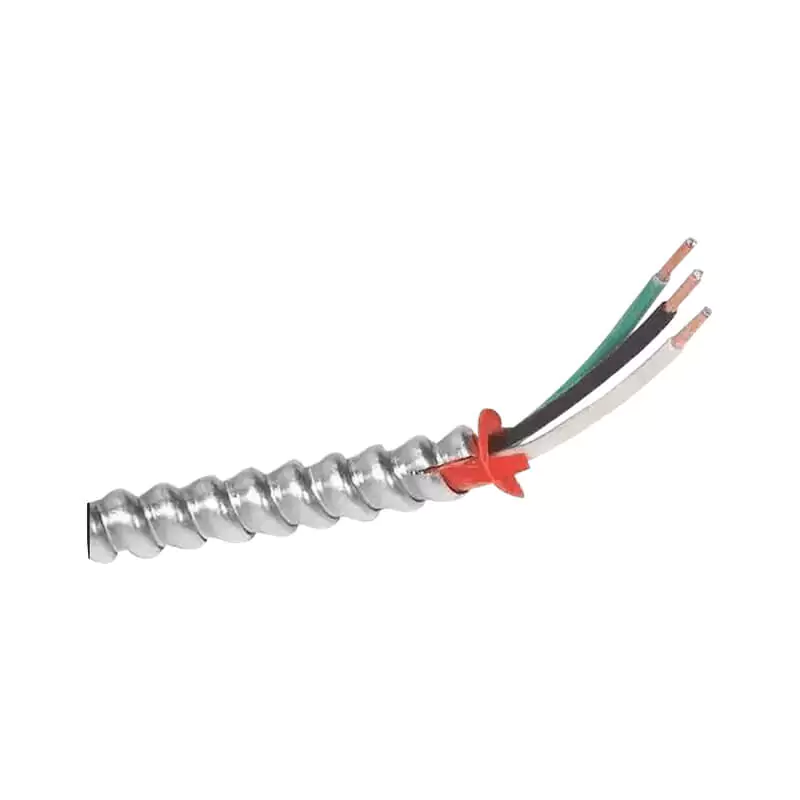

Metal-clad (MC) cable

Category Fire cable and EMT conduit

Certificate: UL Listed
Standard: UL 83, UL 1569, NPFA 70
Temperature: 90°C dry only for THHN, 90°C wet or dry for THWN-2
Voltage: 600 V
Compliance: VW-1 vertical wire flame test, FT4/IEEE 1202 vertical tray flame test
Application: Indoor / outdoor commercial and Industrial wiring

Product Details

Metal-Clad (MC) cable is a factory-assembled electrical cable featuring interlocked metal armor, THHN/THWN-2 insulated conductors, and a dedicated grounding wire. Engineered for power, lighting, control, and signaling circuits in dry, damp, or wet locations, it delivers robust mechanical protection, electrical safety compliance, and conduit-free installation efficiency.

Available size (Solid conductor)

Conductor	Grounding	Approx. OD	Max DCR	Ref. No.
Conductor	Grounding	mm	20°C, Ω/km	Ref. No.
14 AWG x 2C, solid	14 AWG x 1	11.6	8.5	C0701
14 AWG x 3C, solid	14 AWG x 1	12.3	8.5	C0702
14 AWG x 4C, solid	14 AWG x 1	13.1	8.5	C0703
12 AWG x 2C, solid	12 AWG x 1	11.9	5.3	C0704
12 AWG x 3C, solid	12 AWG x 1	12.7	5.3	C0705
12 AWG x 4C, solid	12 AWG x 1	13.6	5.3	C0706
10 AWG x 2C, solid	10 AWG x 1	13.6	3.3	C0707
10 AWG x 3C, solid	10 AWG x 1	14.7	3.3	C0708
10 AWG x 4C, solid	10 AWG x 1	15.8	3.3	C0709

Available size (Stranded conductor)

Conductor	Grounding	Approx. OD	Max DCR	Ref. No.
Conductor	Grounding	mm	20°C, Ω/km	Ref. No.
8 AWG x 2C, stranded	10 AWG x 1	17.1	2.1	C0721 (UL)
8 AWG x 3C, stranded	10 AWG x 1	17.9	2.1	C0722 (UL)
8 AWG x 4C, stranded	10 AWG x 1	19.1	2.1	C0723 (UL)
6 AWG x 2C, stranded	10 AWG x 1	18.9	1.4	C0724 (UL)
6 AWG x 3C, stranded	10 AWG x 1	19.9	1.4	C0725 (UL)
6 AWG x 4C, stranded	10 AWG x 1	21.9	1.4	C0726 (UL)
4 AWG x 2C, stranded	8 AWG x 1	24.3	0.9	C0727 (UL)
4 AWG x 3C, stranded	8 AWG x 1	27.5	0.9	C0728 (UL)
4 AWG x 4C, stranded	8 AWG x 1	28.9	0.9	C0729 (UL)
