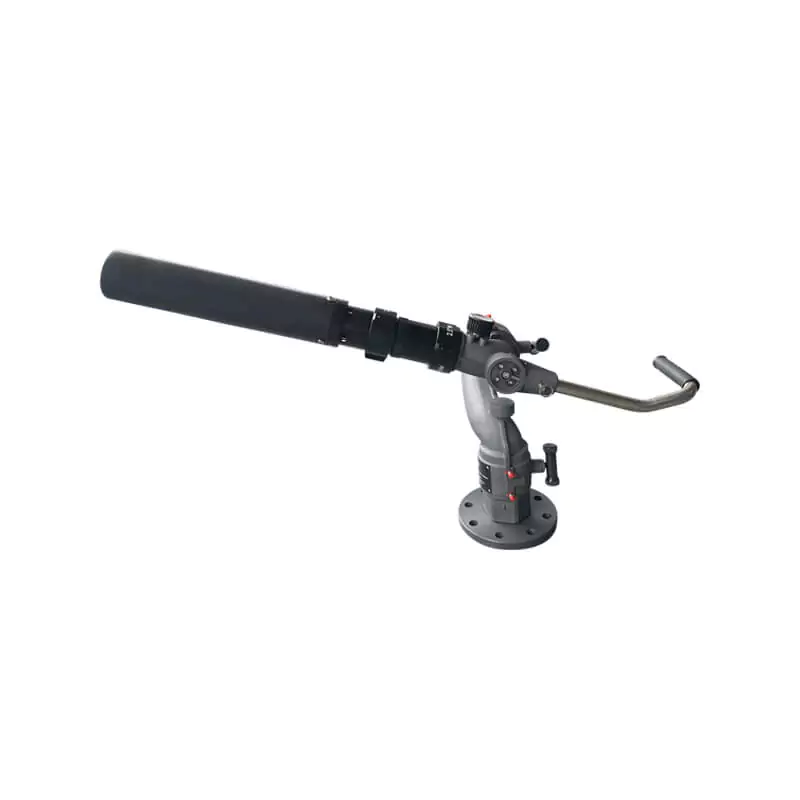

Manual operated lever control foam monitor (Air-aspirating nozzle)

Manual operated lever control foam monitor (Air-aspirating nozzle)

Category
  • Certificate: ISO
  • Standard: NFPA 11, UL 162, GB 19156
  • Connection: Flanged as ANSI Class 150, EN 1092 PN16, etc.
  • Feature: Lever control, straight jet
  • Rotation: 360° horizontal
  • Elevation: 75° above + 45° below
  • W. pressure: 200 psi
  • Surface: Hard anodized or red FBE

Product Details

Manual operated lever control foam monitor (Air-aspirating nozzle) is designed with large clear waterway to deliver a powerful and far-reaching foam stream. It is mounted in fixed installation or on vehicle.

Available size

Flow @ 100 psi (gpm) Material Base inlet Nozzle type Ref. No.
380 AL 3″ or 4″ FLG Self-inducting B4101 (ISO)
507 AL 3″ or 4″ FLG Self-inducting B4102 (ISO)
634 AL 3″ or 4″ FLG Self-inducting B4103 (ISO)
380 AL 3″ or 4″ FLG / B4104 (ISO)
507 AL 3″ or 4″ FLG / B4105 (ISO)
634 AL 3″ or 4″ FLG / B4106 (ISO)
