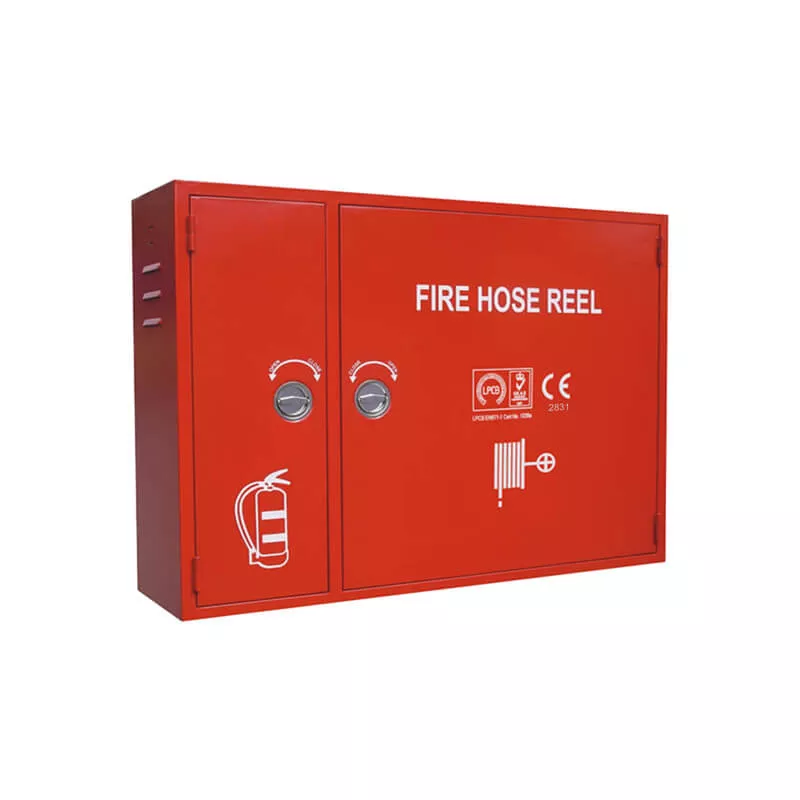

Horizontal two compartment fire cabinet

Horizontal two compartment fire cabinet

  • Certificate: ISO
  • Standard: Refer to BS 5041
  • Capacity: Fire hose reel + extinguisher
  • Mounting: Wall surface / recessed
  • Surface: Red powder coating / bright SS

Product Details

Horizontal two compartment fire cabinet has dual compartment for protecting both hose reel and fire extinguisher. The cabinet is surface or recess mounted in a wall, with compact design for saving space and easy access for operation.

Available size

Content Capacity Dimension W x H x D (mm) Ref. No.
Swing hose reel + dry powder extinguisher 3/4″ x 30m + 1 x 6 kg 1050 x 800 x 250 FE9601
Swing hose reel + dry powder extinguisher 1″ x 30m + 1 x 6 kg 1050 x 800 x 280 FE9602
Layflat hose with branchpipe 2.5″ x 30m, 2 sets 1163 x 560 x 300 FE9603

Note:
1. For recessed type, it contains projection trim on the external face of cabinet with width 38mm.
2. The flank has knockout holes for easy connection to the pipeline.
3. Cabinets can be LPCB approved if they are with LPCB approved fire hose reels.
4. Other customized dimensions are also available.
