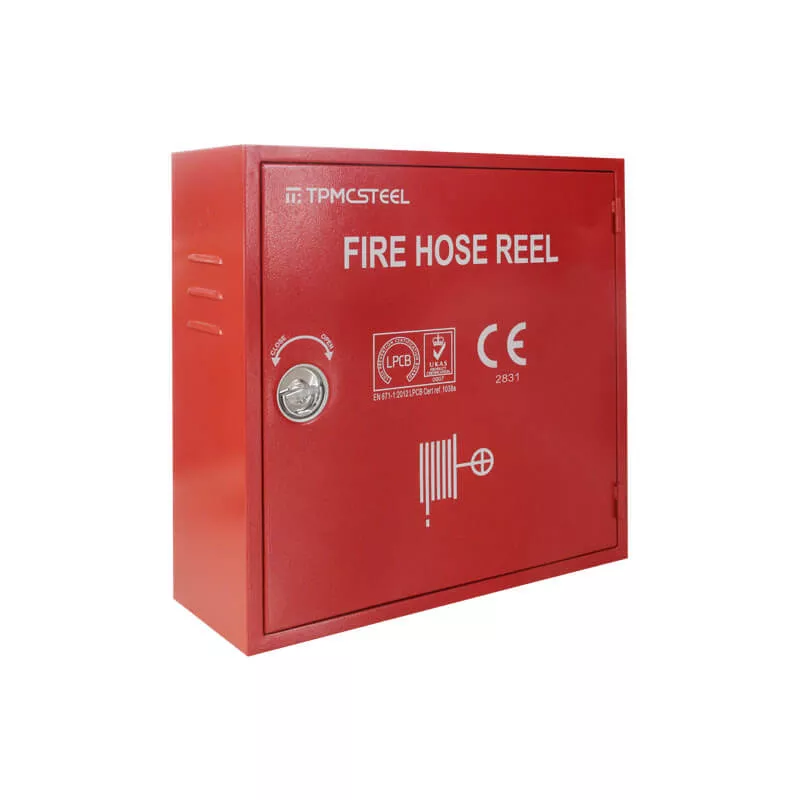

Fire hose reel cabinet protects fire hose reel from contamination & damage. The cabinet is surface or recess mounted in a wall, with compact design for saving space and easy access for operation.
Available size
| Hose reel type | Capacity | Dimension W x H x D (mm) | Ref. No. |
|---|---|---|---|
| Fixed, manual or auto | 3/4″ x 30m | 650 x 750 x 245 | FE9401 |
| Fixed, manual or auto | 1″ x 30m | 650 x 750 x 285 | FE9402 |
| Swinging arm, manual or auto | 3/4″ x 30m | 700 x 700 x 250 | FE9403 |
| Swinging arm, manual or auto | 1″ x 30m | 700 x 700 x 270 | FE9404 |
| Swinging arm, manual or auto | 3/4″ x 45m | 750 x 750 x 270 | FE9405 |
| Swinging arm, manual or auto | 1″ x 45m | 780 x 780 x 310 | FE9406 |
| Swinging pipe, manual or auto | 3/4″ x 30m | 720 x 720 x 330 | FE9407 |
| Swinging pipe, manual or auto | 1″ x 30m | 760 x 750 x 330 | FE9408 |
| Fixed or Swinging | 3/4″ x 30m / 1″ x 30m | 800 x 800 x 280 | FE9409 |
| Fixed or Swinging | 3/4″ x 30m / 1″ x 30m | 840 x 840 x 300 | FE9410 |
Note:
1. For recessed type, it contains projection trim on the external face of cabinet with width 38mm.
2. The flank has knockout holes for easy connection to the pipeline.
3. Cabinets can be LPCB approved if they are with LPCB approved fire hose reels.
4. Other customized dimensions are also available.
