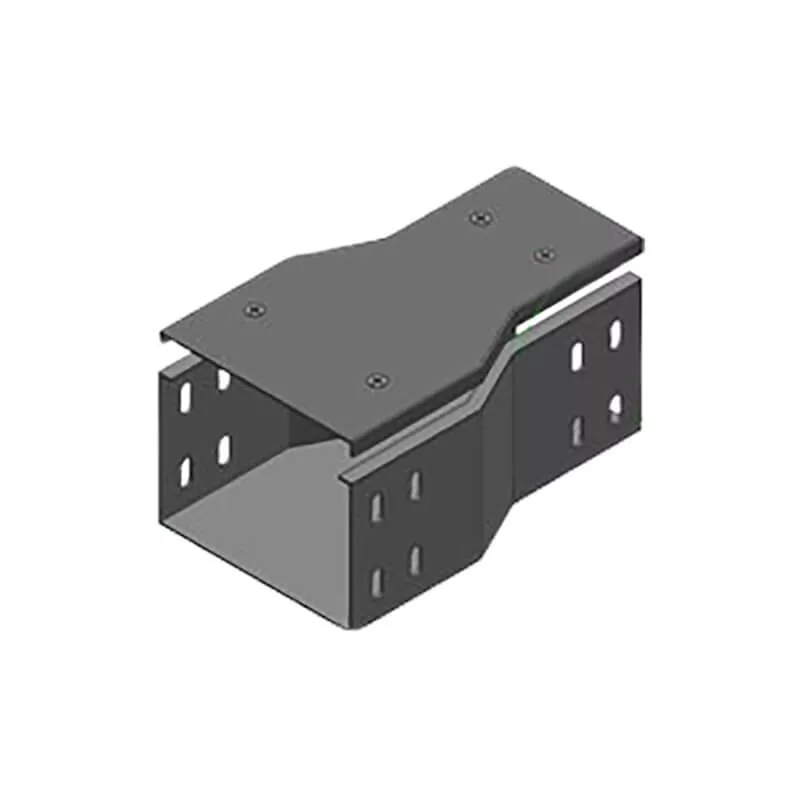

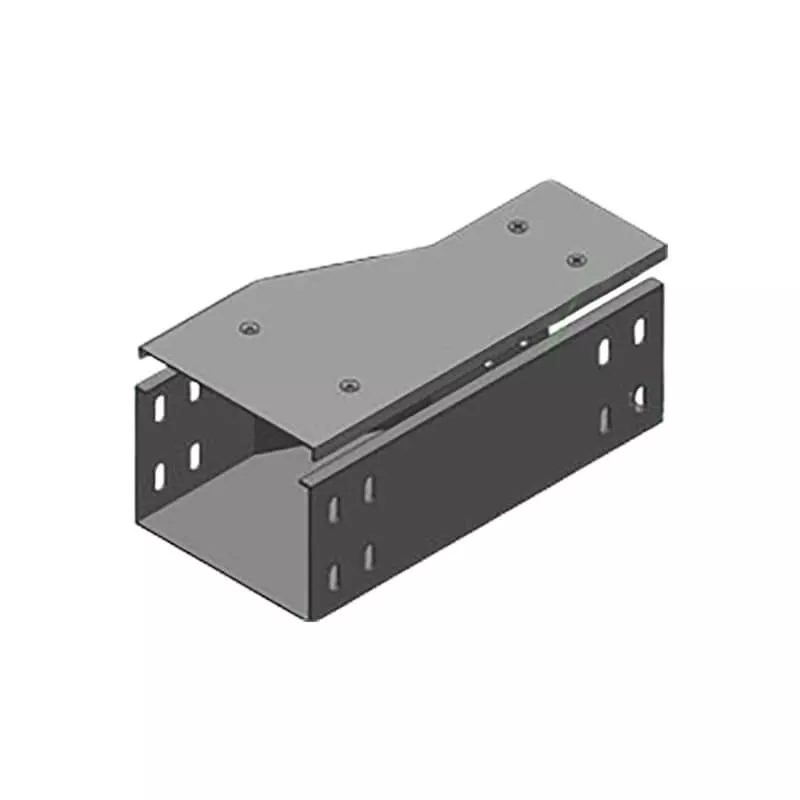

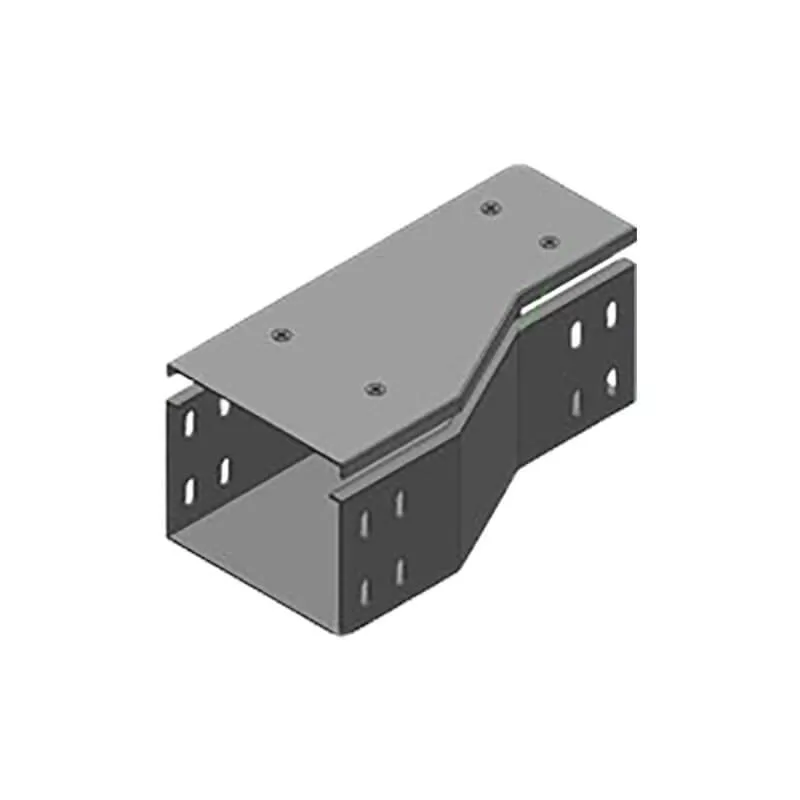

Horizontal reducer connects two straight sections of channel cable tray with different widths, providing a smooth, straight transition in the horizontal plane. This rigid fitting maintains the structural integrity and load capacity of the cable tray system while accommodating changes in tray size along the run. It ensures reliable support and protection for power, data, and control cables across commercial, industrial, and infrastructure applications.
Available size
| Size | Width 1 (mm) | Width 2 (mm) | Height (mm) | Ref. No. |
|---|---|---|---|---|
| 75 x 50 | 75 | 50 | 50 | C8901 (ISO) |
| 100 x 50 | 100 | 50 | 50 | C8902 (ISO) |
| 100 x 75 | 100 | 75 | 75 | C8903 (ISO) |
| 150 x 50 | 150 | 50 | 50 | C8904 (ISO) |
| 150 x 75 | 150 | 75 | 75 | C8905 (ISO) |
| 150 x 100 | 150 | 100 | 100 | C8906 (ISO) |
| 200 x 75 | 200 | 75 | 75 | C8907 (ISO) |
| 200 x 100 | 200 | 100 | 100 | C8908 (ISO) |
| 200 x 150 | 200 | 150 | 150 | C8909 (ISO) |
| 300 x 100 | 300 | 100 | 100 | C8910 (ISO) |
| 300 x 150 | 300 | 150 | 150 | C8911 (ISO) |
| 300 x 200 | 300 | 200 | 200 | C8912 (ISO) |
| 400 x 100 | 400 | 100 | 100 | C8913 (ISO) |
| 400 x 150 | 400 | 150 | 150 | C8914 (ISO) |
| 400 x 200 | 400 | 200 | 200 | C8915 (ISO) |
Note: Please download our catalog for more available sizes.
