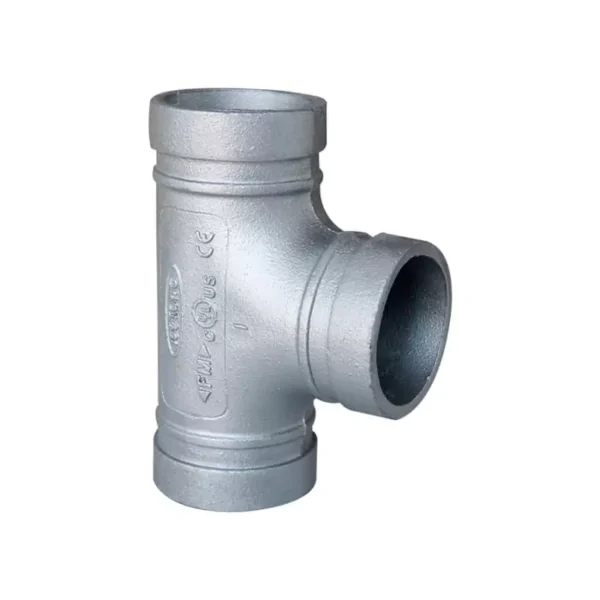

Grooved straight tee (Equal tee)

Grooved straight tee (Equal tee)

Category
  • Certificate: UL Listed / FM Approved
  • Standard: ANSI / UL 213C
  • Material: Ductile iron ASTM A536, 65-45-12
  • Type: Short / Standard
  • Rated pressure: ≥ 175 psi (1.21 MPa)
  • Surface: Red painting / hot dip galvanized

Product Details

Grooved straight tee (Equal tee) has a T shape to get its name. The branch outlet is the same size as the main outlet, and it is used to create a branch pipeline to 90 degree direction.

Available size

Size Short radius (mm) Standard radius (mm) Ref. No.
1″ / DN25 / 33.7mm 57 57 G0501
1-1/4″ / DN32 / 42.4mm 60 70 G0502
1-1/2″ / DN40 / 48.3mm 60 70 G0503
2″ / DN50 / 60.3mm 70 83 G0504
2-1/2″ / DN65 / 73.0mm 76 95 G0505
2-1/2″ / DN65 / 76.1mm 76 95 G0506
3″ / DN80 / 88.9mm 86 108 G0507
4″ / DN100 / 114.3mm 101 127 G0508
5″ / DN125 / 139.7mm 124 140 G0509
5″ / DN125 / 141.3mm 124 140 G0510
6″ / DN150 / 165.1mm 140 165 G0511
6″ / DN150 / 168.3mm 140 165 G0512
8″ / DN200 / 219.1mm 175 197 G0513
10″ / DN250 / 273.0mm 215 229 G0514
12″ / DN300 / 323.9mm 245 254 G0515
14″ / DN350 / 355.6mm / 280 G0516 (ISO)
